Brightlink BL-VT Pro LED Display Vacuum Tool - Effortless Front Maintenance for LED Video Walls
$249.00 USD
Features

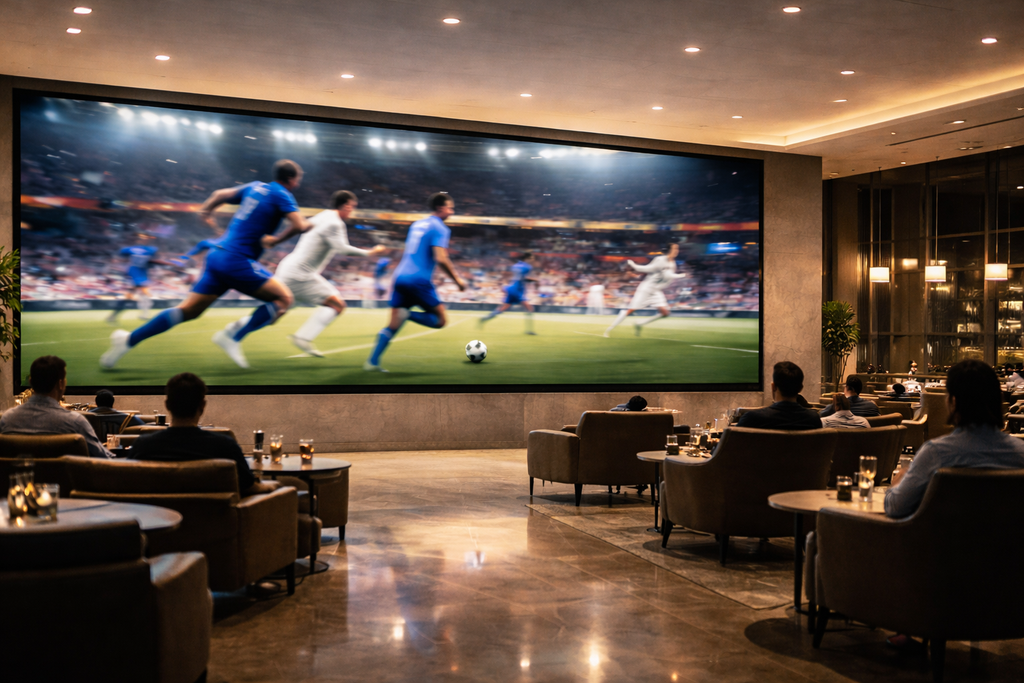

- 244” Diagonal Screen (17.7'x9.9'))
- 1.875mm Small Pitch HD LED Cabinets
- VX600 All-in-One LED Wall Controller
- Slim mount Cabinets 60mm ( 2.36”)
- Integrated Box for easy connection
- 16:9 Standard Video Aspect Ratio
- Super Bright 600cd/m2
- 3840Hz Refresh rate
- View Distance from 10’-165’
- 4,665,600 Pixels
- Seamless / line free Interlocking cabinets
- Front repairable modules with included Vacuum tool
- 2 YEAR WARRANTY ON ALL PARTS
INSTALLATION CABINET VIEW
INSTALLATION FRONT VIEW WITH MODULES
VX1000 All-in-One LED Wall Controller
- Hardware features:
- Input connectors
- 1x HDMI 1.4 (IN & LOOP)
- 1x HDMI 1.4
- 1x DVI (IN & LOOP)
- 1x DVI
- 1x 3G-SDI (IN & LOOP)
- 1x 10G optical fiber port (OPT1)
- Output connectors
- 10x Gigabit Ethernet ports
- A single device unit drives up to 6.5 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
- 2x Fiber outputs" "OPT 1 copies the output on 10 Ethernet ports.
- OPT 2 copies or backs up the output on 10 Ethernet ports.
- 1x HDMI 1.3
- For monitoring or video output
- Self-adaptive OPT 1 for either video input or sending card output
- Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
- Audio input and output
- Audio input accompanied with HDMI input source
- Audio output via a multifunction card
- Output volume adjustment supported
- Low latency
- Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
- 3x layers
- Adjustable layer size and position
- Adjustable layer priority
- Output synchronization
- An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.
- Powerful video processing
- Based on SuperView III image quality processing technologies to provide stepless output scaling.
- One-click full screen display
- Free input cropping
- Easy preset saving and loading
- Up to 10 user-defined presets supported
- Load a preset by simply pressing one button
- Multiple kinds of hot backup
- Backup between devices
- Backup between Ethernet ports" "− Backup between input sources
- Mosaic input source supported
- The mosaic source is composed of several input connectors of the same type.
- Up to 4 units cascaded for image mosaic
- Three working modes
- Video Controller
- Fiber Converter
- Bypass
- All-round color adjustment
- Input source and LED screen color adjustment supported, including brightness, contrast, saturation, hue and Gamma
- 3D function
- Work with the EMT200 3D emitter and matched 3D glasses to present a 3D visual experience.
- Pixel level brightness and chroma calibration
- Work with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.
- Multiple operation modes
- Control the device as you wish via V-Can,
- NovaLCT or device front panel knob and buttons.
Further features
- V-Can Support;
- Genlock;
- Supports up to 3x layers;
- Memory for 10 presets;
- Cascading via USB possible;
- Display configuration without computer possible;
- Control via USB or LAN;
Controller Application
FIBER EXTENTION APPLICATION
specs
| Pixel pitch | 1.875 mm |
| Module Resolution | W160xH90 Pixels |
| Module Size | 300mm x 168.75mm |
| Led Packing | 1515 |
| Scanning Method | 45s |
| LED composition | 1R 1G 1B |
| Cabinet Size | 600 x 337.5 x 60mm / 23.62” x 13.3” x 2.36” |
| Module QTY | w2 x h2 = 4pcs |
| Physical Resolution | w320 x h 180 Pixels |
| Power Consumption (MAX) | 120w |
| Power Consumption (AVG) | 40W |
| Cabinet Material | Die-Cast Aluminum |
| Net Weight | 5.5KG / 12LBS |
| Screen Area | 244” Diagonal Screen (17.7'x9.9') |
| Whole Screen Resolution | 2880(W) x 1620 (H) = 4,665,600 Pixels |
| Cabinet Quantity | 9 pcs wide x 9 pcs high = 81pcs total |
| Brightness | 600cd/m2 |
| Colors | 281 Trillion |
| Brightness Control | Software 256 level adjustable |
| Grey Level | 16 |
| View Distance | 10’ - 165’ |
| Refresh Rate | 3840Hz |
| Drive Mode | 1/45s |
| Life Span | 100,000h |
| MTBF | 1000h |
| Control Mode | Synchronous control or Asynchronous control |
| Frame Frequency | 60Hz |
| Certifications | CE/ROHS/FCC/CCC/ISO9001 |
| Operation Temperature | -20C - +45 C |
| Operation Humidity | 10% - 95% |
General specifications
| Supply voltage | AC 100-240V, 50/60HZ |
| Dimensions | 483.6 x 351.2 x 50.1mm (WxDxH) |
| Power consumption | 28 watts |
| Weight | 4kg |
