Features:

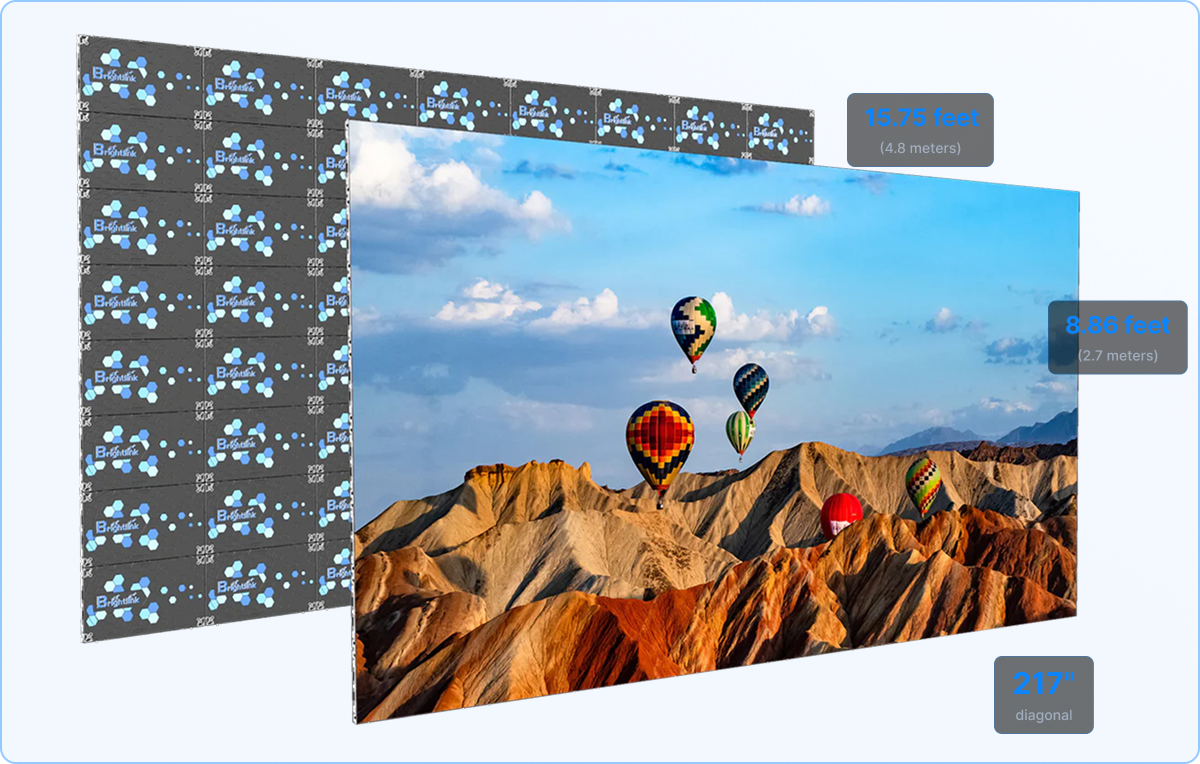

- 217” Diagonal Screen (15.8’ x 8.9’)
- 1.25 mm Small Pitch HD LED Cabinets
- COB Protection for LED Modules
- VX2000 Pro All-in-One LED Wall Controller
- 4 YEAR WARRANTY
- 5 % SPARE PARTS
- Slim mount Cabinets 1.5 inch (39 mm)
- 16:9 Standard Video Aspect Ratio
- Super Bright 600cd/m2
- 3840Hz Refresh rate
- View Distance from 6’-165’
- 8,294,400 Pixels (FULL 4K 3840 x 2160P)
- Seamless / line free Interlocking cabinets
- Front repairable modules with included suction tool
SPECIFICATION
| Slim Profile: |
| Brightlink Advanced Spectrum COB LED Cabinets feature the industry's slimmest profile at just 1.5 inch (39 mm) deep and weigh only 9.5 lbs (4.3 kg). This makes our Advanced Spectrum COB Cabinets significantly lighter than conventional LED displays. The lightweight design simplifies installation, reducing labor intensity, particularly in applications with limited space. |
| Flat LED Modules: |
| Brightlink Advanced Spectrum COB features truly flat LED modules that eliminate warping commonly associated with SMD/GOB versions. This design ensures a uniform, single-level plane, delivering a high-end precision appearance that enhances the overall aesthetic of your display. |
| Higher Contrast Ratios: |
| Our Advanced Spectrum COB technology offers superior contrast levels because the LED chips are mounted directly on the circuit board, minimizing the distance between pixels. This results in deeper blacks and more vibrant colors. |
| High Dynamic Range (HDR): |
| Our Brightlink Advanced Spectrum COB LED with Optional HDR technology offers a superior visual experience with enhanced brightness, contrast, and color accuracy, resulting in more vivid and realistic images. |
| True High Resolution: |
| With our technology, each LED corresponds directly to a pixel, guaranteeing sharp and authentic image quality. This one-to-one relationship ensures that every detail is rendered with precision, resulting in vibrant colors and crystal-clear visuals that enhance the viewer's experience. |
| Superior Motion Handling: |
| Experience no ghosting in fast-moving scenes, making our displays ideal for high-refresh-rate applications. |
| Simplified Control: |
| Direct pixel driving without complex algorithms enhances system stability and reliability. |
| Robust Design: |
| COB LED technology features a protective layer that shields the chips, making them more resistant to damage. This design significantly reduces susceptibility to breakage from impacts or environmental conditions, ensuring long-lasting performance in various settings. |
| Heat Dissipation: |
| Our Brightlink Advanced Spectrum LED modules feature superior heat dissipation properties, which significantly enhance their lifespan and sustain optimal performance over time. This effective thermal management minimizes overheating, ensuring reliable operation in various conditions. |
| Energy Efficiency: |
| Brightlink Advanced Spectrum COB LED technology offers superior energy efficiency compared to traditional LED methods, resulting in lower operating costs. This advantage is particularly valuable for large installations, where reduced power consumption can significantly decrease overall expenses. By choosing our technology, you can achieve impactful savings without compromising performance. |
| Wide Viewing Angles - Consistent Viewing Experience: |
| Our Brightlink Advanced Spectrum COB LED video walls provide wide viewing angles of up to 170 degrees, ensuring consistent image quality from various perspectives. This feature is essential for applications such as events and public displays, where audiences may be positioned at different angles rather than directly in front of the screen. With our technology, everyone can enjoy an optimal viewing experience, regardless of their location. |
| Versatility in Applications: |
| Multiple Use Cases: COB LED video walls are ideal for a wide range of environments, including: |
| Retail Spaces: Captivating customers with vibrant and dynamic displays that enhance the shopping experience. |

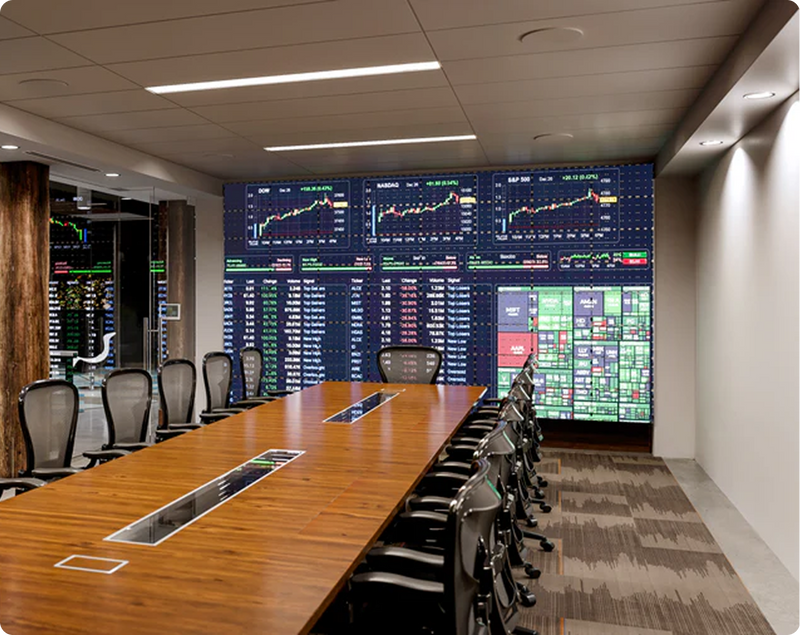

| Control Rooms: Delivering clear and precise visuals for effective monitoring and management of critical operations. |
| Events and Concerts: Creating immersive experiences that engage audiences and elevate the overall atmosphere. |
| Broadcast Studios: Ensuring high-quality visuals for television and media production, enhancing viewer engagement and professionalism. |
| With such diverse applications, our COB LED video walls are designed to meet the needs of various industries and settings. |
| Conclusion: |
| The Brightlink Advanced Spectrum COB LED technology sets a new standard in large scale display solutions, combining innovative features and exceptional performance. With its ultra-slim profile, lightweight design, and integrated power hub, our video walls are designed for ease of installation and maintenance. The superior heat dissipation, energy efficiency, and robust construction ensure long-lasting reliability and lower operating costs, making it an ideal choice for various applications, from retail environments to control rooms and entertainment venues. |
| The impressive wide viewing angles and true high resolution deliver a consistent and immersive visual experience for audiences, regardless of their position. With the versatility to adapt to multiple settings, our COB LED video walls not only meet but exceed the demands of modern display technology. |
| By choosing Brightlink Advanced Spectrum COB LED, you are investing in a cutting-edge solution that enhances visual communication and elevates your brand’s presence. Experience the difference that our advanced technology can make in your next project. |
Module Specs:
| Pixel pitch: 1.25mm |
| Type: COB |
| Module Resolution: W120xH270 Pixels |
| Module Size: 150*168.75 |
| Led Packing: 1010 |
| Scanning Method: 45s |
| LED composition: 1R 1G 1B |
Cabinet Specs:
| Cabinet Size: 600 x 337.5 x 40mm / 23.62” x 13.3” x 2.36” |
| Module QTY: w4 x h2 = 8pcs |
| Physical Resolution: w480 x h 270 Pixels |
| Power Consumption (MAX): ≤310W/m² |
| Power Consumption (AVG): ≤190W/m² |
| Cabinet Material: Die-Cast Aluminum |
| Net Weight: 4.3KG / 9LBS |
Screen Specs:
| Screen Area: 15.8’ x 8.9’ x 217” Diagonally 141 sqft |
| Whole Screen Resolution: 8,294,400 Pixels (FULL 4K 3840 x 2160P) |

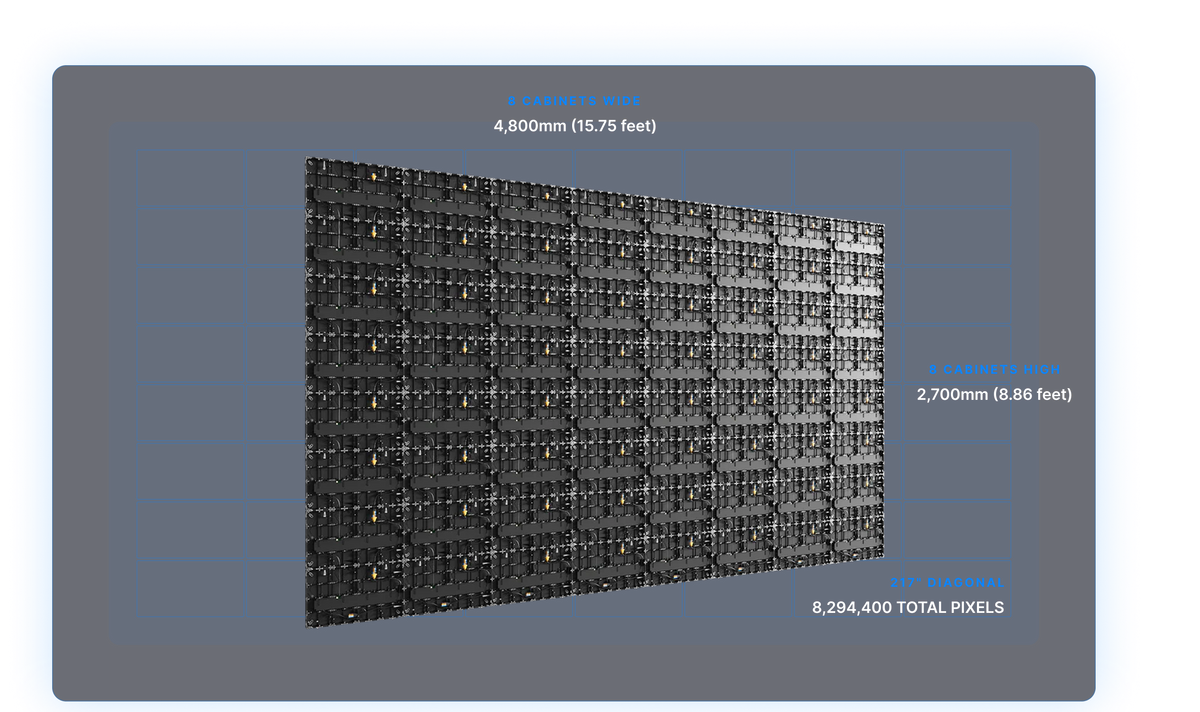

| Cabinet Quantity: 8pcs wide x 8 pcs high = 64pcs total |
| Brightness: 600cd/m2 |
| Colors: 281 Trillion |
| Brightness Control: Software 256 level adjustable |
| Grey Level: 16 |
| View Distance: 2m-50m / 6’ - 165’ |
| Refresh Rate: 3840Hz |
| Drive Mode: 1/43s |
| Life Span: 100,000h |
| MTBF: 1000h |
| Control Mode: Synchronous control or Asynchronous control |
| Frame Frequency: 60Hz |
| Certifications: CE/ROHS/FCC/CCC/ISO9001 |
| Operation Temperature: -20C - +45 C |
| Operation Humidity: 10% - 95% |
NOVASTAR VX2000 LED VIDEO CONTROLLER
| The NovaStar VX2000 Pro is an all-in-one LED video controller with powerful video processing and control capabilities, designed for large-scale LED displays. It features a maximum loading capacity of 13 million pixels, with a maximum output resolution of 16,384 pixels wide and 8,192 pixels high. The VX2000 Pro supports various input sources, including HDMI 2.0, DP 1.2, HDMI 1.3, and 12G-SDI, and offers multiple output options like Ethernet ports and optical fiber ports. |
Controller technical details
| Key Specifications: |
| All-in-one controller: Combines video processing and control functions |
| Loading Capacity: 13 million pixels |
| Maximum Output Width: 16,384 pixels |
| Maximum Output Height: 8,192 pixels |
| Input Connectors: |
| 2 x HDMI 2.0 (4096 x 2160 @ 60Hz) |
| 4 x HDMI 1.3 (1920 x 1080 @ 60Hz) |
| 1 x DP 1.2 (4096 x 2160 @ 60Hz) |
| 1 x 12G-SDI (4096 x 2160 @ 60Hz) |
| Output Connectors: |
| 20 x Ethernet ports |
| 4 x OPT (10G) |
| 1 x HDMI 1.3 (for monitoring) |
| Additional Features: |
| 3D support |
| Genlock |
| Up to 12 layers (2K x 1K) |
| 256 preset memory slots |
| Light sensor connector |
| Low latency mode with delay as low as 1ms |
| Image mosaic and cropping |
| PIP (Picture-in-Picture) with up to 3 simultaneous layers |
| Working Modes: Video controller, fiber converter and ByPass |
| Dimensions: 482.6 x 409.0 x 94.9 mm (WxDxH) |
| Weight: 7kg |
| Power Consumption: 282 watts |
