Brightlink’s New Large Scale 217” LED Display - High Definition 1.25mm Small Pitch / 16:9 ration- 8,294,400 PIXELS (FULL 4K 3840X2160P)) - Slim Mount LED Cabinets for Indoor fixed installs

Save 15%
SKU: BL-LED-125-217
Shipping Time: Standard: 6-8 week delivery

Price:
Sale price$82,997.00 Regular price$97,897.00
Stock:
In stock

Product Attachment

Shipping Time: Standard: 6-8 week delivery

Description

Brightlink’s New Large Scale 217” LED Display - High Definition 1.25mm Small Pitch / 16:9 ration- Slim Mount LED Cabinets for Indoor fixed installs.

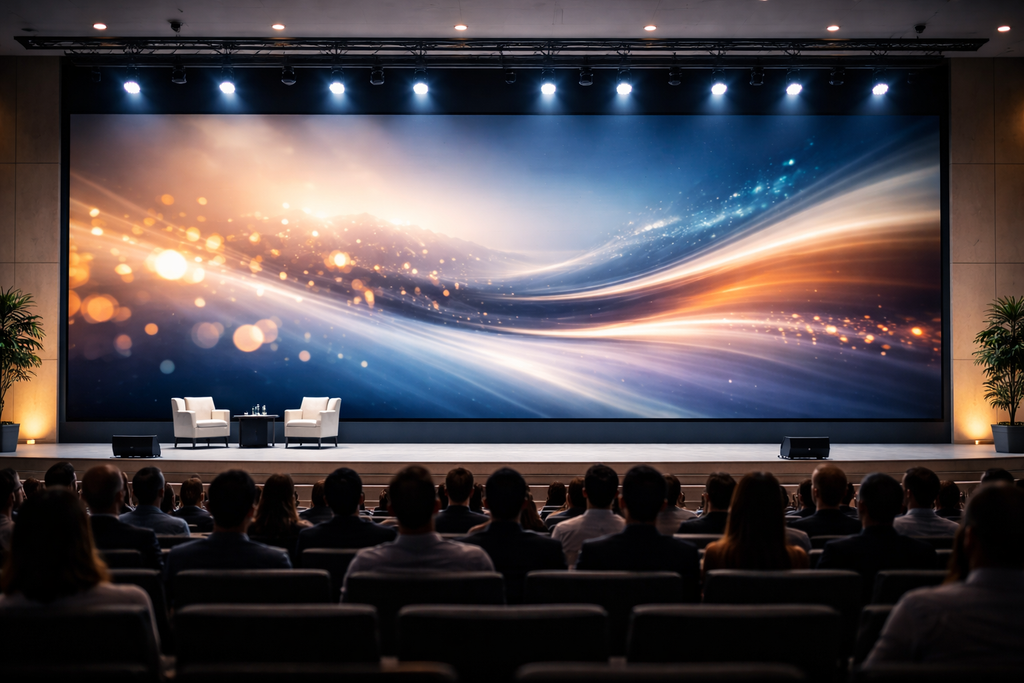

Introducing Brightlink’s New Large Scale 1217” HD 1.25mm Pitch Slim Mount (60mm/2.36”) LED Wall System for indoor fixed installation such as Home Theatre, Conference rooms, Control Centres,  Digital Signage for store fronts, education and training, and much more.
This High Resolution LED wall has 8,294,400 Pixels (FULL 4K 3840 x 2160P)  and with a brightness of 500cd/m2 and refresh rate of 3840Hz, you will get dazzling HD images that will leave your viewer memorized but what they see.
With the seamless interlocking cabinets you get no lines like regular LCD video walls, giving you a clean sharp look for your large scale displays.
The integrated control box design makes for easy connection and easy repairs. They integrated control box and module can be replaced from the front in case of repair.

The VX16s is NovaStar’s new all-in-one controller that integrates video processing, video control and LED screen configuration into one unit. Together with NovaStar’s V-Can video control software, it enables richer image mosaic effects and easier operations.

The VX16s supports a variety of video signals, Ultra HD 4KÅ~2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels.


This Brightlink 217” HD mm Narrow Mount LED Wall System is a complete kit which includes everything you need to install this package in your location.

This includes:

  • 64ea 23.62” x 13.3” Interlocking Cabinets each with 4 interchangeable modules. Spare modules included.
  • All connecting power and network cables including spares.
  • 1ea VX600 All-in-One LED Wall Controller
  • 1ea Vacum tool for easy frontal exchange / repair of modules
  • 1ea Rail system for mounting to wall

Features:

  • 217” Diagonal Screen (15.8’ x 8.9’)
  • 1.25 mm Small Pitch HD LED Cabinets
  • VX600 All-in-One LED Wall Controller
  • Slim mount Cabinets 60mm ( 2.36”)
  • Integrated Box for easy connection
  • 16:9 Standard Video Aspect Ratio
  • Super Bright 500cd/m2
  • 3840Hz Refresh rate
  • View Distance from 6’-165’
  • 8,294,400 Pixels (FULL 4K 3840 x 2160P)
  • Seamless / line free Interlocking cabinets
  • Front repairable modules with included Vacuum tool



Module Specs:
Pixel pitch: 1.25mm
Module Resolution: W240xH135 Pixels
Module Size: 320mm x 160mm
Led Packing: 1010
Scanning Method: 45s
LED composition: 1R 1G 1B

Cabinet Specs:
Cabinet Size: 600 x 337.5 x 60mm / 23.62” x 13.3” x 2.36”
Module QTY: w2 x h2 = 4pcs
Physical Resolution: w480 x h 270 Pixels
Power Consumption (MAX): 120w
Power Consumption (AVG): 40W
Cabinet Material: Die-Cast Aluminum
Net Weight: 5.5KG / 12LBS

Screen Specs:
Screen Area: 15.8’ x 8.9’ x 217” Diagonally  141 sqft
Whole Screen Resolution:8,294,400 Pixels (FULL 4K 3840 x 2160P)
Cabinet Quantity: 8pcs wide x 8 pcs high = 64pcs total
Brightness: 500cd/m2
Colors: 281 Trillion
Brightness Control: Software 256 level adjustable
Grey Level: 16
View Distance: 2m-50m / 6’ - 165’
Refresh Rate: 3840Hz
Drive Mode: 1/43s
Life Span: 100,000h
MTBF: 1000h
Control Mode: Synchronous control or Asynchronous control
Frame Frequency: 60Hz
Certifications: CE/ROHS/FCC/CCC/ISO9001
Operation Temperature: -20C - +45 C
Operation Humidity: 10% - 95%

NovaStar VX16s All-in-One LED Wall Controller:

Hardware Features
Industry-standard input connectors:
2x 3G-SDI
1x HDMI 2.0
4x SL-DVI
16 Ethernet output ports load up to 10,400,000 pixels.
3 independent layers
1x 4K×2K main layer 2x 2K×1K PIPs (PIP 1 and PIP 2)
Adjustable layer priorities

DVI mosaic:
Up to 4 DVI inputs can form an independent input source, which is DVI Mosaic.
Decimal frame rate supported
Supported frame rates: 23.98 Hz, 29.97 Hz,47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz.

3D:
Supports 3D display effect on the LED screen.The device output capacity will be halved after the 3D function is enabled.

Personalized image scaling:
Three scaling options are pixel-to-pixel, full screen and custom scaling.

Image mosaic:
Up to 4 devices can be linked to load a super large screen when used together with the video distributor.

Easy device operation and control through VCan
Up to 10 presets can be saved for future use.

EDID management:
Custom EDID and standard EDID supported

Device backup design:
In backup mode, when the signal is lost or the Ethernet port fails on the primary device, the backup device will take over the task automatically.



Warranty: 2 Years
