Brightlink’s New Large Scale 163” LED Display - .9mm Small Pitch / 16:9 ration- 8,294,400 PIXELS -FULL 4K RESOLUTION - Slim Mount LED Cabinets for Indoor fixed installs

Save 7%

Price:
Sale price$87,950.00 Regular price$94,500.00
SKU: BL-LED-009-163
Shipping Time: Standard: 6-8 week delivery
Stock:
In stock

Description

Brightlink’s New Large Scale 163” LED Display - FULL 4K 8,294,400 PIXLES - .9mm Small Pitch / 16:9 ration- Slim Mount LED Cabinets for Indoor fixed installs.

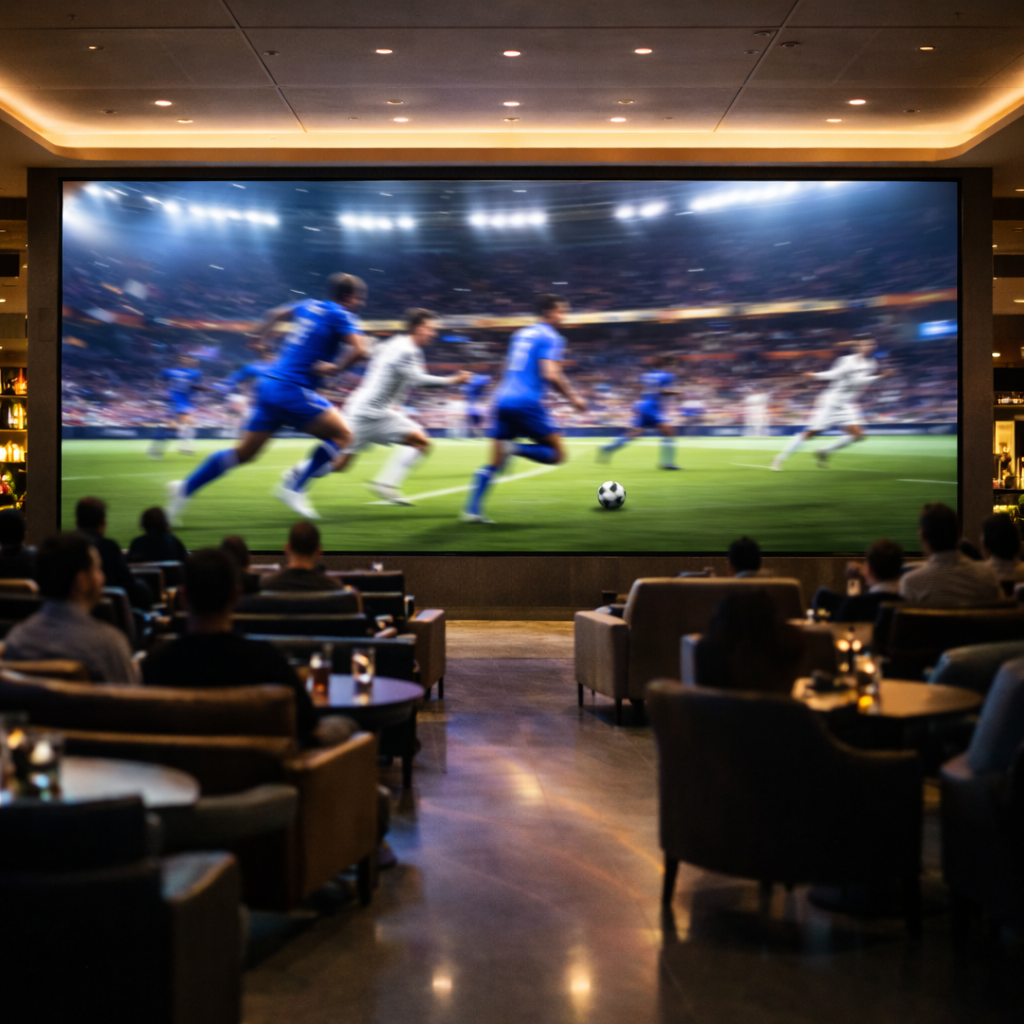

Introducing Brightlink’s New Large Scale 163” 4K .9mm Pitch Slim Mount (60mm/2.36”) LED Wall System for indoor fixed installation such as Home Theatre, Conference rooms, Control Centres,  Digital Signage for store fronts, education and training, and much more.
This High Resolution LED wall has 8,294,400 PIXELS (FULL 4K RESOLUTION) and with a brightness of 600cd/m2 and refresh rate of 3840Hz, you will get dazzling HD images that will leave your viewer memorized but what they see.
With the seamless interlocking cabinets you get no lines like regular LCD video walls, giving you a clean sharp look for your large scale displays.
The integrated control box design makes for easy connection and easy repairs. They integrated control box and module can be replaced from the front in case of repair.

The VX16000s is NovaStar’s new all-in-one controller that integrates video processing, video control and LED screen configuration into one unit. Together with NovaStar’s V-Can video control software, it enables richer image mosaic effects and easier operations.

The VX16000s supports a variety of video signals, Ultra HD 4KÅ~2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels.


This Brightlink 163” HD mm Narrow Mount LED Wall System is a complete kit which includes everything you need to install this package in your location.

This includes:

  • 36ea 23.62” x 13.3” Interlocking Cabinets each with 4 interchangeable modules. Spare modules included.
  • All connecting power and network cables including spares.
  • 1ea VX600 All-in-One LED Wall Controller
  • 1ea Vacuum tool for easy frontal exchange / repair of modules
  • 1ea Rail system for mounting to wall

Features:

  • 163” Diagonal Screen (11.8’ x 6.6’)
  • .9mm Small Pitch HD LED Cabinets
  • VX600 All-in-One LED Wall Controller
  • Slim mount Cabinets 60mm ( 2.36”)
  • Integrated Box for easy connection
  • 16:9 Standard Video Aspect Ratio
  • Super Bright 500cd/m2
  • 3840Hz Refresh rate
  • View Distance from 6’-165’
  • 8,294,400 PIXELS (FULL 4K RESOLUTION )
  • Seamless / line free Interlocking cabinets
  • Front repairable modules with included Vacuum tool





Module Specs:
Pixel pitch: .9mm
Module Resolution: W320xH180 Pixels
Module Size: 320mm x 160mm
Led Packing: 1010
Scanning Method: 45s
LED composition: 1R 1G 1B

Cabinet Specs:
Cabinet Size: 600 x 337.5 x 60mm / 23.62” x 13.3” x 2.36”
Module QTY: w2 x h2 = 4pcs
Physical Resolution: w640 x h 360 Pixels
Power Consumption (MAX): 120w
Power Consumption (AVG): 40W
Cabinet Material: Die-Cast Aluminum
Net Weight: 5.5KG / 12LBS

Screen Specs:
Screen Area: 11.8’ x 6.6’ x 135” Diagonally
Whole Screen Resolution:  = 8,294,400 PIXELS
Cabinet Quantity: 6 pcs wide x 6 pcs high = 36pcs total
Brightness: 600cd/m2
Colors: 281 Trillion
Brightness Control: Software 256 level adjustable
Grey Level: 16
View Distance: 2m-50m / 6’ - 165’
Refresh Rate: 3840Hz
Drive Mode: 1/43s
Life Span: 100,000h
MTBF: 1000h
Control Mode: Synchronous control or Asynchronous control
Frame Frequency: 60Hz
Certifications: CE/ROHS/FCC/CCC/ISO9001
Operation Temperature: -20C - +45 C
Operation Humidity: 10% - 95%

NovaStar VX16s All-in-One LED Wall Controller:

Hardware Features
Industry-standard input connectors:
2x 3G-SDI
1x HDMI 2.0
4x SL-DVI
16 Ethernet output ports load up to 10,400,000 pixels.
3 independent layers
1x 4K×2K main layer 2x 2K×1K PIPs (PIP 1 and PIP 2)
Adjustable layer priorities

DVI mosaic:
Up to 4 DVI inputs can form an independent input source, which is DVI Mosaic.
Decimal frame rate supported
Supported frame rates: 23.98 Hz, 29.97 Hz,47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz.

3D:
Supports 3D display effect on the LED screen.The device output capacity will be halved after the 3D function is enabled.

Personalized image scaling:
Three scaling options are pixel-to-pixel, full screen and custom scaling.

Image mosaic:
Up to 4 devices can be linked to load a super large screen when used together with the video distributor.

Easy device operation and control through VCan
Up to 10 presets can be saved for future use.

EDID management:
Custom EDID and standard EDID supported

Device backup design:
In backup mode, when the signal is lost or the Ethernet port fails on the primary device, the backup device will take over the task automatically.



Warranty: 2 Years
