Brightlink’s New Large Scale 163” LED Display - High Definition 1.25mm Small Pitch / 16:9 ration- 4,665,600 PIXELS - Slim Mount LED Cabinets for Indoor fixed installs

Save 22%

Sale price$46,997.00 Regular price$59,900.00
SKU: BL-LED-125-163
Shipping Time: Standard: 6-8 week delivery
In stock


Brightlink’s New Large Scale 163” LED Display - High Definition 1.25mm Small Pitch / 16:9 ration- Slim Mount LED Cabinets for Indoor fixed installs.

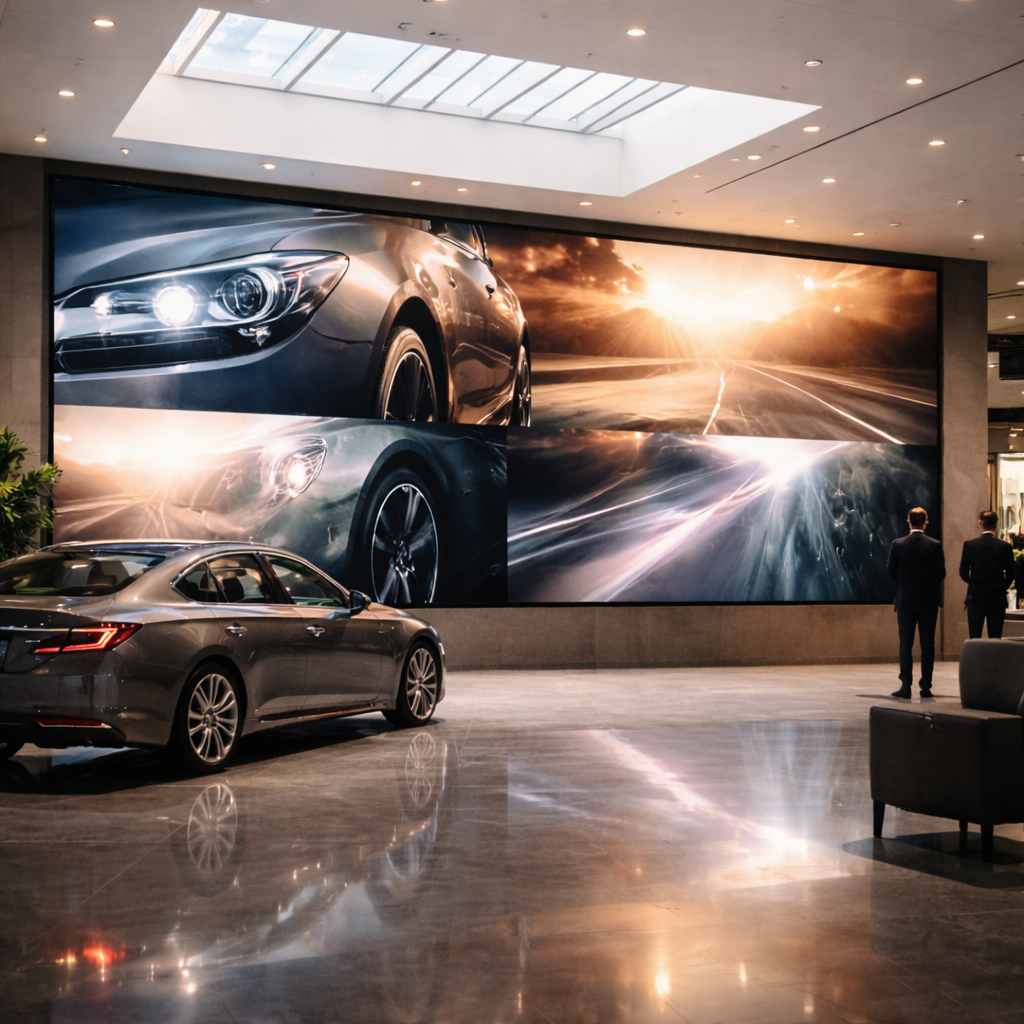

Introducing Brightlink’s New Large Scale 163” HD 1.25mm Pitch Slim Mount (60mm/2.36”) LED Wall System for indoor fixed installation such as Home Theatre, Conference rooms, Control Centres,  Digital Signage for store fronts, education and training, and much more.
This High Resolution LED wall has 4,665,600 Pixels  and with a brightness of 500cd/m2 and refresh rate of 3840Hz, you will get dazzling HD images that will leave your viewer memorized but what they see.
With the seamless interlocking cabinets you get no lines like regular LCD video walls, giving you a clean sharp look for your large scale displays.
The integrated control box design makes for easy connection and easy repairs. They integrated control box and module can be replaced from the front in case of repair.
The VX1000 is NovaStar's newall-in-one controller that integrates video processing and video control into one box. It features10 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX1000 unit can drive up to 6.5 million pixels, with the maximum output widthand heightup to10,240 pixels and 8192 pixels,respectively, which is idealfor ultra-wide and ultra-high LED screen applications.
This Brightlink 163” HD mm Narrow Mount LED Wall System is a complete kit which includes everything you need to install this package in your location.

This includes:

  • 36ea 23.62” x 13.3” Interlocking Cabinets each with 4 interchangeable modules. Spare modules included.
  • All connecting power and network cables including spares.
  • 1ea VX600 All-in-One LED Wall Controller
  • 1ea Vacum tool for easy frontal exchange / repair of modules
  • 1ea Rail system for mounting to wall



  • 163” Diagonal Screen (11.8’ x 6.6’)
  • 1.25 mm Small Pitch HD LED Cabinets
  • VX600 All-in-One LED Wall Controller
  • Slim mount Cabinets 60mm ( 2.36”)
  • Integrated Box for easy connection
  • 16:9 Standard Video Aspect Ratio
  • Super Bright 500cd/m2
  • 3840Hz Refresh rate
  • View Distance from 6’-165’
  • 4,665,600 Pixels
  • Seamless / line free Interlocking cabinets
  • Front repairable modules with included Vacuum tool

Module Specs:
Pixel pitch: 1.25mm
Module Resolution: W240xH135 Pixels
Module Size: 320mm x 160mm
Led Packing: 1010
Scanning Method: 45s
LED composition: 1R 1G 1B

Cabinet Specs:
Cabinet Size: 600 x 337.5 x 60mm / 23.62” x 13.3” x 2.36”
Module QTY: w2 x h2 = 4pcs
Physical Resolution: w480 x h 270 Pixels
Power Consumption (MAX): 120w
Power Consumption (AVG): 40W
Cabinet Material: Die-Cast Aluminum
Net Weight: 5.5KG / 12LBS

Screen Specs:
Screen Area: 11.8’ x 6.6’ x 163” Diagonally  78 sqft
Whole Screen Resolution:2880(W) x 1620(H) = 4,665,600 Pixels
Cabinet Quantity: 6pcs wide x 6 pcs high = 36pcs total
Brightness: 500cd/m2
Colors: 281 Trillion
Brightness Control: Software 256 level adjustable
Grey Level: 16
View Distance: 2m-50m / 6’ - 165’
Refresh Rate: 3840Hz
Drive Mode: 1/43s
Life Span: 100,000h
MTBF: 1000h
Control Mode: Synchronous control or Asynchronous control
Frame Frequency: 60Hz
Certifications: CE/ROHS/FCC/CCC/ISO9001
Operation Temperature: -20C - +45 C
Operation Humidity: 10% - 95%

VX1000 All-in-One LED Wall Controller:

Hardware features:

● Input connectors
− 1x HDMI 1.4 (IN & LOOP)
− 1x HDMI 1.4
− 1x DVI (IN & LOOP)
− 1x DVI
− 1x 3G-SDI (IN & LOOP)
− 1x 10G optical fiber port (OPT1)
● Output connectors
− 10x Gigabit Ethernet ports
A single device unit drives up to 6.5 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
− 2x Fiber outputs" "OPT 1 copies the output on 10 Ethernet ports.
OPT 2 copies or backs up the output on 10 Ethernet ports.
− 1x HDMI 1.3
For monitoring or video output
● Self-adaptive OPT 1 for either video input or sending card output
Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
● Audio input and output
− Audio input accompanied with HDMI input source
− Audio output via a multifunction card
− Output volume adjustment supported
● Low latency
Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
● 3x layers
− Adjustable layer size and position
− Adjustable layer priority
● Output synchronization
An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.
● Powerful video processing
− Based on SuperView III image quality processing technologies to provide stepless output scaling.
− One-click full screen display
− Free input cropping
● Easy preset saving and loading
− Up to 10 user-defined presets supported
− Load a preset by simply pressing one button
● Multiple kinds of hot backup
− Backup between devices
− Backup between Ethernet ports" "− Backup between input sources
● Mosaic input source supported
The mosaic source is composed of several input connectors of the same type.
● Up to 4 units cascaded for image mosaic
● Three working modes
− Video Controller
− Fiber Converter
− Bypass
● All-round color adjustment
Input source and LED screen color adjustment supported, including brightness, contrast, saturation, hue and Gamma
● 3D function
Work with the EMT200 3D emitter and matched 3D glasses to present a 3D visual experience.
● Pixel level brightness and chroma calibration
Work with NovaLCT and NovaStar calibration software to support brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.
● Multiple operation modes
Control the device as you wish via V-Can,
NovaLCT or device front panel knob and buttons.

Further features:
- V-Can Support;
- Genlock;
- Supports up to 3x layers;
- Memory for 10 presets;
- Cascading via USB possible;
- Display configuration without computer possible;
- Control via USB or LAN;

General specifications:

- Supply voltage: AC 100-240V, 50/60HZ;
- Dimensions: 483.6 x 351.2 x 50.1mm (WxDxH);
- Power consumption: 28 watts;
- Weight: 4kg;

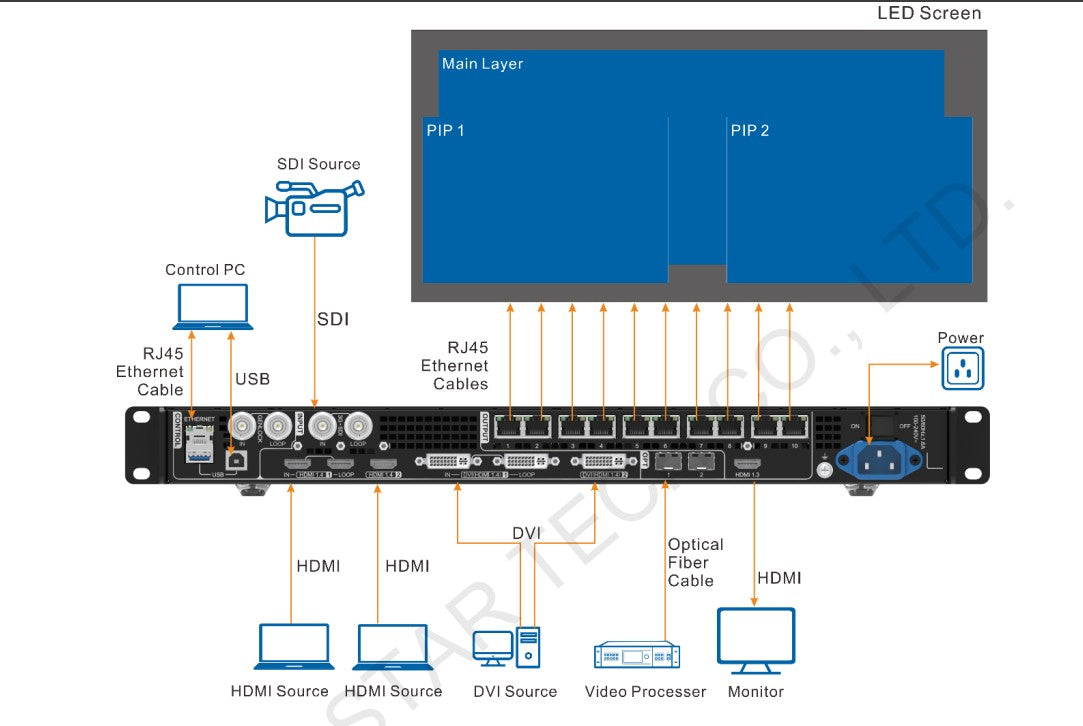

 Controller Application



Warranty: 2 Years
