Brightlink’s New Large Scale 135” LED Display - High Definition 1.875mm Small Pitch / 16:9 ration- 1,440,000 PIXELS - Slim Mount LED Cabinets for Indoor fixed installs

Save 16%

Sale price$21,750.00 Regular price$25,997.00
SKU: BL-LED-1875-135
Shipping Time: Standard: 6-8 week delivery
In stock


Brightlink’s New Large Scale 135” LED Display - High Definition 1.875mm Small Pitch / 16:9 ration- Slim Mount LED Cabinets for Indoor fixed installs.

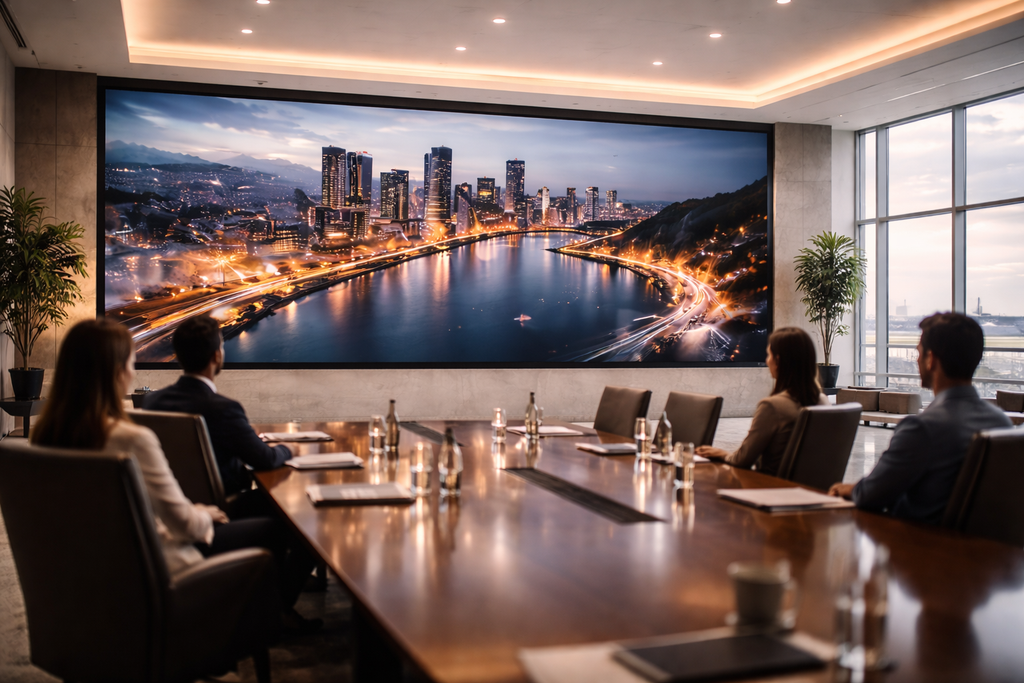

Introducing Brightlink’s New Large Scale 135” HD 1.875mm Pitch Slim Mount (60mm/2.36”) LED Wall System for indoor fixed installation such as Home Theatre, Conference rooms, Control Centres,  Digital Signage for store fronts, education and training, and much more.
This High Resolution LED wall has 1,440,000 Pixels and with a brightness of 600cd/m2 and refresh rate of 3840Hz, you will get dazzling HD images that will leave your viewer memorized but what they see.
With the seamless interlocking cabinets you get no lines like regular LCD video walls, giving you a clean sharp look for your large scale displays.
The integrated control box design makes for easy connection and easy repairs. They integrated control box and module can be replaced from the front in case of repair.
The VX600 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.
This Brightlink 135” HD mm Narrow Mount LED Wall System is a complete kit which includes everything you need to install this package in your location.

This includes:

  • 25ea 23.62” x 13.3” Interlocking Cabinets each with 4 interchangeable modules. Spare modules included.
  • All connecting power and network cables including spares.
  • 1ea VX600 All-in-One LED Wall Controller
  • 1ea Vacum tool for easy frontal exchange / repair of modules
  • 1ea Rail system for mounting to wall


  • 135” Diagonal Screen (9.84’ x 5.54’)
  • 1.875mm Small Pitch HD LED Cabinets
  • VX600 All-in-One LED Wall Controller
  • Slim mount Cabinets 60mm ( 2.36”)
  • Integrated Box for easy connection
  • 16:9 Standard Video Aspect Ratio
  • Super Bright 600cd/m2
  • 3840Hz Refresh rate
  • View Distance from 10’-165’
  • 1,440,000 Pixels
  • Seamless / line free Interlocking cabinets
  • Front repairable modules with included Vacuum tool

Module Specs:
Pixel pitch: 1.875 mm
Module Resolution: W160xH90 Pixels
Module Size: 320mm x 160mm
Led Packing: 1515
Scanning Method: 45s
LED composition: 1R 1G 1B

Cabinet Specs:
Cabinet Size: 600 x 337.5 x 60mm / 23.62” x 13.3” x 2.36”
Module QTY: w2 x h2 = 4pcs
Physical Resolution: w320 x h 180 Pixels
Power Consumption (MAX): 120w
Power Consumption (AVG): 40W
Cabinet Material: Die-Cast Aluminum
Net Weight: 5.5KG / 12LBS

Screen Specs:
Screen Area: 9.84’ x 5.54’ x 135” Diagonally   55 sqft
Whole Screen Resolution: 1600(W) x 900(H) = 1,440,000 Pixels
Cabinet Quantity: 5pcs wide x 5 pcs high = 25pcs total
Brightness: 600cd/m2
Colors: 281 Trillion
Brightness Control: Software 256 level adjustable
Grey Level: 16
View Distance:  10’ - 165’
Refresh Rate: 3840Hz
Drive Mode: 1/45s
Life Span: 100,000h
MTBF: 1000h
Control Mode: Synchronous control or Asynchronous control
Frame Frequency: 60Hz
Certifications: CE/ROHS/FCC/CCC/ISO9001
Operation Temperature: -20C - +45 C
Operation Humidity: 10% - 95%

VX600 All-in-One LED Wall Controller:

NovaStar VX600 is an all-in-one video processor suitable for small to medium size LED screen installations. It can drive up to 3,900,000 pixels in total, at up to 10,240 pixels wide or up to 8,192 pixels in height, which is ideal for ultra-wide and ultra-high LED screen applications.

Hardware features:

- 2x HDMI 1.3 (HDMI-In & Loop) (max. 1920×1200@60Hz), Custom EDID's possible;
- 1x DVI (1920×1200@60Hz, Custom EDID's possible;
- 1x 3G-SDI (max. 1920×1080@60Hz);

-6x LED-Out (RJ45);
-1x HDMI 1.3 Out (fixed resolution of 1920×1080@60Hz when the output is used as monitoring);
-2x OPT-Out (10G);

Further features:
- V-Can Support;
- Genlock;
- Supports up to 3x layers;
- Memory for 10 presets;
- Cascading via USB possible;
- Display configuration without computer possible;
- Control via USB or LAN;

General specifications:

- Supply voltage: AC 100-240V, 50/60HZ;
- Dimensions: 483.6 x 351.2 x 50.1mm (WxDxH);
- Power consumption: 28 watts;
- Weight: 4kg;

 Controller Application



Warranty: 2 Years
