Brightlink’s New 4K UHD 2x2 Video Wall Controller - 1 input to 4 Displays with DP, USB-C & Dual HDMI input. Create 1x2,1x3,1x4 and cascade addition controls to create up to 10x10 Video Walls

newSave 20%

Sale price$797.97 Regular price$997.97
SKU: BL-VW22-4K30
Shipping Time: Standard 5-6 business day
In stock

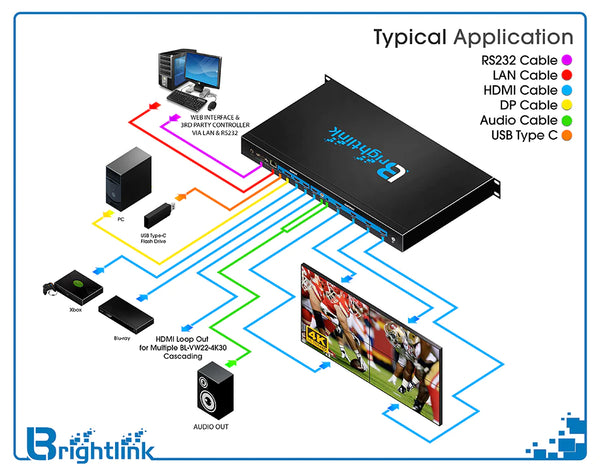

Introducing Brightlink’s new 4k 2x2 Video Wall controller with Display Port, USB type C, and two HDMI inputs, along with Digital and Analog audio out, and HDMI loop out giving you the ability to cascade controllers and create gigantic eye catching Video Walls in 2x3, 2x4, 3x3, 4x5, 5x5 all the way up to 10x10 configurations.

With this 4K Video Wall Controller you will get images almost 4 X clearer and sharper then a typical 1080p Video Wall Controller giving you the best possible image over your 4 displays.

This premium Brightlink 2x2 Video Wall Controller offers a variety of input, control, and setting options that will allow you to easily create and control almost any type of Video wall and/or Digital signage display you can think of.

With all its features such as 180 degree rotation and bezel adjustment you can create unique and eye catching Video Walls that are sure to catch the attention of anyone who see them. By plugging a USB stick into the input port you can load your digital signage videos or images directly into the Video Wall Controller and operate with the IR remote.

This 2X2 4k Video Wall Controller comes with our Brightlink built in Web Interface allowing you to easily access and control it anywhere on your network.


  • Send one 4k Image over 4 Displays
  • Create 2x2, 1x2, 1x3 & 1x4 Video walls with single Controller
  • Cascade multiple controllers to get 2x3, 3x3, 4x4, 5x5…up to 10x10
  • Dual HDMI inputs along with Display Port andUSB type C
  • Choose any of the 4 inputs to be sent to displays.
  • Support 180° rotation.
  • Support resolution up to 4K30HZ.
  • Support HDCP2.2/1.4
  • Support EDID management:Two default EDID: 4K30HZ &080P as well user can copy
    the EDID from the loop out and any output port.
  • Built in Brightlink Web interface for easy control over your network.
  • Also control with front panel button, Remote Control, RS232 Control, TCP/IP Control, and support for third-party platform control.

WARRANTY - YES, one-year warranty. During this period, if any defective happen due to manufacturing issues, Brightlink AV will offer all necessary parts free of charge
