Description

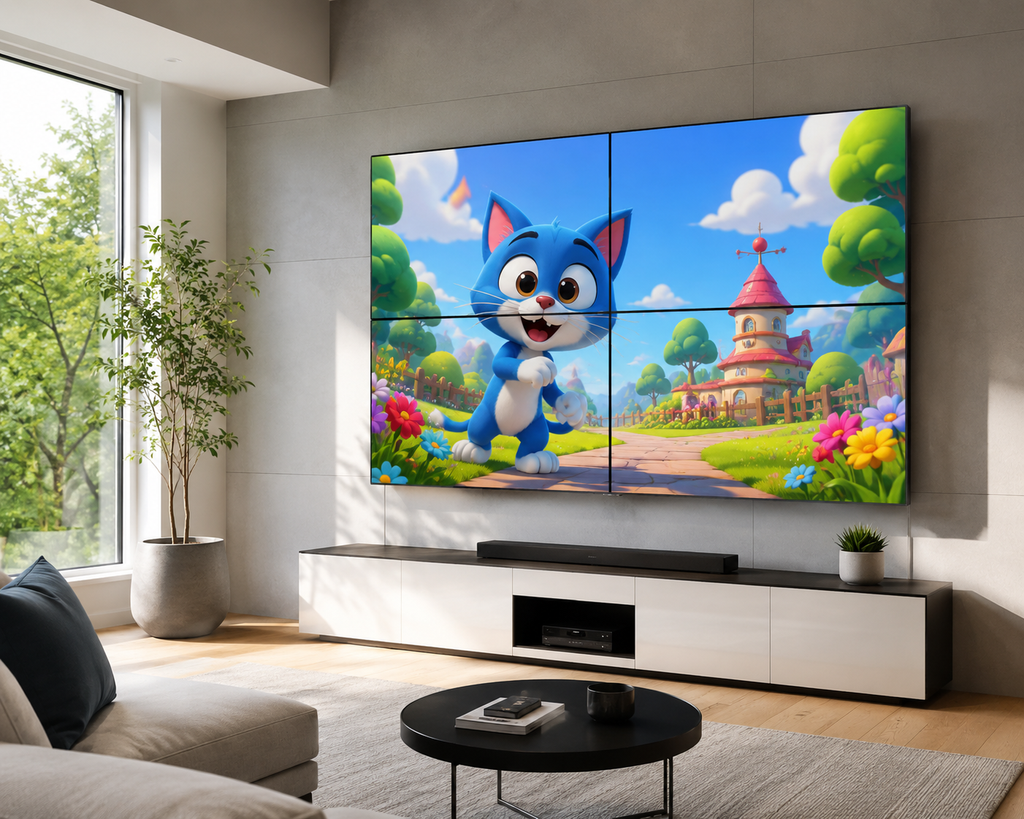

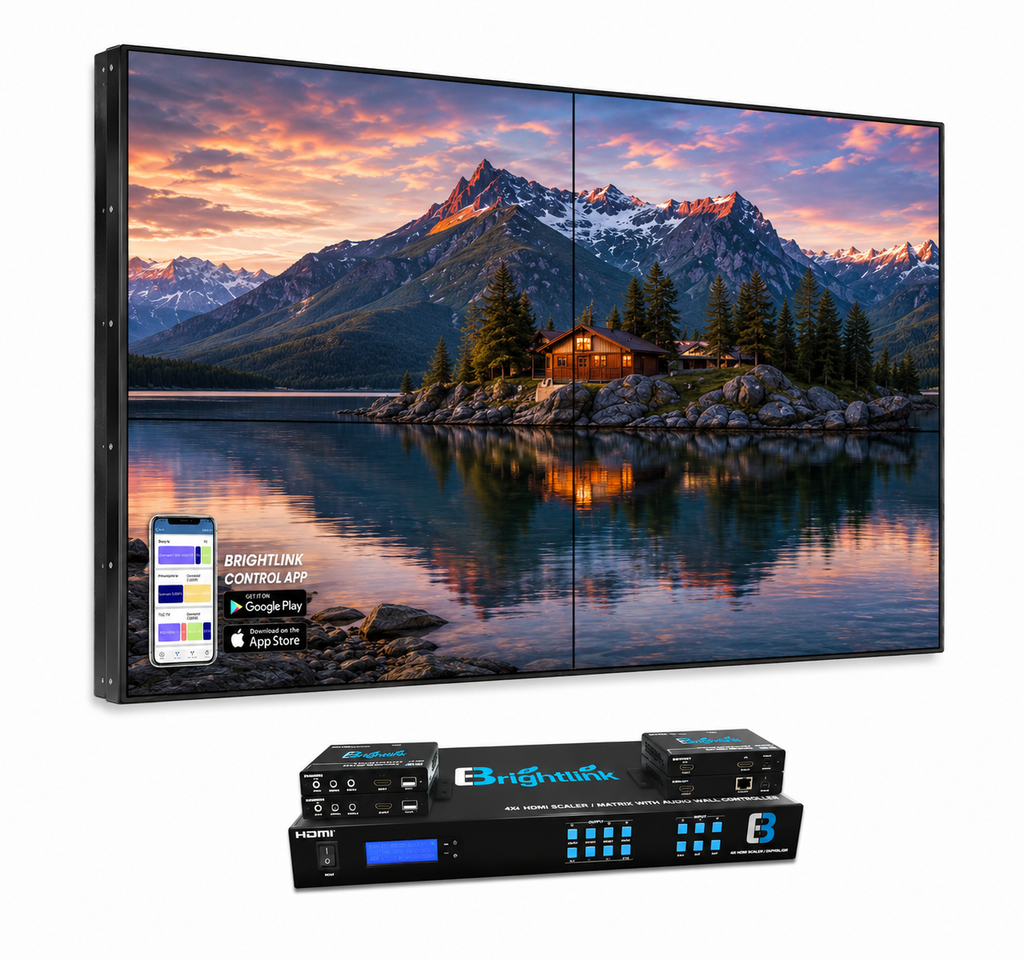

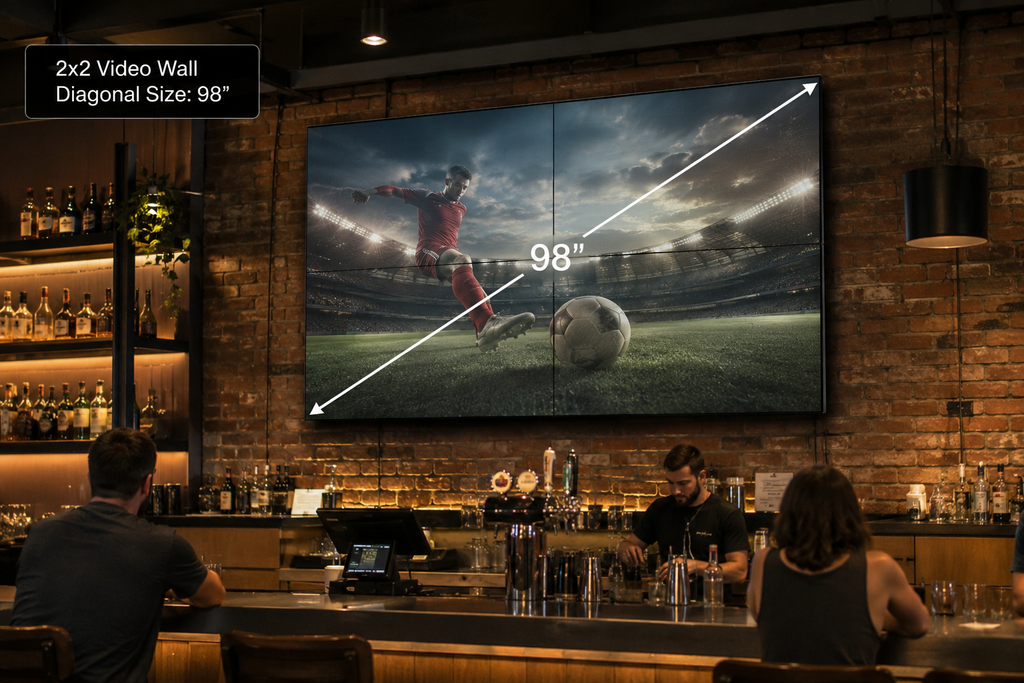

Introducing our custom 2x2 4K Video Wall package including 4ea 49” 1080P (4k /w Multi-Screen) Ultra Thin 1.75mm Bezel per side / 3.5mm total, Video Wall Displays & 1ea 2x2 Video Wall Controller and HDMI / Cat6 out with POE Receivers, and 1ea 2x2 Aluminum Mounting bracket, allowing you to create an eye catching large scale 98" (diagonally) 4K display for your video content that is sure to grab the attention of any viewer.
These 2x2 4k Video Wall Systems are an ideal solution for environments that require an effective large scale medium for displaying your digital signage / video content such as Casinos, Sports Bars, Super Markets, Shopping Malls, Air Ports, Churches, Data Control Centre, Conference Rooms, and Education and Training.
Please contact us if you require custom video wall packages in different configurations. sales@brightlinkav.com
DISPLAY INFO:

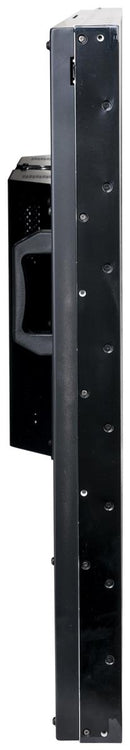

Introducing Brightlink’s New 49” 1080P Video Wall Display with Ultra-narrow 1.75mm bezel / frame (3.5mm total with multiple displays) allowing seamless viewing when using in a multiple screen Video Wall set up.
With the Max viewing angle of up to 178 degrees you can view your video wall from nearly every angle allowing your audience to easily view your content from every corner of your space.
These Video Wall Displays are designed to seamlessly fit together in configurations from 1x2, to 2x2, 2x3, 3x3, 4x4 and up, giving you a large scale, attention grabbing, medium to show your digital signage content.
When putting these 1080p displays together in a 2x2 configuration or up, you are able to display 4k (3840x2160p) content to give you an ultra sharp image. The 4k content gets divided over the 2x2 and up displays.
To distribute your 1080p or 4k source over your multi-screen configuration such as 2x2, 2x3, 3x3, 4x4, etc…, you can use one of our various Video Wall Controllers to easily achieve this by plugging your one HD source into the input and connecting each of your HD displays to the HDMI outputs via HDMI cables.
FEATURES:
- 49" Ultra-narrow 1.75mm bezel / frame (3.5mm total with multiple displays), enjoy seamlessly visual experience.
- High Performance 450cd/m Brightness
- Native resolution up to 1920×1080, viewing angle up to 178°.
- Built-in 3D noise reduction technology
- Embedded 3D color separation unit.
- High reliability, support non-stop work for 24 hours, suitable to use as monitor.
- Flicker free, less radiation, less heat release, no lead, mercury and other harmful substances.
- Particular block design supports multiple art combination. Maximum support（15×15）.
- Low power consumption, standby <3W。
- Integrated multi-channel video signal source, support HDMI, DVI, VGA, CVBS and USB video playback.
|
NAME |
SPECS |
|
LCD Panel |
|
|
Color temperature |
10000K |
|
Resolution (H x V) - Single Display |
1920p X 1080p |
|
Multi Scree Resolution |
Up to 3840x2160@60Hz when using multiple displays (example 2x2 video wall can support 4k image) |
|
Aspect ratio |
16:9 |
|
Contrast(Typical) |
1900-05-24 20:01 |
|
Display colors |
16.7M(8bit) |
|
Response time(typical) |
8ms |
|
View angle |
≥50,000hours |
|
Interface |
|
|
HDMI output |
1x HDMI interface input, support 1080P |
|
DVI |
1x DVI digital signal input, support 1080P |
|
VGA |
1x VGA analog signal input, support 1080P |
|
CVBS IN |
2x video input, support NTSC, PAL & SECAM. |
|
USB |
For software updating, HD base map function |
|
RS232 |
A serial port ring out controls A, adopt 568B standard |
|
RS232 |
A serial port ring out controls computer |
|
POWER SUPPLY |
|
|
AC Power range |
100V-240V |
|
Working temperature |
0~50℃ |
|
Working humidity |
10~90% RH |
|
Accessories |
|
|
Power cable |
YES |
|
Remote control |
YES |
|
Mounting Bracket Spacers |
YES |
|
WARRANTY |
|
|
YES, one-year warranty. During this period, if any defective happen due to manufacturing issues, Brightlink AV will offer all necessary parts free of charge. |
|
IR / CONTROL GUIDE:
VIDEO WALL CONTROLLER INFO:

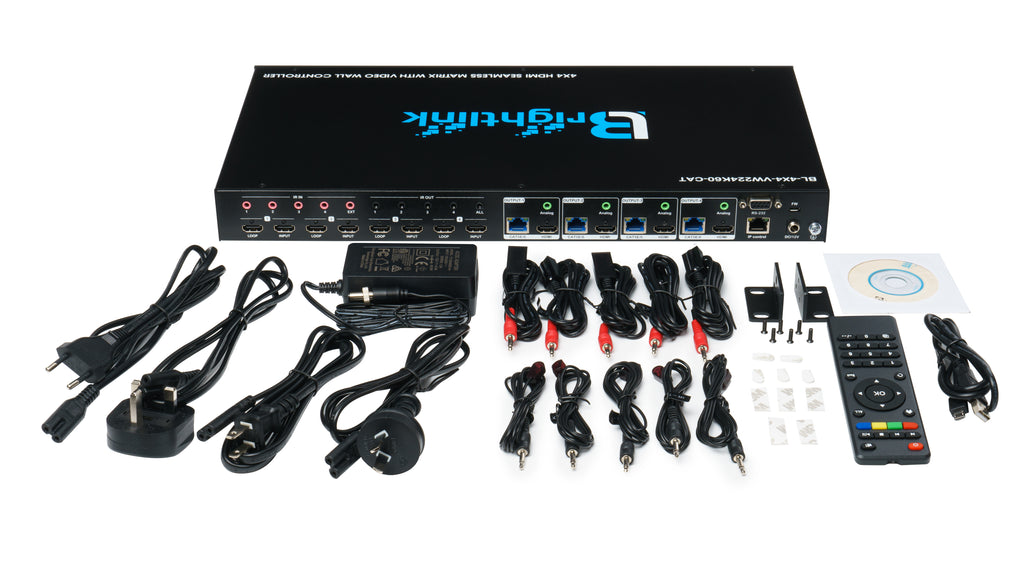

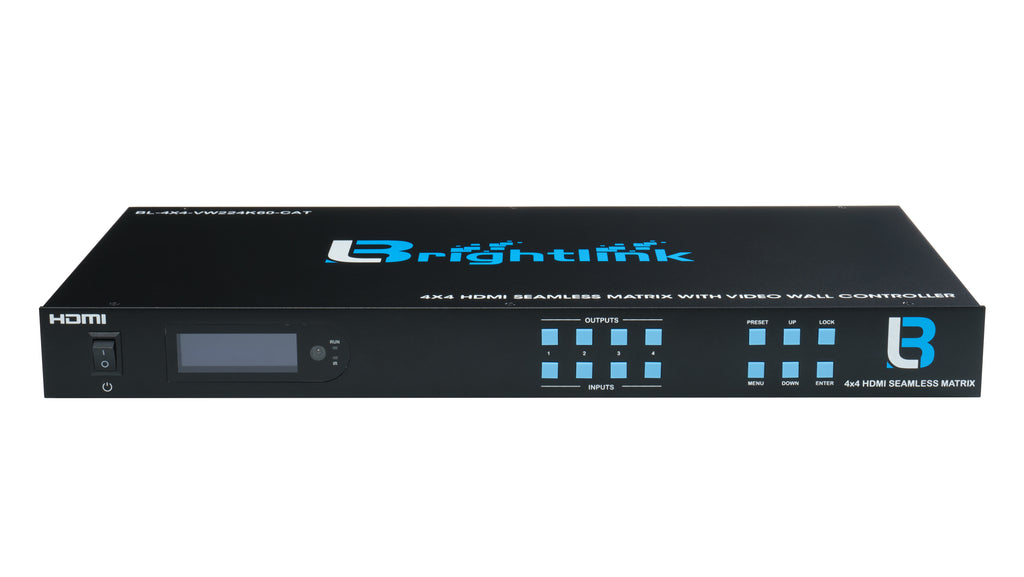

Introducing Brightlink’s New 4x4 4k@30hz Seamless Matrix with 2x2 Video Wall controller.
This seamless 4x4 Matrix allows any Input to be routed to any output via either HDMI or Cat5e/6 Cable upto 90m away to the Cat5e/6 Receivers with HDMI out. This system comes with 4 Receivers which are POE/POC ( no power needed for receivers. Power comes from Cat Cable from Matrix system).
The 4K Video Wall Controller uses the DSP+FPGE advanced image processing technology and along with the Max HDMI input signal of HDMI 2.0 (HDCP2.2) 3840x2160@60HZ, you are able to view fast motion dynamic pictures with no delay or frame lost giving you a crisp clear image that is sure to impress.
This 4K Video Wall Controller is ideal for environments where superior performance and crisp clear high resolutions are required to display your video content / digital signage over many displays in large format.
Common application includes exhibition halls, trade shows, map display system, GPS positioning system, oil monitoring, satellite positioning, conference rooms, Education and tanning, Casinos, hotels, and many other environments where large format multi-screen displays are required while at the same time having a clear detailed image in order to show your content and information easily to any viewer at various distances.
FEATURES:
- Input Port 4XHDMI
- Output Port 4XHDMI, 4XCat5e/6 Outport, 4x HDMI Loopout
- INPUT Resolution 3840 x 2160 @60 Hz 4:4:4, 8Bit
- OUTPUT Resolution Loopout: 3840 x 2160 @60 Hz 4:4:4,
- HDMI Out: 3840 x 2160 @30 Hz 4:4:4, 8Bit
- Compliance Standards HDMI 2.2/HDCP1.X
- Pixel Clock 340MHZ
- Maximum Data Rate 10.2Gbps
- Audio Format 2CH PCM
- Baud Rate 9600-115200
- Telnet IP Address: 192.168.1.168
- Net Mask: 255.255.255.0
- Gateway:192.168.1.1
- TCP Port: 5000
- Telnet Port: 23
- HDCP: OFF
- Control Panel buttons, remote control, RS-232 , Web GUI,IP
- Operating Temperature 0 to + 40°C (32 to + 104 °F)
- Storage Temperature -20 to +60°C (-4 to +140 °F)
- Humidity 10% to 90%, non-condensing
- Product Supply 12V
2x2 Aluminum Mounting bracket:
- Supports 2x2 Mounting configuration on flat wall.
|
NAME |
SPECS |
|
HDMI INPUT |
|
|
Interface |
HDMI A TYPE (HDMI2.0 SUPPORT HDCP 2.2) |
|
Resolution |
Up to 3840x2160@60Hz |
|
MOBILE SIGNAL INPUT |
|
|
Interface |
HDMI a type (HDMI 1.4 SUPPORT HDCP 2.0 and mobile signal) |
|
Resolution |
Up to 3840x2160@30Hz |
|
DP INPUT |
|
|
Interface |
DP1.2 |
|
Resolution |
Up to 3840x2160@60Hz |
|
Audio output |
3.5mm Analog Audio output port |
|
HDMI output |
1920*1080@60Hz |
|
Input Ports |
1ea HDMI , 1ea Mobile signal MHL, 1ea DP |
|
Output Ports |
4ea HDMI |
|
Controller |
Remote & button |
|
Power Supply |
DC 12v |
|
Operation Ambient Temperature |
0 ~ 60 degrees |
|
Storage Temperature |
-20 ~ 70 degrees |
