Description

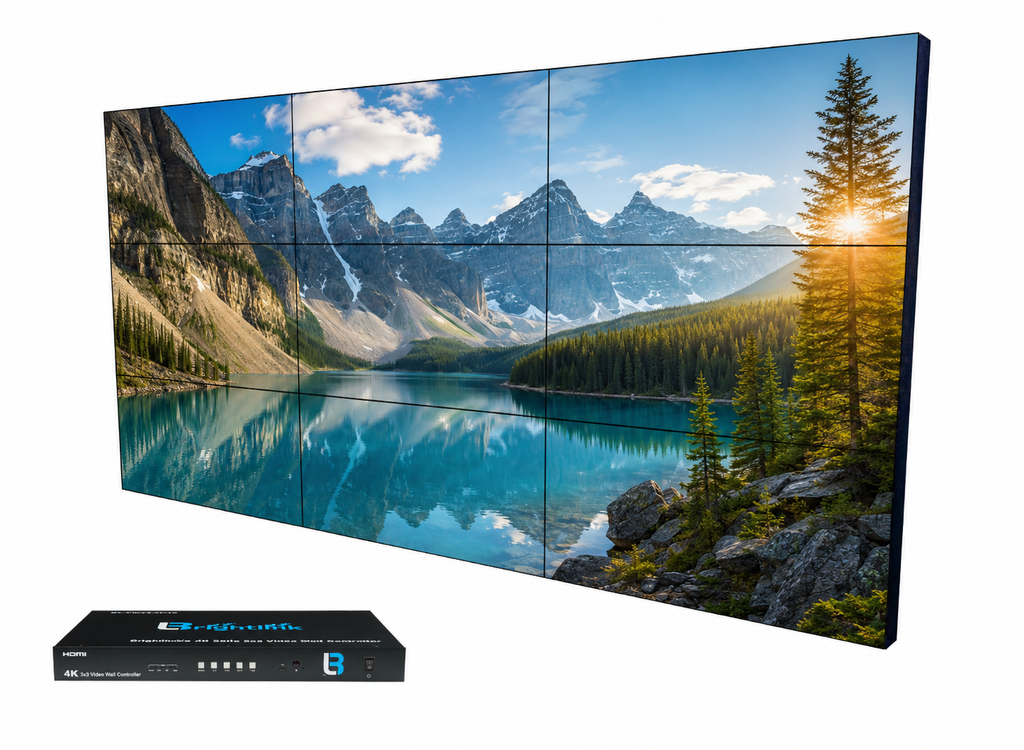

Introducing our custom 3x3 4K Video Wall package including 9ea 49” 1080P (4k /w Multi-Screen) Ultra Thin 1.75mm Bezel per side / 3.5mm total, Video Wall Displays & 1ea 3x3 4k Video Wall Controller, and 1ea 3x3 Aluminum Mounting bracket, allowing you to create an eye catching large scale 147" (diagonally) 4K display for your video content that is sure to grab the attention of any viewer.

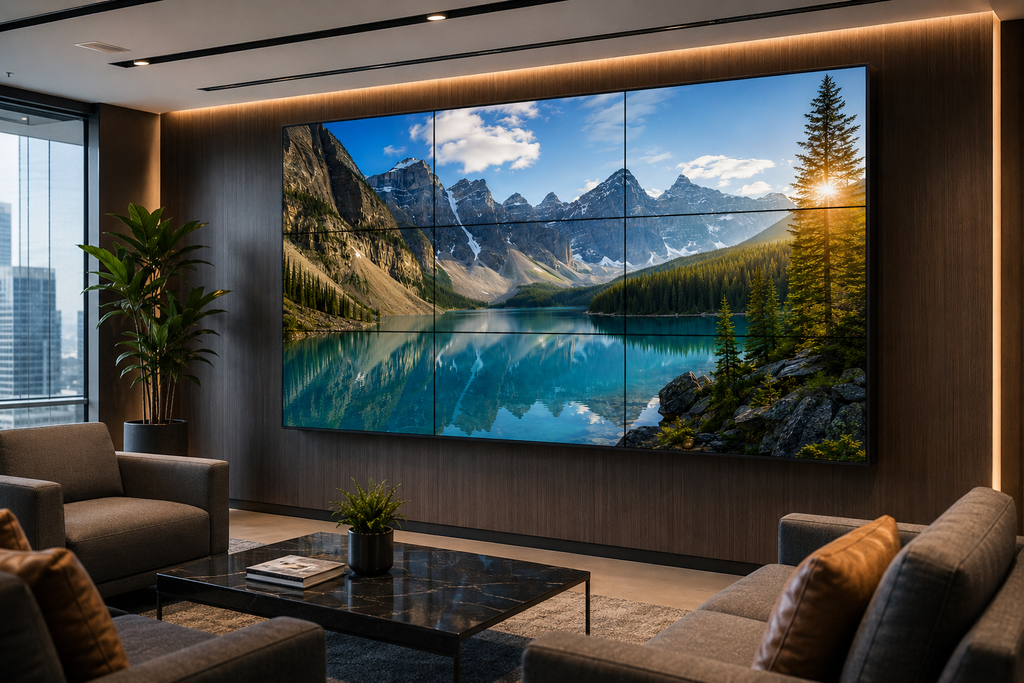

These 3x3 4k Video Wall Systems are an ideal solution for environments that require an effective large scale medium for displaying your digital signage / video content such as Casinos, Sports Bars, Super Markets, Shopping Malls, Air Ports, Churches, Data Control Centre, Conference Rooms, and Education and Training.
Please contact us if you require custom video wall packages in different configurations. sales@brightlinkav.com
DISPLAY INFO:

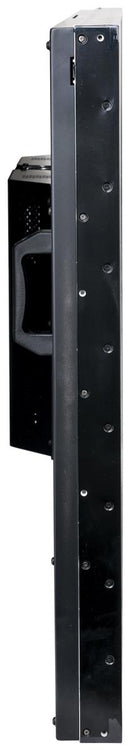

Introducing Brightlink’s New 49” 1080P Video Wall Display with Ultra-narrow 1.75mm bezel / frame (3.5mm total with multiple displays) allowing seamless viewing when using in a multiple screen Video Wall set up.
With the Max viewing angle of up to 178 degrees you can view your video wall from nearly every angle allowing your audience to easily view your content from every corner of your space.
These Video Wall Displays are designed to seamlessly fit together in configurations from 1x2, to 2x2, 2x3, 3x3, 4x4 and up, giving you a large scale, attention grabbing, medium to show your digital signage content.
When putting these 1080p displays together in a 2x2 configuration or up, you are able to display 4k (3840x2160p) content to give you an ultra sharp image. The 4k content gets divided over the 2x2 and up displays.
To distribute your 1080p or 4k source over your multi-screen configuration such as 2x2, 2x3, 3x3, 4x4, etc…, you can use one of our various Video Wall Controllers to easily achieve this by plugging your one HD source into the input and connecting each of your HD displays to the HDMI outputs via HDMI cables.
FEATURES:
- 49" Ultra-narrow 1.75mm bezel / frame (3.5mm total with multiple displays), enjoy seamlessly visual experience.
- High Performance 500cd/m Brightness
- Native resolution up to 1920×1080, viewing angle up to 178°.
- Built-in 3D noise reduction technology
- Embedded 3D color separation unit.
- High reliability, support non-stop work for 24 hours, suitable to use as monitor.
- Flicker free, less radiation, less heat release, no lead, mercury and other harmful substances.
- Particular block design supports multiple art combination. Maximum support（15×15）.
- Low power consumption, standby <3W。
- Integrated multi-channel video signal source, support HDMI, DVI, VGA, CVBS and USB video playback.
|
NAME |
SPECS |
|
LCD Panel |
|
|
Color temperature |
10000K |
|
Resolution (H x V) - Single Display |
1920p X 1080p |
|
Multi Scree Resolution |
Up to 3840x2160@60Hz when using multiple displays (example 2x2 video wall can support 4k image) |
|
Aspect ratio |
16:9 |
|
Contrast(Typical) |
1900-05-24 20:01 |
|
Display colors |
16.7M(8bit) |
|
Response time(typical) |
8ms |
|
View angle |
≥50,000hours |
|
Interface |
|
|
HDMI output |
1x HDMI interface input, support 1080P |
|
DVI |
1x DVI digital signal input, support 1080P |
|
VGA |
1x VGA analog signal input, support 1080P |
|
CVBS IN |
2x video input, support NTSC, PAL & SECAM. |
|
USB |
For software updating, HD base map function |
|
RS232 |
A serial port ring out controls A, adopt 568B standard |
|
RS232 |
A serial port ring out controls computer |
|
POWER SUPPLY |
|
|
AC Power range |
100V-240V |
|
Working temperature |
0~50℃ |
|
Working humidity |
10~90% RH |
|
Accessories |
|
|
Power cable |
YES |
|
Remote control |
YES |
|
Mounting Bracket Spacers |
YES |
|
WARRANTY |
|
|
YES, one-year warranty. During this period, if any defective happen due to manufacturing issues, Brightlink AV will offer all necessary parts free of charge. |
|
IR & 3RD PARTY CONTROL CONNECTION GUIDE
VIDEO WALL CONTROLLER INFO:
Introducing Brightlink’s New 3x3 4K Ultra UHD 3840x2160@60HZ HDMI 2.0 multi screen Video Wall Controller with 1x HDMI 2.0 in, 1x HDMI 1.4 in, & 1 x DP inputs.
The main function of this 4K Video Wall Controller is to display a 3840*2160 Ultra HD 4K image spread across 9 Displays in the default configuration of 3x3 to create a gigantic eye catching Video Wall that is sure to catch the attention of anyone who sees it.
This controller also supports 1x3,1x4,1x5,1x6, 2x3, 2x8, as well as 2x3 + 1x3 at the same time using two separate inputs.
The 4K Video Wall Controller uses the DSP+FPGE advanced image processing technology and along with the Max HDMI input signal of HDMI 2.0 (HDCP2.2) 3840x2160@60HZ, you are able to view fast motion dynamic pictures with no delay or frame lost giving you a crisp clear image that is sure to impress.
This 4K Video Wall Controller is ideal for environments where superior performance and crisp clear high resolutions are required to display your video content / digital signage over many displays in large format.
Common application includes exhibition halls, trade shows, map display system, GPS positioning system, oil monitoring, satellite positioning, conference rooms, Education and tanning, Casinos, hotels, and many other environments where large format multi-screen displays are required while at the same time having a clear detailed image in order to show your content and information easily to any viewer at various distances.
FEATURES:
- 3X3 Video Wall Controller 1x HDMI 2.0 in, 1x HDMI 1.4 in, & 1 x DP in.
- Max resolution up to 4K@60hz 4:4:4, HDCP 2.2DP 1.1 max 4K@60hz
- Supports 2x3, 2x4, 1x6, 1x8, 1x9, as well as default 3x3 Video Wall Mode.
- Supports multi input on screen such as PIP, 2PTR, 2PLR, etc..
- Easy to set-ip and control, supports control via front panel buttons and remote
- Supports image rotation of 90°, 180°, 270° and mirror left and right, flip up and down.
- Supports 3.5mm analog audio out
- Supports auto adjust border function and crop image function (display without black edges).
- Supports roaming window and input of controller can be resized and placed in any position on screen
- Supports intelligent temperature control protection technology making this controller’s heat dissipation performance more stable, reliable and durable.
- Built in silent smart fan, no noise in work environments
3x3 Aluminum Mounting bracket:
- Supports 3x3 Mounting configuration on flat wall.
