Description
- 9xHDMI input, 9xHDMI loopout, 9xHDMI output and 9xDSC output(POC)
- Support resolution up to HDMI 1.4v 4K30Hz 4:4:4, deep color 12bit, bandwidth 10.2Gbps
- Support transmit upto 70m under 4k@30hz or 1080p@60hz by connecting with receiver
- Support video signal seamless switching; Video wall; Preset setting, etc
- Support Balanced Audio Extraction
- Support Panel Button, IR Remote, TCP/IP control, RS232 Commands control
- With Built-in EDID (4K30Hz, 1080P)
- HDCP 2.2/1.4 compliant
- Support Micro USB for firmware updating
- Video wall mode (Max 3x3) support adjust the screen edge
- Support cascade to create max 10×10 videowall, 180°rotation, and mirror function
Description:

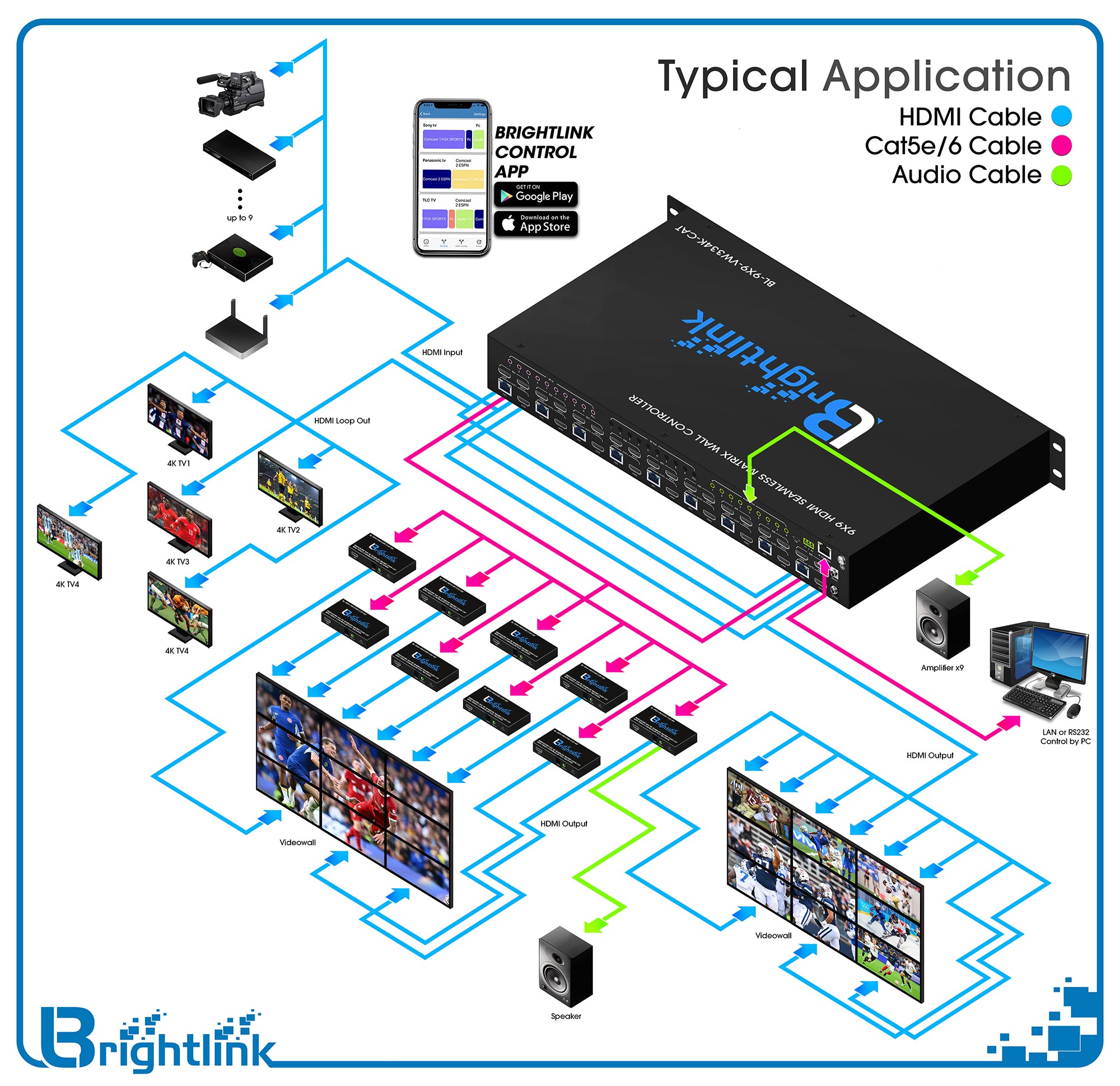

Brightlink 9x9 4k@30hz Seamless Matrix with 3x3 Video Wall controller.
This seamless 9x9 Matrix allows any Input to be routed to any output via either HDMI or Cat5e/6 Cable upto 90m away to the Cat5e/6 Receivers with HDMI out. This system comes with 9 Receivers which are POE/POC ( no power needed for receivers. Power comes from Cat Cable from Matrix system).
Technical Specifications:
- Input Port 9XHDMI
- Output Port 9XHDMI, 9XCat5e/6 Outport, 9x HDMI Loopout
- INPUT Resolution 3840 x 2160 @60 Hz 4:4:4, 8Bit
- OUTPUT Resolution Loopout: 3840 x 2160 @60 Hz 4:4:4,
- HDMI Out: 3840 x 2160 @30 Hz 4:4:4, 8Bit
- Compliance Standards HDMI 2.2/HDCP1.X
- Pixel Clock 340MHZ
- Maximum Data Rate 10.2Gbps
- Audio Format 2CH PCM
- Baud Rate 9600-115200
- Telnet IP Address: 192.168.1.168
- Net Mask: 255.255.255.0
- Gateway:192.168.1.1
- TCP Port: 5000
- Telnet Port: 23
- HDCP: OFF
- Control Panel buttons, remote control, RS-232 , Web GUI,IP
- Operating Temperature 0 to + 40°C (32 to + 104 °F)
- Storage Temperature -20 to +60°C (-4 to +140 °F)
- Humidity 10% to 90%, non-condensing
- Product Supply 12V
