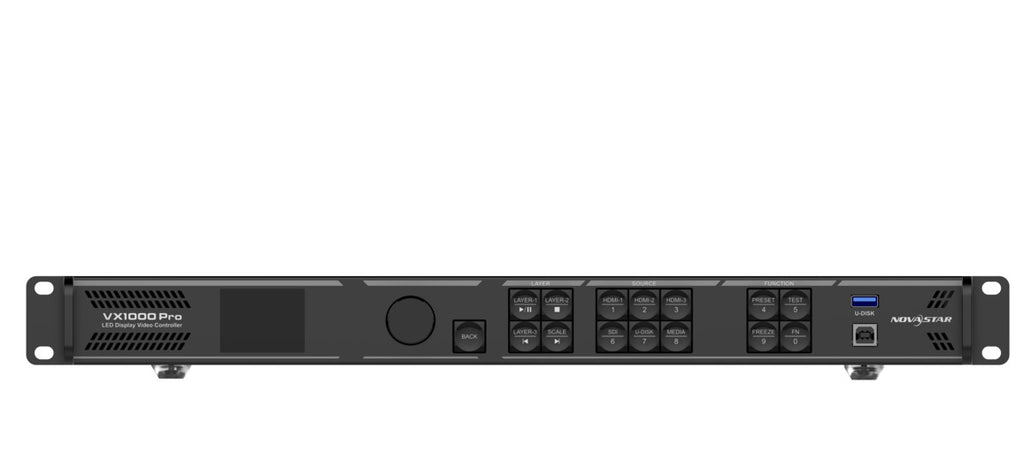

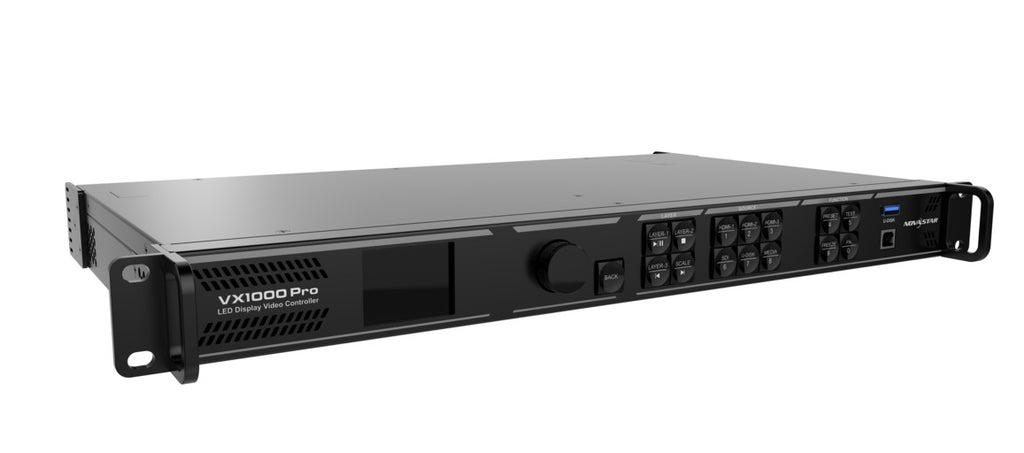

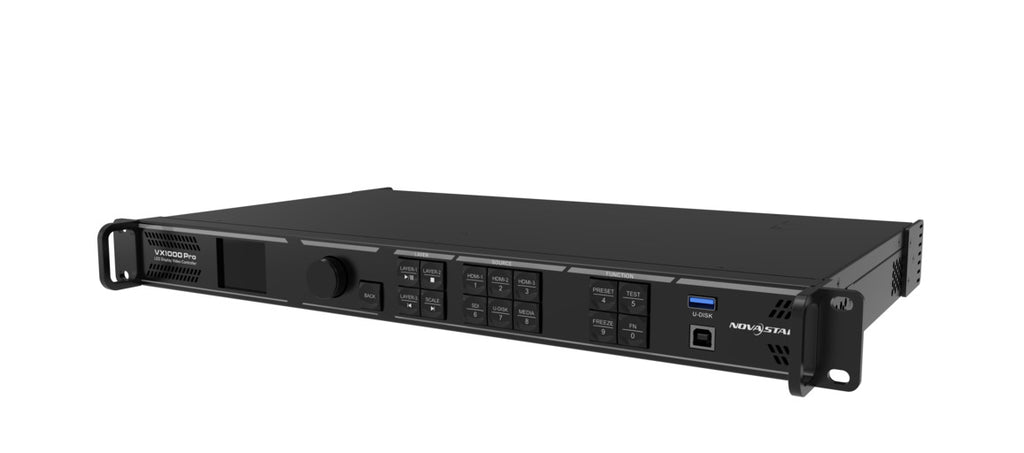

Main Features & Benefits VX1000 Pro
- All-in-One Design: Combines a video processor and LED sending controller in one device, reducing system complexity and cost.
- 4K Input Support: Accepts high-resolution video sources up to 4K@60Hz for crystal-clear image quality.
- Powerful Scaling Engine: Scales and maps video to custom LED wall resolutions, including ultra-wide and ultra-tall displays.
- Multi-Layer Processing: Supports up to six layers for picture-in-picture, logos, overlays, and dynamic content.
- Genlock Synchronization: Ensures frame-accurate synchronization with broadcast and production systems.
- Optical Fiber Transmission: Built-in 10G fiber outputs allow long-distance signal transmission.
- Low Latency / Bypass Mode: Ideal for live events and IMAG applications where minimal delay is essential.
- Pixel-Level Calibration: Maintains uniform brightness and color across all LED modules.
Technical Specifications
| Specification Details: |
| Pixel Capacity: 6.5 million pixels |
| Max Width: 10,240 pixels |
| Max Height: 8,192 pixels |
| Video Layers: 6 |
| Presets: 256 |
| Input Resolution: Up to 4096 × 2160 @ 60Hz |
| Ethernet Outputs: 10 x RJ45 Gigabit |
| Fiber Outputs: 2 x 10G SFP+ |
| Working Modes: Video Controller, Fiber Converter, Bypass |
| Power Supply: AC 100–240V, 50/60Hz |
| Power Consumption: Approx. 44W |
| Dimensions: 482.6 × 302.2 × 50.1 mm |
| Weight: 3.9 kg (8.6 lb) |
| Rack Size: 1U |

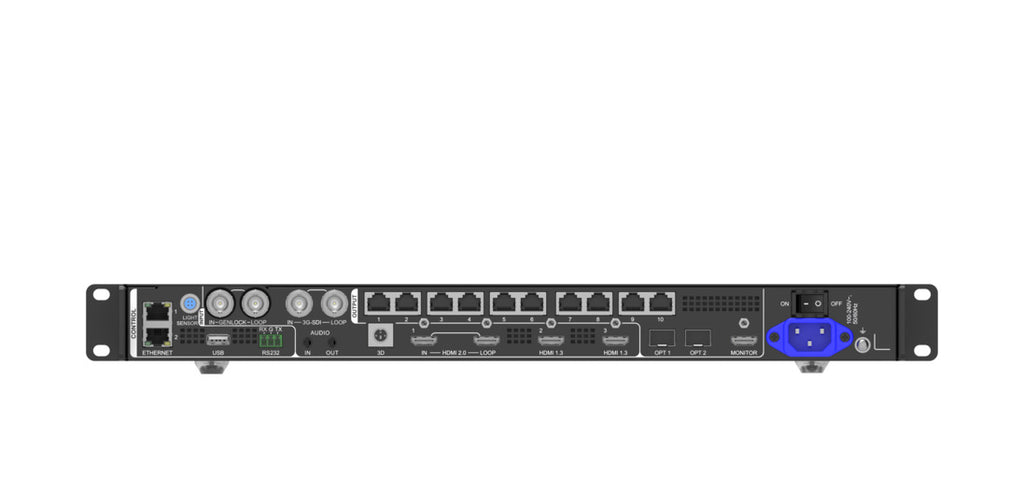

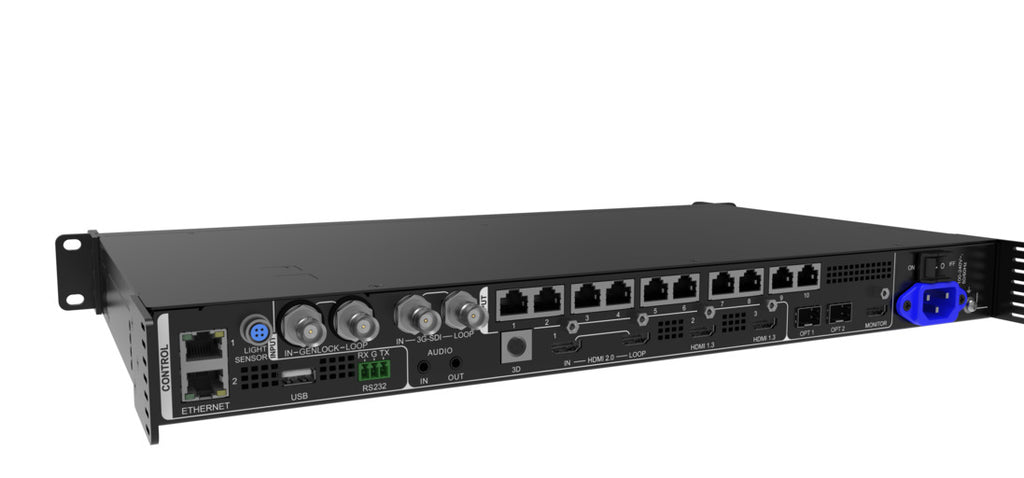

Input Connectors
| 1 × HDMI 2.0 Input |
| 1 × HDMI 2.0 Loop Output |
| 2 × HDMI 1.3 Inputs |
| 1 × 3G-SDI Input |
| 1 × 3G-SDI Loop Output |
| 1 × USB 3.0 |
| 1 × Audio Input (3.5 mm) |
| 1 × Genlock Input |
| 1 × Light Sensor Port |
Output Connectors
| 10 × Gigabit Ethernet Ports |
| 2 × 10G Optical Fiber Outputs |
| 1 × HDMI Monitoring Output |
| 1 × Audio Output (3.5 mm) |
Typical Applications
| LED Video Walls |
| Churches and Houses of Worship |
| Live Events and Concerts |
| Corporate Presentation Systems |
| Broadcast Studios |
| Retail Digital Signage |
| Rental and Staging |
| Included Features |
| 4K Video Processing |
| 3D Support |
| Genlock Synchronization |
| Free Layer Layout |
| Low Latency Mode |
| Brightness and Chroma Calibration |
| Web-Based Remote Control |
| USB Media Playback |
Product Downloads
- VX Pro Series All-in-One Controller User Manual-V1.3.1 Download
