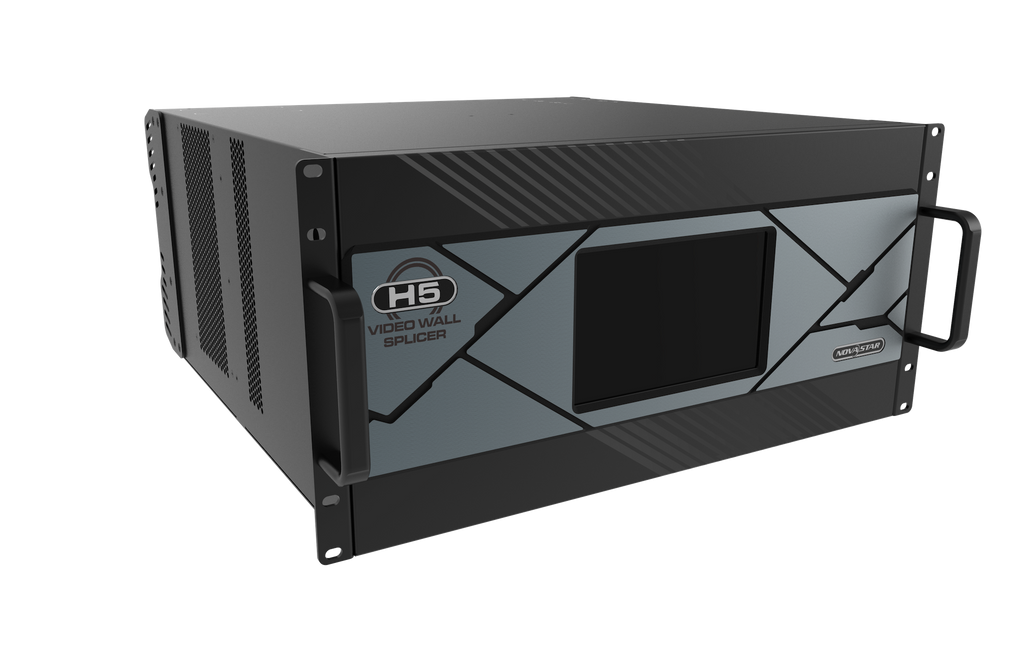

Novastar H Series H5 Video Splicer
Specification & Features
| Specification: |
| General: |
| Model: H Series H5 |
| Form Factor: 5U rackmount |
| Pixel Capacity: |
| Up to 62.4 million pixels |
| Up to 39 million pixels (standard configuration) |
| Maximum Resolution: |
| Single Video Connector: |
| Max width: 2,560 pixels |
| Max height: 2,560 pixels |
| Single Ethernet Port: |
| Max width: 10,752 pixels |
| Max height: 10,752 pixels |
| Single OPT (Optical) Port: |
| Max width: 16,384 pixels |
| Max height: 16,384 pixels |
| Layering: |
| Layers Per Card: Up to 16 layers per card |
| Preset Playlists: |
| Preset Playback Support: Up to 2000 playlists |
| Control Interfaces: |
| TCP/IP |
| RS232 |
| Input Card Options: |
| H_4xDVI Input Card: 4 DVI inputs |
| H_4xHDMI Input Card: 4 HDMI inputs |
| H_2xHDMI2.0 + 2xDP1.2 Input Card: 2 HDMI 2.0 + 2 DisplayPort 1.2 inputs |
| H_1xHDMI2.0 + 1xDP1.2 Input Card: 1 HDMI 2.0 + 1 DisplayPort 1.2 input |
| H_1xHDMI2.0 Input Card: 1 HDMI 2.0 input |
| H_1xDP1.2 Input Card: 1 DisplayPort 1.2 input |
| H_2xHDMI2.0 Input Card: 2 HDMI 2.0 inputs |
| H_2xRJ45 IP Input Card: 2 RJ45 IP video inputs |
| H_4x3G SDI Input Card: 4 3G SDI inputs |
| H_1x12G SDI Input Card: 1 12G SDI input |
| H_2xCVBS + 2xVGA Input Card: 2 composite video inputs + 2 VGA inputs |
| H_2xDP1.1 Input Card: 2 DisplayPort 1.1 inputs |
| H_4xVGA Input Card: 4 VGA inputs |
| H_2xAudio Input + 2xAudio Output Card: Audio input/output card |
| H_4xHDBaseT Input Card: 4 HDBaseT inputs |
| H_STD I/O Card: Standard input/output card |
| Output Card Options: |
| H_4xDVI Output Card: 4 DVI outputs |
| H_4xHDMI Output Card: 4 HDMI outputs |
| H_1xHDMI2.0 Output Card: 1 HDMI 2.0 output |
| H_16xRJ45 + 2xFiber Sending Card: 16 RJ45 + 2 fiber outputs |
| H_4xFiber Sending Card: 4 fiber outputs |
| H_20xRJ45 Sending Card: 20 RJ45 outputs |
| H_4x3G SDI Output Card: 4 3G SDI outputs |
| H_4xHDBaseT Output Card: 4 HDBaseT outputs |
| H_2xRJ45 + 1xHDMI1.3 Preview Card: 2 RJ45 outputs + 1 HDMI 1.3 preview |
