Key Features
- High Input Flexibility: supports multiple simultaneous input sources Full HD and 4K
- Plug-in input + output card architecture
- Handles HDR10, HLG, 10-bit processing
- Hot-swappable cards for easy maintenance
- Massive LED Output Capacity: high-capacity Ethernet output for large LED walls
- Supports very large LED walls and multi-screen systems
- Each output card supports independent mapping and resolution
- Powerful Multi-Layer Processing - Up to 16 layers per output card
- PIP (Picture-in-Picture), Overlays, Scaling / cropping per layer
- Real-time preview monitoring for efficient control
- Fully Modular Hardware Design - Hot-swappable cards for easy maintenance
- Optimized for professional LED display systems
- Redundancy & Reliability Features
- Form Factor: 9U rackmount
- Control Interfaces: WEB GUI, TCP/IP, RS232

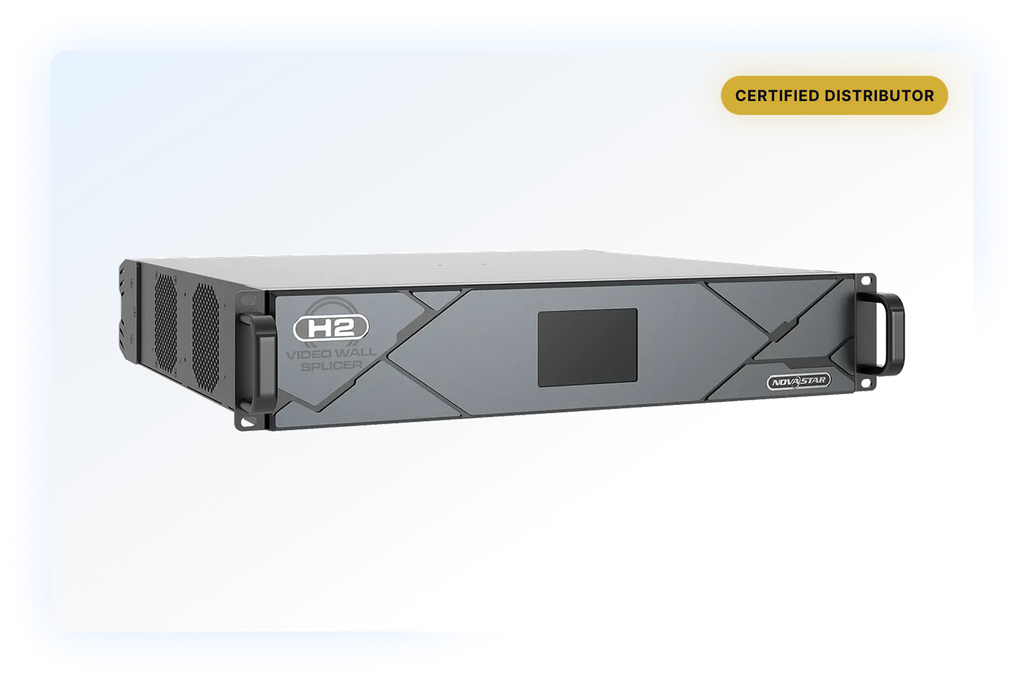

Key Features (H2 Platform)
- Modular Architecture:
- Compact modular design
- Hot-swappable cards
- Flexible input/output configuration
- Processing Power:
- Up to ~10 million pixels (depending on configuration)
- Supports multiple layers
- Optimized for smaller-scale LED systems
- Advanced Video Processing:
- HDR support
- 10-bit color processing
- Low latency (~1 frame)
- Flexible Screen Control:
- Supports irregular LED wall layouts
- Independent screen configuration
- Seamless scaling and switching
- Reliability & Redundancy:
- Stable, professional-grade operation
- Card-level monitoring
- Hot-swappable modules
- Control & Integration:
- Web-based control interface
- Ethernet control support
- Multi-user operation
Technical Specifications
- Chassis & Capacity:
- Compact rackmount design (H2 series)
- Modular input/output card structure
- Pixel Capacity (Your Build):
- 1× 16-port card:
- ~10.4 million pixels theoretical
- Recommended usable:
- ~8–10 million pixels
- Input Resolution Support:
- HDMI 2.0
- Up to 4096×2160 @ 60Hz (4K60)
- HDMI 1.3 / 1.4
- Up to 1920×1080 @ 60Hz (Full HD)
- Layering:
- Supports multiple layers (system dependent)
- Suitable for basic multi-window layouts
- Output (RJ45):
- 16× Gigabit Ethernet outputs
- Typical per-port load:
- ~650K pixels
- Other Specs:
- HDR: Yes
- HDCP support
- Frame synchronization
- Multi-screen support
Your Specific Configuration
| Input Cards: |

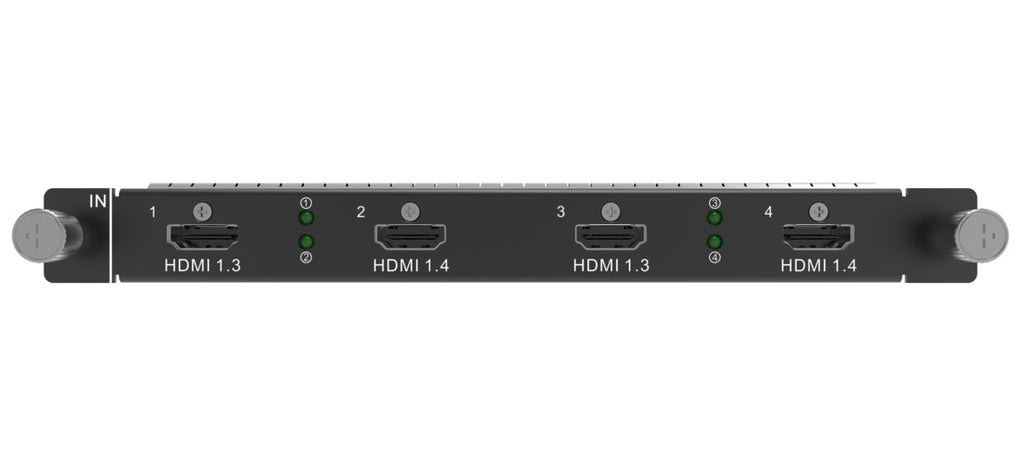

| 1× H_4x HDMI input card |
| 4× HDMI 1.3 / 1.4 inputs (Full HD 1080p) |

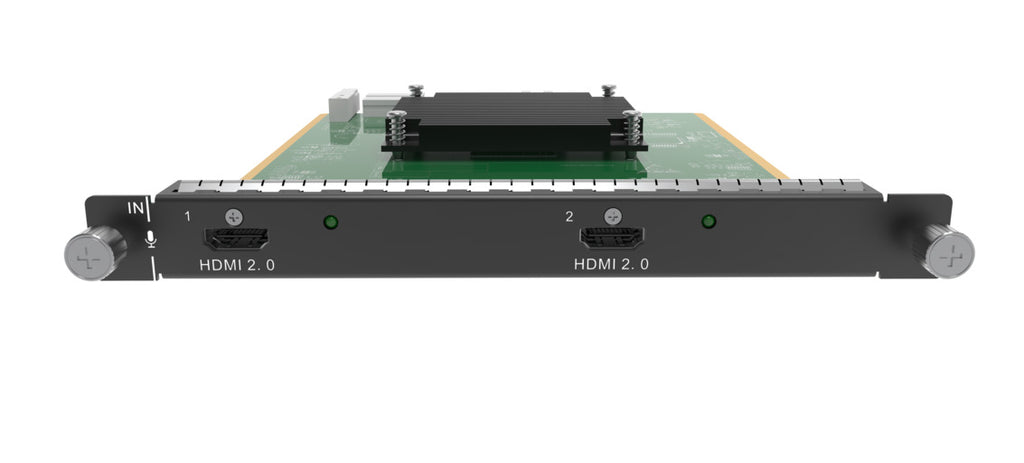

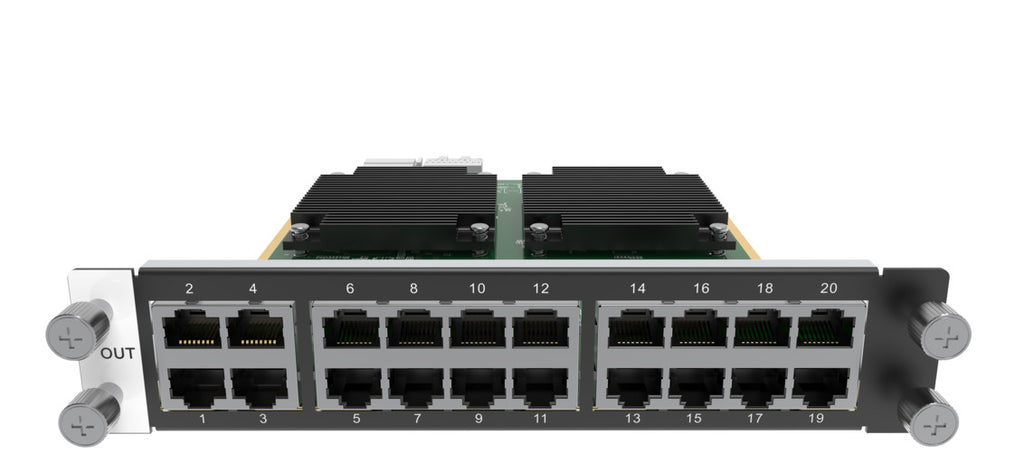

| 1× H_2x HDMI 2.0 input card |
| 2× HDMI 2.0 (Full UHD 4K@60Hz capable) |
| Total Inputs: |
| 6× HDMI inputs (1080p + 4K mix) |
| Output Cards: |
| 1× H_16x RJ45 output card |
| 16 ports → 16× CAT6 Ethernet outputs total |
| Supports up to ~10.4 million pixels |
| Estimated Total Output Capacity: |
| ~10 million pixels usable (typical real-world range) |
| Preview / Monitoring: |

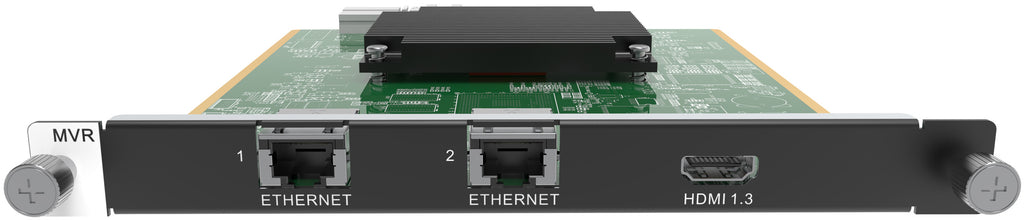

| 1× Preview card |
| HDMI output for real-time monitoring |
| Multiview / confidence display |
