PRO SPECTRUM SERIES

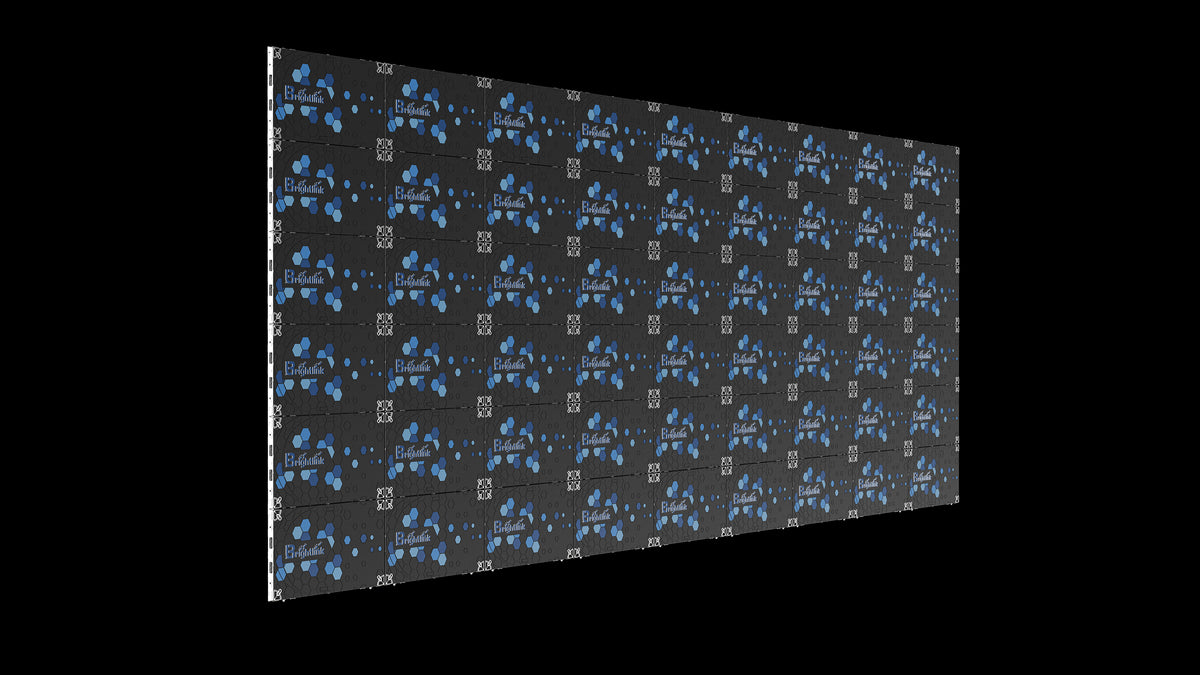

217" COB LED Video Wall
The Pinnacle of Visual Excellence
True 4K resolution. 600 nits brightness. 100,000-hour lifespan. The world's most advanced LED video wall technology.
$149,000.00(16% Discount)
217"
Diagonal Display
8.3M
Total Pixels
1.25mm
Pixel Pitch
2hrs
Installation Time
217"
Diagonal Display
8.3M
Total Pixels
1.25mm
Pixel Pitch
2hrs
Installation Time
Trusted By Industry Leaders
SpaceX
University of Hawaii
Epic Games
City of Mesa
SpaceX
University of Hawaii
Epic Games
City of Mesa
PRODUCT SHOWCASE
Experience Premium Engineering
Every detail crafted for visual excellence

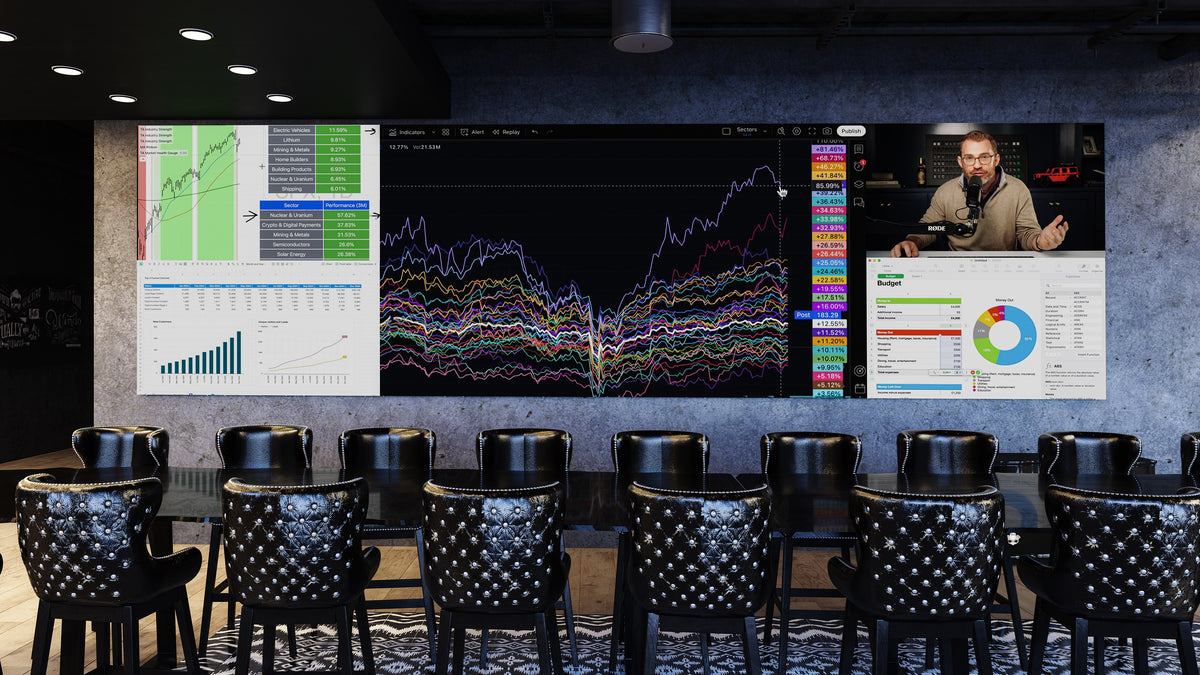

Real-Time Financial Data at Scale
Immersive Entertainment
Corporate Communications
COMPETITIVE ADVANTAGES
Why Brightlink Pro Leads the Industry
Three critical differentiators that set us apart from traditional display technologies
2-4 HOURS
Complete Installation
- Modular panel system with quick-connect technology
- Pre-calibrated modules eliminate setup time
- Integrated cable management reduces complexity
- Single-person installation capability
100% FLAT
True Flat Surface
- COB technology eliminates thermal expansion issues
- Sub-millimeter panel alignment tolerance
- Maintains perfect geometry across entire surface
- No visible seams or panel separation
100,000 HRS
Lifespan Guarantee
- Advanced thermal management extends component life
- Maintains 90% brightness after 50,000 hours
- Redundant power systems prevent failures
- Front-serviceable modules minimize downtime
$19,250.00 (30% Deposit)
TECHNICAL SPECIFICATIONS
Engineering Excellence
Every specification designed for uncompromising performance
8.2M PIXELS
True 4K Resolution
3840 x 2160 active pixels
1.25MM
Ultra-Fine Pitch
Cinema-grade clarity
3840HZ
High Refresh Rate
Zero flicker, smooth motion
600-1000
Nits Brightness
HDR-capable, adjustable
8000:1
Contrast Ratio
Deep blacks, vivid colors
170°
Wide Viewing Angle
Consistent from all positions
25MM
Ultra-Slim Profile
Industry's thinnest at 1 inch
3.78KG / 8.3LB
Lightweight Design
Size per cabinet
$19,250.00 (30% Deposit)
PRODUCT INTELLIGENCE CENTER
Complete Product Intelligence
Comprehensive specifications, features, and technical documentation in one elegant interface
Meet the Brightlink Pro Spectrum COB LED Video Wall in our 217" Diagonal configuration. This 15.75' x 8.86' masterpiece delivers
8,294,400 pixels at 1.25mm pitch - true 4K resolution with HDR support.The Pro Spectrum represents the pinnacle of COB technology.
True pixel-to-LED resolution, high dynamic range, and superior contrast deliver visuals that feel alive. Crystal-clear text, rich
blacks, and motion that stays smooth even in fast-paced content.
4-Year Warranty
Comprehensive coverage for complete peace of mind
Lifetime Support
Expert technical assistance whenever you need it
5% Spare Parts
5% spare modules included with every system
| Pixel Pitch | 1.56mm | LED Type | COB (Chip-on-Board) |
| LED Packaging | TOP | LED Configuration | 1R 1G 1B |
| Module Resolution | 320 x 270 pixels (W×H) | Cabinet Resolution | 480 × 270 pixels (W×H) |
| Screen Resolution | 3840 × 2160 pixels (Full 4K) | Total Pixels | 8,294,400 |
| Scanning Method | S45 | Refresh Rate | ≥3840Hz |
| Drive Mode | 1/43s | Brightness | 600cd/m² (Standard), 1000cd/m² (Optional) |
| Contrast Ratio | ≥8000:1 | Colors | 281 Trillion |
| Gray Scale | 16-bit | Color Temperature | 3000~9500K (Adjustable) |
| Luminance Uniformity | ≥98% | Chromatic Uniformity | ±0.003Cx,Cy |
| Viewing Angle | 170° Horizontal / 160° Vertical (>50%) | View Distance | 2m - 50m (6' - 165') |
| Frame Rate | 50/60Hz |
| Module Size | 150mm × 337.5mm (W×H) | Module Weight | 340g ±10g |
| Cabinet Size | 600mm × 337.5mm × 50mm (W×H×D) | Cabinet Size (Imperial) | 23.62" × 13.3" × 1" |
| Cabinet Weight | 6.5kg | Screen Dimensions | 4.8m × 2.7m (15.75' × 8.86') |
| Screen Diagonal | 217 Inches | Total Screen Area | 12.96m² (141 sq ft) |
| Cabinet Quantity | 64 units (8 wide × 8 high) | Modules per Cabinet | 4 units (1 wide × 4 high) |
| Cabinet Material | Die-cast Aluminum | Aspect Ratio | 16:9 |
| Installation Type | Wall mount, stacking, or hanging | Service Access | 100% front serviceable |
| Protection Level | IP30 |
| Input Voltage | AC 100-240V, 50/60Hz | Supply Voltage | DC 4.2V |
| Maximum Current (per module) | 4A | Peak Power Consumption | ≤350W/m² |
| Average Power Consumption | 63W/m² | Power Interface | Three-pole flat connector |
| Signal Interface | RJ45 (Ethernet) | Control Mode | Synchronous or Asynchronous |
| Standard Receiver Card | A10S-PLUS-N / A8S-N / A8S-PRO |
| Operating Temperature | -20°C to +50°C (-4°F to 122°F) | Storage Temperature | -40°C to +70°C (-40°F to 158°F) |
| Operating Humidity | 10% - 95% RH (non-condensing) | Storage Humidity | 10% - 95% RH (non-condensing) |
| Lifespan | ≥100,000 hours | MTBF | ≥10,000 hours |
| Certifications | CE, RoHS, FCC, CCC, ISO9001 | Waterproof | Yes (sealed modules) |
| Dustproof | Yes | Anti-oxidation | Yes |
| Anti-static | Yes | Anti-impact | Yes (COB protective layer) |
Download Complete Specifications
Access detailed technical documentation, CAD files, and integration guides
Quick Connect Locking System
Revolutionary cabinet assembly with our Quick Connect system. Secure each cabinet into place with a single turn of the integrated locking mechanism. Superior alignment efficiency and simplicity in professional installations.
Ultra-Slim Profile
Industry-leading slim design at just 25mm (1 inch) deep, integrating into 2 Tog (0.5 inch) wall systems. Significantly lighter than traditional LED displays, reducing structural requirements and broadening installation flexibility in space-constrained applications.
Integrated Power & Network Hub
Simplified cable management. Modular cables and separate power supplies with required wire links. Enjoy a clean, efficient design while reducing potential points of failure and improving maintenance access.
Optimized Module Configuration
Fewer LED modules needed per cabinet without reduced visual impact due to COB's improved brightness per module design. This configuration improves systematic efficiency, reduces components, and simplifies both installation and future maintenance.
True Flat LED Modules
Perfectly flat COB delivers continuous viewing experience. No gaps or bezels between modules creating a completely uniform, single-surface visual, achieving a high-end premium seamless aesthetic that enhances overall visual appeal.
Superior Contrast Ratios
COB technology offers 6,000:1 contrast backed by a matte, black-coated fill providing an extremely low reflectivity and higher contrast display. This results in deeper blacks and more vibrant images at all ambient lighting.
High Dynamic Range (HDR)
HDR technology delivers a superior visual experience with expanded brightness range, creating more realistic highlights, richer mid-tones, deeper shadows that capture viewer attention in any lighting environment.
Wide Viewing Angles
170° horizontal and 160° vertical viewing angles ensure consistent image quality from virtually any position in the room.
64 Cabinets
64 LED Cabinets
8×8 array configuration for stunning 4K resolution
1 Unit
NovaStar H2 Controller
$8,500 value included - professional-grade video processor
Complete Kit
Professional Mounting System
Wall mount hardware and structural support system
Full Set + Spares
Complete Cable Package
All power and data cables with spares included
2 Tools
5% Spare Modules
Extra modules for quick field replacement
Integrated Set
4-Year Warranty
Comprehensive coverage with lifetime technical support
Complete Set
Technical Documentation
Full spec sheets, mounting drawings, wiring diagrams, NovaStar manuals, quick start guides, and installation instructions.
4 Years
Comprehensive Warranty
4-year comprehensive warranty covering all components, modules, and system failures. Lifetime technical support included.
1
Preparation
15 MINUTESSite preparation, wall mounting rail installation, power/data infrastructure verification.
2
Cabinet Assembly
75 MINUTESQuick Connect cabinet linking in 8×8 configuration. Lock mechanisms engage with simple turns.
3
Connections
20 MINUTESIntegrated power and network hub connections. Organized cable routing through cabinet management.
4
Calibration
10 MINUTESNovaStar H2 configuration, color calibration, brightness uniformity adjustment.
Installation Requirements
Power Requirements
Standard AC 100-240V, 50/60Hz. Maximum draw: 5.6kW (peak). Average consumption: 2.7kW. Dedicated 30A circuit recommended.
Space Requirements
Display: 15.75' × 8.86' (4.8m × 2.7m). Depth: 1" (25mm) + mounting rail. Clearance: 6" front access minimum. Weight: 242kg (534 lbs) total
Environmental
Temperature: -20°C to +50°C. Humidity: 10-95% RH (non-condensing). Ventilation: Standard room airflow. Indoor installation recommended.
Need Professional Installation Support?
Our certified installation partners provide white-glove service nationwide. Contact us for installer recommendations in your area.
Support & Resources
Pro Spectrum Spec Sheet
Complete technical specifications for Pro Spectrum COB LED series. Includes display, electrical, and environmental specs.
LED Viewing Distance Guide
Comprehensive guide for calculating optimal viewing distances and pixel pitch selection for LED video walls.
Mounting Frame Drawings
Detailed CAD drawings for BL-PS-COB-LED-217 8×8 configuration. Includes dimensions and mounting specifications.
Power & Network Diagrams
Complete wiring diagrams for power distribution and network connections in 8×8 cabinet array configuration.
NovaStar H2 Quick Start
Quick start guide for NovaStar H2 controller setup, initial configuration, and basic operation.
NovaStar H2 User Manual
Complete user manual for NovaStar H2 video processor. Covers advanced features, troubleshooting, and specifications.
NovaStar H2 Specifications
Detailed technical specifications for NovaStar H2 including I/O configurations, processing capacity, and features.
COB vs GOB Comparison Chart
Side-by-side comparison of COB and GOB LED technologies. Understand the advantages of COB for professional applications.
Lifetime Technical Support
Even after warranty expires, full support continues.
INCLUDED
SYSTEM ARCHITECTURE
System Configuration
Precision-engineered 8×8 cabinet array delivering 8.2 million pixels across 217 inches of seamless display surface
PIXEL PERFECT
Precision Alignment
SEAMLESS
Zero Bezel Gap
MODULAR
Easy Assembly
Individual Cabinet Detail
Precision-engineered modular unit
Dimensions
600mm × 337.5mm × 25mm
Imperial
23.62" × 13.3" × 1"
Weight
3.7kg (8.3 lbs)
Resolution
480 × 270 pixels
Module Count
4 COB modules
Cabinet Connection Detail
Quick Connect locking mechanism
Quick Connect Locking
Tool-free installation system
Precision Alignment
Self-aligning mechanical system ensures perfect cabinet registration
Secure Locking
Patented quick-release mechanism with safety lock indicators
Hot-Swappable
Replace cabinets without powering down the entire system
Cable Management
Integrated routing channels for clean professional installations
Get Your LED Specifications in 60 Seconds
Professional pixel pitch and screen sizing calculator for optimal viewing experiences
$19,250.00 (30% Deposit)
IMMERSIVE DISPLAY
Experience the Scale
217 inches of immersive visual excellence
Pixel Perfect
Crystal clear visuals at any distance
Seamless Integration
Fits any space perfectly
Professional Grade
Commercial reliability
36x
Larger
than a typical 65" TV
4x
Equivalent
to 17' diagonal display
141
sq ft
of visual real estate
PROFESSIONAL VIDEO WALL CONTROLLER
NovaStar H2 Controller
Enterprise-grade processing power for mission-critical video wall installations
Authorized NovaStar Partner
CERTIFIED DISTRIBUTOR
Your Configuration Includes:
- 4× Full HD 1080p input cards
- 1× HDMI 2.0 input card (4K@60Hz)
- 32× CAT6 Ethernet outputs (2×16-port cards)
- 1× Preview card for real-time monitoring
The NovaStar H2 is a powerful, modular video wall splicing processor designed specifically for fine-pitch LED displays. With 26 million pixels of processing capacity and hot-swappable I/O cards, it supports HDMI, DVI, DisplayPort, SDI, VGA, and IP inputs.
- 26 million pixel processing capacity
- Up to 32 layers and multiple screens
- HDR10 and HLG support
- 10-bit color processing
- Web-based control interface
- Real-time monitoring and diagnostics
- Real-time monitoring and diagnostics
Complex Integration
The H Series integrates splice processing and display control through module mainframe connectivity, offering a simplified All-in-One structure. This reduces equipment failure rates and improves operation and maintenance.
True 4k
The H Series provides true 4K (4K x 2K @ 60Hz, RGB 4:4:4, 10bit) signal collection, processing, and output, ensuring ultra-high resolution displays for professional-grade environments.
60fps Processing
The system supports input and output signal processing at full 60FPS, ensuring smooth visuals with no lag or frame loss. This delivers a flawless display experience.
Image Quality
Support for HDR, wide color gamut transmission, high contrast, and abundant colors, those all provide more details in both light and shadow.
Flexibility
The H Series supports numerous layers with an unrestricted arrangement. Each output display/board provides 16 layers (up to 18 layers maximum per port). The layers can freely cross different output loading areas while keeping layer size the same. Layers can be in any position, overlapped, or unlimited scaled. It supports functions such as image capture, layer configuration, layer flip, and more. This all helps you realize your creativity and create a captivating visual effect.
VERSATILE APPLICATIONS
Built for Every Environment
From boardrooms to broadcast studios, Pro Spectrum delivers uncompromising performance across diverse professional settings
Common Configuration
Size
Large LED arrays
Brightness
2,500 nits
Mounting
Freestanding or wall-mounted
Resolution
1.7M to 11.5M pixels
Controller
NovaStar H2/H5
Integration
CMS & scheduling systems
Digital Signage
Pro Spectrum's digital signage solutions bring your content to life with vibrant, high-resolution displays, perfect for any environment requiring dynamic, real-time content updates. Elevate your message and capture attention with unmatched clarity and color.
Ideal for retail stores, airports, malls, and digital billboards where visual communication is key. These displays seamlessly blend into public spaces, providing clear, engaging content that draws the eye.
Why Pro Spectrum?
- 24/7 operation with 100,000-hour lifespan
- Anti-reflective surface for bright environments
- CMS-ready for remote content management
- Energy efficient (<190W/m² average)
- Impact-resistant COB technology
- Wide viewing angles for passing traffic
- Scalable architecture for future expansion
Common Configuration
Size
4×3 to 12×8 arrays
Brightness
1000 nits (optional)
Mounting
Recessed or freestanding
Resolution
1.7M to 11.5M pixels
Controller
NovaStar H2/H5
Integration
CMS & scheduling systems
Executive Boardrooms & Conference Centers
Captivate audiences in high-traffic environments with vibrant, attention-grabbing displays. Pro Spectrum's 8000:1 contrast ratio and 281 trillion colors ensure your content stands out in any lighting condition—from sunlit lobbies to dimly lit galleries.
Ideal for corporate lobbies, museums, transportation hubs, and public spaces where visual impact drives engagement. The seamless, bezel-free design creates an uninterrupted canvas that elevates brand presence and delivers messages with stunning clarity.
Why Pro Spectrum?
- 24/7 operation with 100,000-hour lifespan
- Anti-reflective surface for bright environments
- CMS-ready for remote content management
- Energy efficient (<190W/m² average)
- Impact-resistant COB technology
- Wide viewing angles for passing traffic
- Scalable architecture for future expansion
Common Configuration
Size
4×2 to custom arrays
Brightness
1,000 nits
Mounting
Freestanding or wall-mounted
Resolution
1.7M to 1.5M pixels
Controller
NovaStar H2/H5
Integration
CMS & scheduling systems
Broadcast Studios
Designed for real-time, high-definition broadcasts. Pro Spectrum's video walls and displays ensure flawless image quality, delivering exceptional detail and clarity for studio settings, newsrooms, and live broadcasting.
Ideal for broadcast sets, control rooms, and live broadcast venues where seamless video feeds and high-definition resolution are essential. Perfect for capturing and broadcasting live events in vibrant, true-to-life quality.
Why Pro Spectrum?
- 24/7 operation with 100,000-hour lifespan
- Anti-reflective surface for bright environments
- CMS-ready for remote content management
- Energy efficient (<190W/m² average)
- Impact-resistant COB technology
- Wide viewing angles for passing traffic
- Scalable architecture for future expansion
Common Configuration
Size
2×3 to 6×3 arrays
Brightness
1,000 nits
Mounting
Wall-mounted
Resolution
1.7M to 1.5M pixels
Controller
NovaStar H2/H5
Integration
CMS & scheduling systems
Control Centers
Maximize operational efficiency with Pro Spectrum's high-performance displays, providing critical, real-time information and monitoring for mission-critical environments such as control rooms and emergency response centers.
Ideal for data centers, emergency operation rooms, and monitoring stations where every second counts. These displays provide real-time updates, offering quick insights for better decision-making in high-stakes environments.
Why Pro Spectrum?
- 24/7 operation with 100,000-hour lifespan
- Anti-reflective surface for bright environments
- CMS-ready for remote content management
- Energy efficient (<190W/m² average)
- Impact-resistant COB technology
- Wide viewing angles for passing traffic
- Scalable architecture for future expansion
Common Configuration
Size
LED arrays
Brightness
1,000 nits
Mounting
Freestanding or wall-mounted
Resolution
0.9M to 1.5M pixels
Controller
NovaStar H2/H5
Integration
CMS & scheduling systems
Retail & Hospitality
Create inviting atmospheres and immersive experiences with Pro Spectrum's customizable displays, perfect for retail stores, hotels, and restaurants looking to engage customers with stunning visuals.
Ideal for retail spaces, hotel lobbies, and restaurant walls where creating a memorable guest experience is key. The sleek design and high-quality visuals create an inviting atmosphere while displaying dynamic content.
Why Pro Spectrum?
- 24/7 operation with 100,000-hour lifespan
- Anti-reflective surface for bright environments
- CMS-ready for remote content management
- Energy efficient (<190W/m² average)
- Impact-resistant COB technology
- Wide viewing angles for passing traffic
- Scalable architecture for future expansion
INVESTMENT
Configure Your System
Transparent pricing for professional installations
COMPLETE SYSTEM
Brightlink Pro Spectrum 217"
8.2M Pixels | 1.25mm Pitch | Full 4K
$179,000
SAVE 17%
$149,000
USD | Shipping: 10-12 weeks
Complete System Includes:
64 premium cabinets (8×8 array)
Complete cable package + spares
Service tools (suction + vacuum)
4-year comprehensive warranty
NovaStar H2 controller ($8,500 value)
Professional mounting system
5% spare modules included
Lifetime technical support
BL-VT PRO VACUUM TOOL
Professional LED vacuum tool for front maintenance and module replacement. Essential for service teams.
EXTENDED WARRANTY
Extend comprehensive warranty coverage from 4 years to 7 years. Includes all parts, labor, and priority support.
SPARE MODULE KIT
Additional 10% spare COB LED modules beyond standard 5%. Recommended for mission-critical installations.
Custom Configuration Builder
Configure your perfect LED display setup
Total Resolution:
8,294,400 pixels
Physical Size:
15.75' × 8.86'
Diagonal:
217"
Total Cabinets:
64 units
Estimated Price:
$149,000
Flexible Payment Options Available
NET30 terms for qualified businesses | Leasing options from $2,100/month | Purchase orders accepted
DISCUSS PAYMENT OPTIONS
KNOWLEDGE CENTER
Knowledge Center
Everything you need to know about Pro Spectrum
Brightlink has been in business for over 10 years, providing high-quality LED display solutions to customers worldwide.
Brightlink stands out with our commitment to quality, innovative technology, and exceptional customer support.
Brightlink operates globally with headquarters and showrooms in multiple locations to serve our customers better.
Yes, Brightlink has physical showrooms where you can see our LED displays in action and speak with our experts.
Our customers range from small businesses to large corporations, including retail stores, event venues, churches, and entertainment facilities.
We offer a wide range of LED displays including indoor, outdoor, rental, and custom solutions for various applications.
Pixel pitch is the distance between LED pixels. Smaller pixel pitch means higher resolution and better image quality for closer viewing distances.
Our LED displays are designed to last 100,000+ hours of operation with proper maintenance and care.
Yes, we offer professional installation services to ensure your LED display is set up correctly and optimally.
Power requirements vary by display size and model. Our team will provide specific requirements during the consultation process.
Installation time depends on the project scope, but most standard installations can be completed within 1-3 days.
We offer comprehensive warranties on all our products, typically ranging from 2-5 years depending on the product line.
Our technical support team is available via phone, email, and live chat to assist with any issues or questions.
Yes, we provide on-site support services for complex issues that cannot be resolved remotely.
Shipping times vary based on location and product availability. Standard delivery is typically 2-4 weeks for custom orders.
Yes, we ship to most countries worldwide. International shipping times and costs vary by destination.
All products are carefully packaged in protective materials and custom crating to ensure safe delivery.
We accept major credit cards, bank transfers, and various financing options for qualified customers.
Yes, we offer flexible financing plans to help make your LED display investment more manageable.
A deposit is typically required for custom orders. The amount varies based on the project scope.
Yes, we have partnership programs for resellers and integrators. Contact us for more information.
We welcome qualified dealers to join our network. Please reach out to our partnership team for requirements.
Yes, we offer competitive pricing for bulk orders and long-term partnership agreements.
READY TO TRANSFORM YOUR SPACE?
Let's Discuss Your Project
Talk to our LED specialists about your specific requirements
SINCE 2009
Established Excellence
4-YEAR WARRANTY
Comprehensive Coverage
LIFETIME SUPPORT
Always Here to Help
CERTIFIED
CE, RoHS, FCC, ISO9001
