Features:

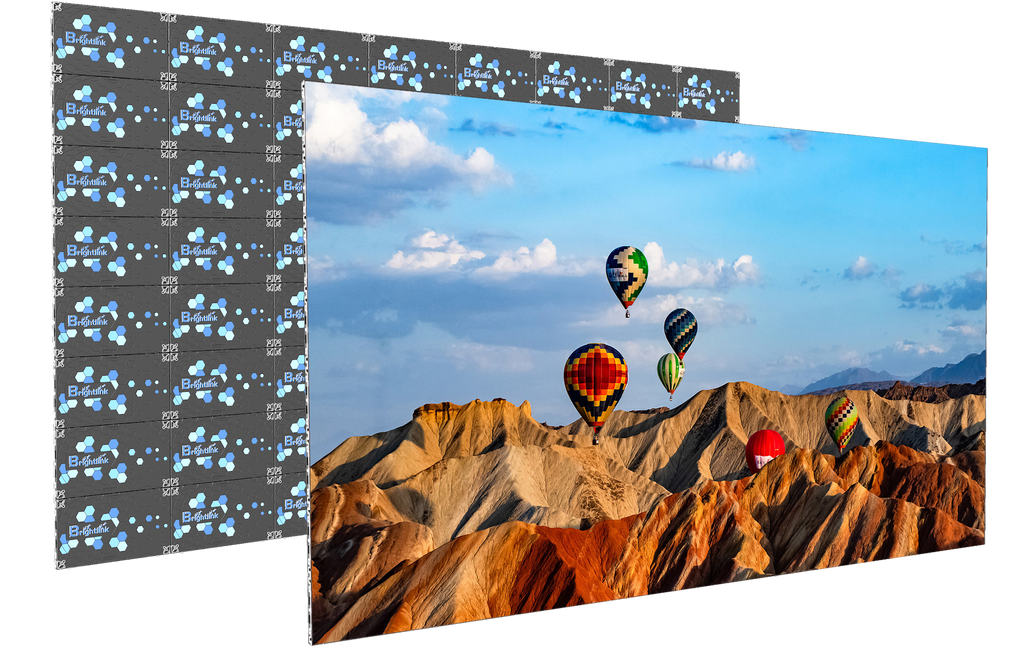

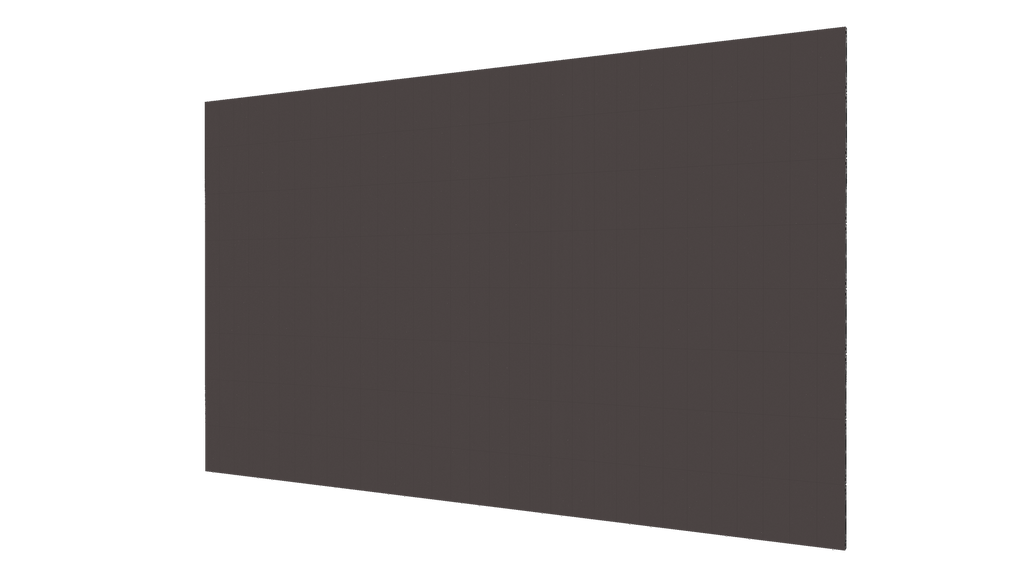

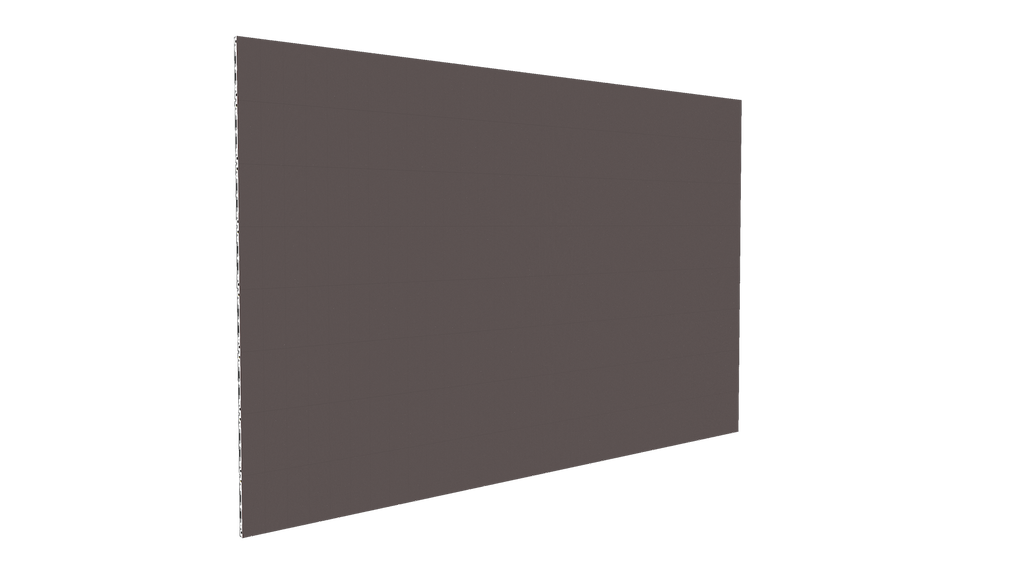

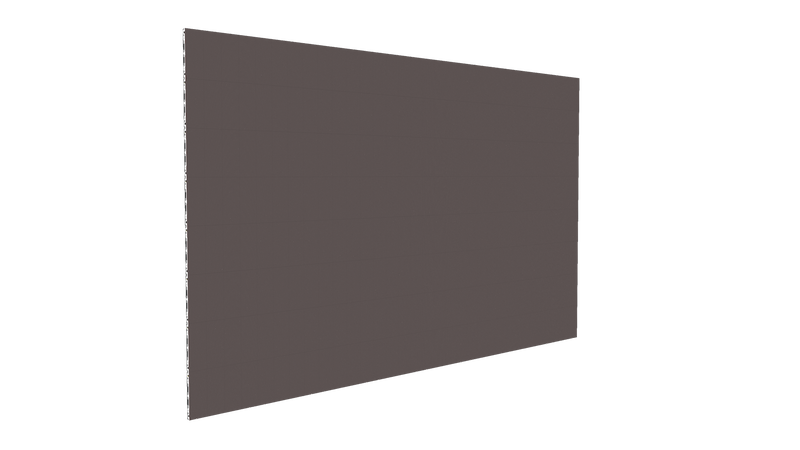

- 217” Diagonal Screen (15.8’ x 8.9’)
- 1.25 mm Small Pitch HD LED Cabinets
- COB Protection for LED Modules
- NovaStar H2 LED Wall Controller
- 4 YEAR WARRANTY
- 5 % SPARE PARTS
- Slim mount Cabinets 1 inch (25 mm)
- 16:9 Standard Video Aspect Ratio
- Super Bright 600cd/m2
- 3840Hz Refresh rate
- View Distance from 6’-165’
- 8,294,400 Pixels (FULL 4K 3840 x 2160P)

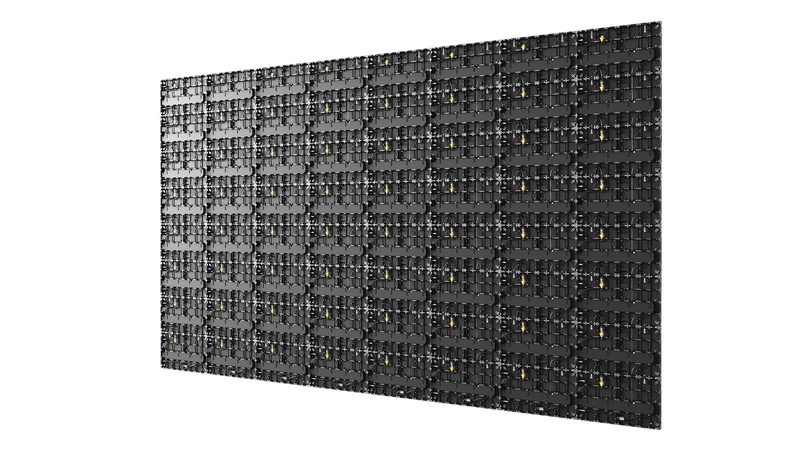

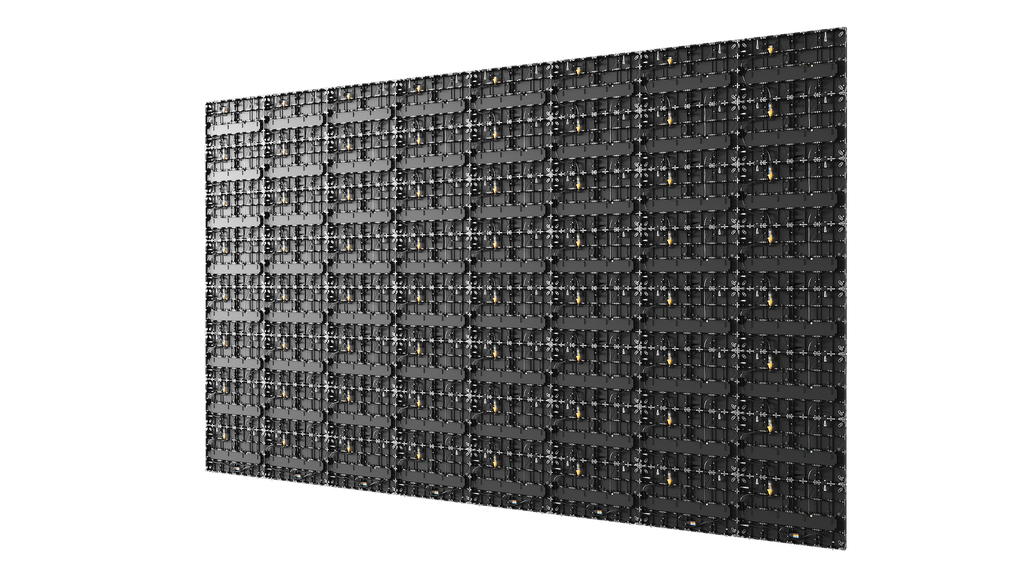

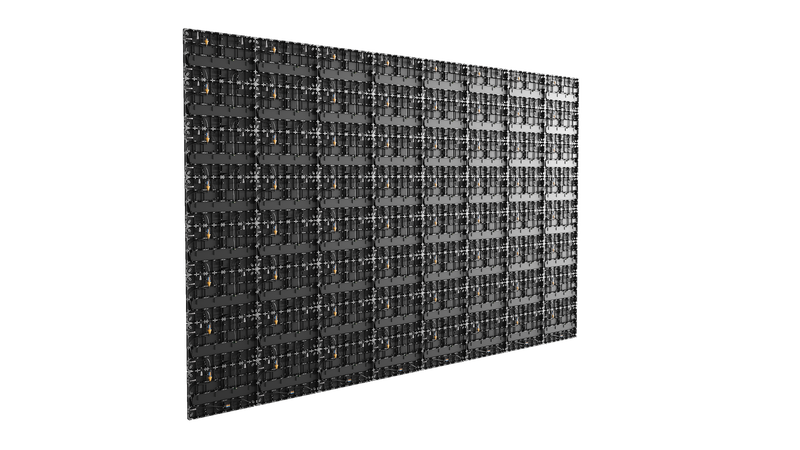

- Seamless / line free Interlocking cabinets
- Front repairable modules with included suction tool
SPECIFICATION
| Quick Connect Locking Systems: |
| Our Quick Connect Locking Systems revolutionize the way you assemble and secure cabinets in your video wall setup. Designed for efficiency and simplicity, these systems allow you to effortlessly attach and lock cabinets with just a simple turn of the locking mechanism—no screws or bolts required. |
| Slim Profile: |

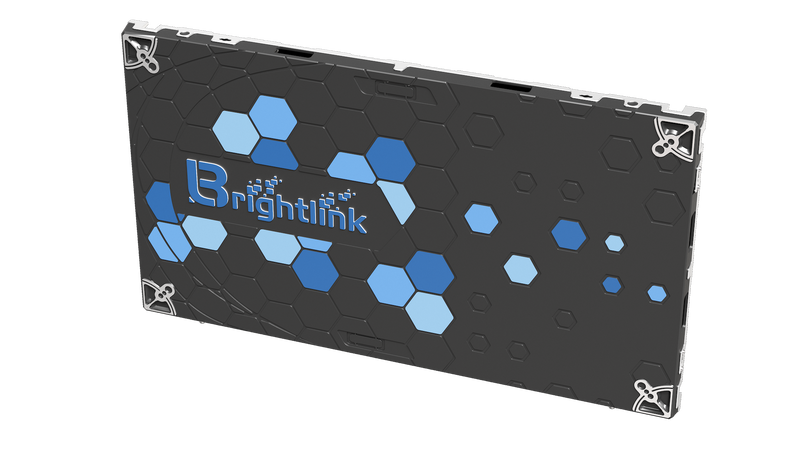

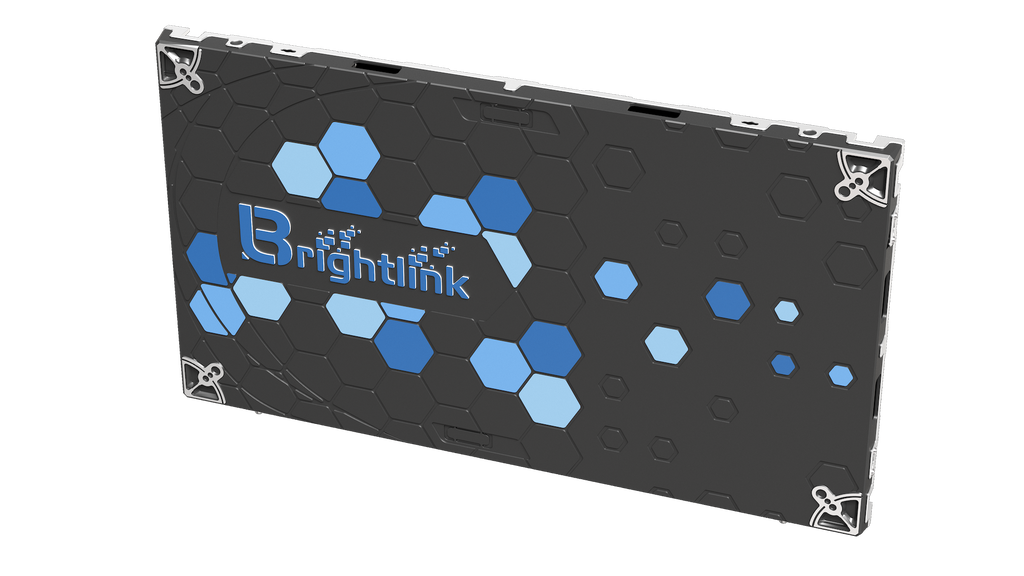

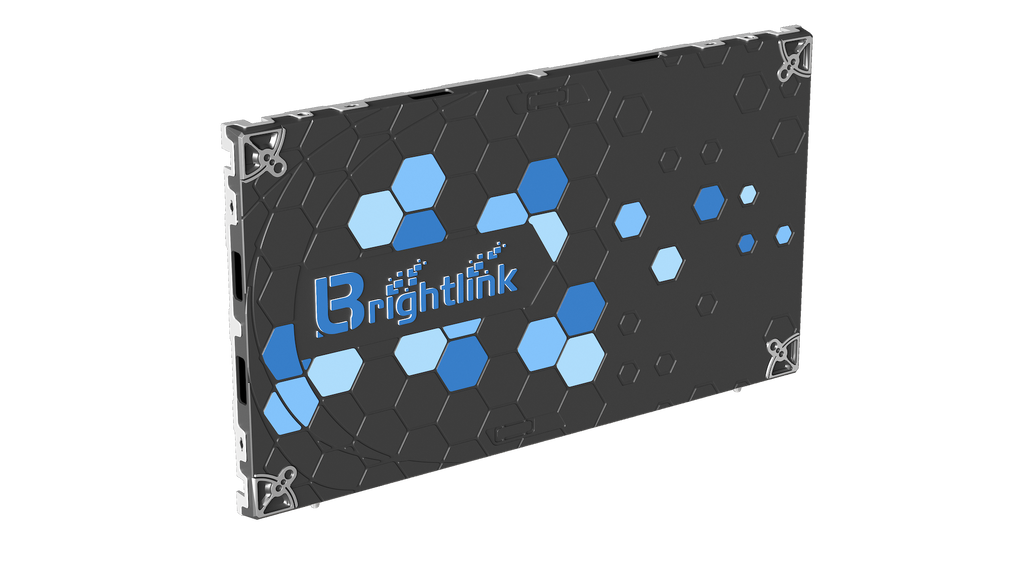

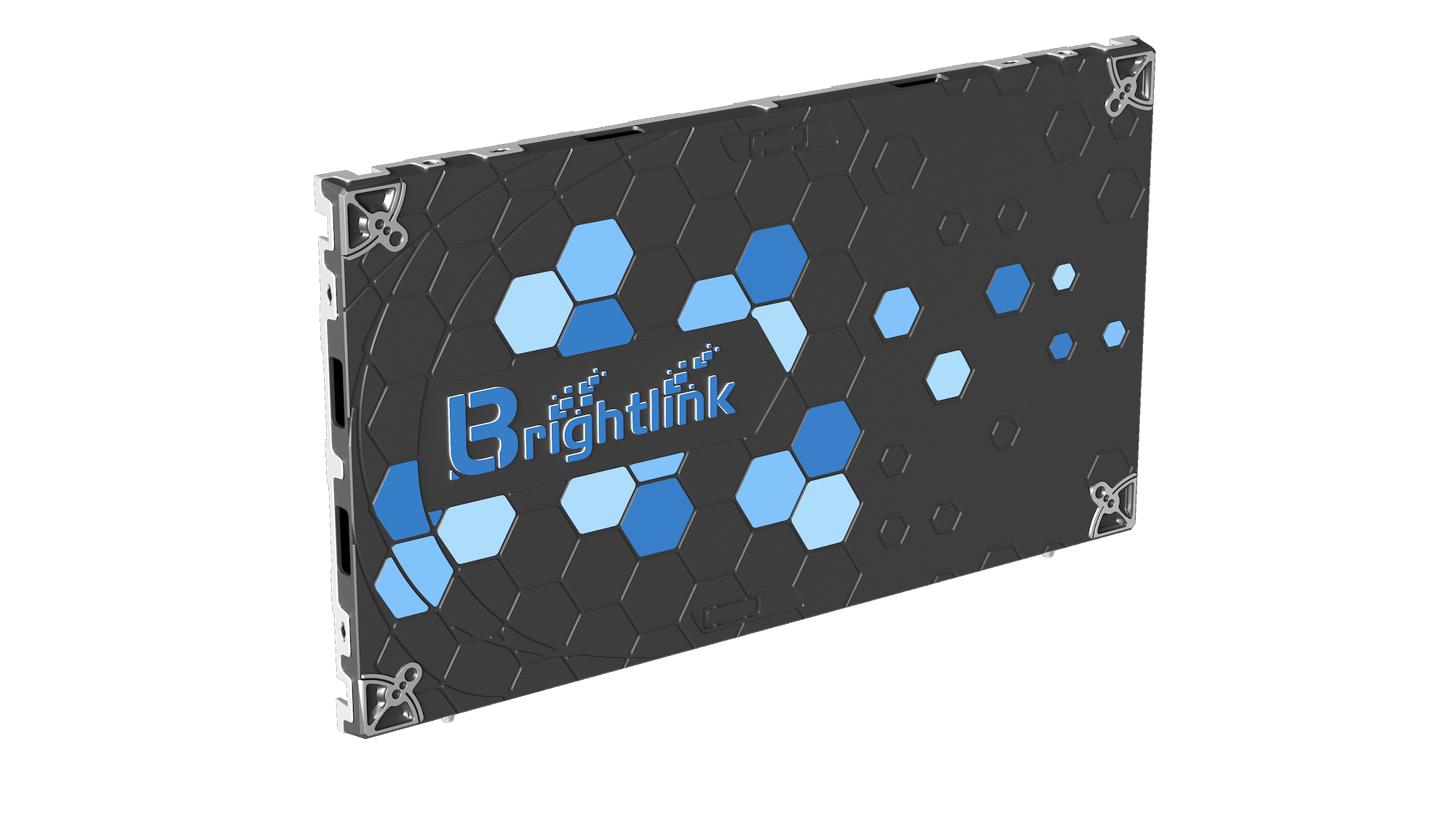

| Brightlink Pro Spectrum COB LED Cabinets feature the industry's slimmest profile at just 1 inch (25 mm) deep and weigh only 8 lbs (3.7 kg). This makes our Pro Spectrum COB Cabinets significantly lighter than conventional LED displays. The lightweight design simplifies installation, reducing labor intensity, particularly in applications with limited space. |

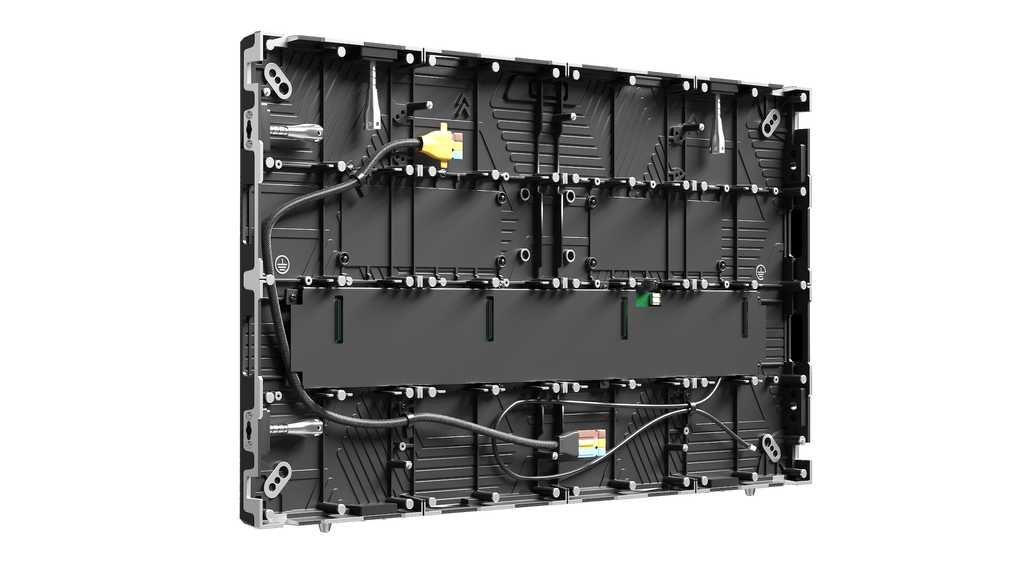

| Integrated Power and Network Hub: |

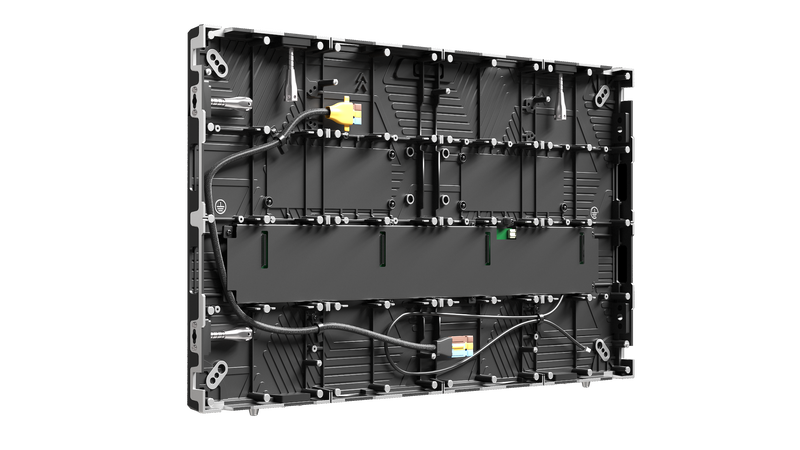

| Our system features an integrated power and network hub that simplifies design and maintenance. Say goodbye to messy ribbon cables and separate power supplies with exposed wires. Enjoy a sleek, all-in-one design that is easy to use and maintain, ensuring a clean and organized setup. |
| Optimized Module Configuration: |

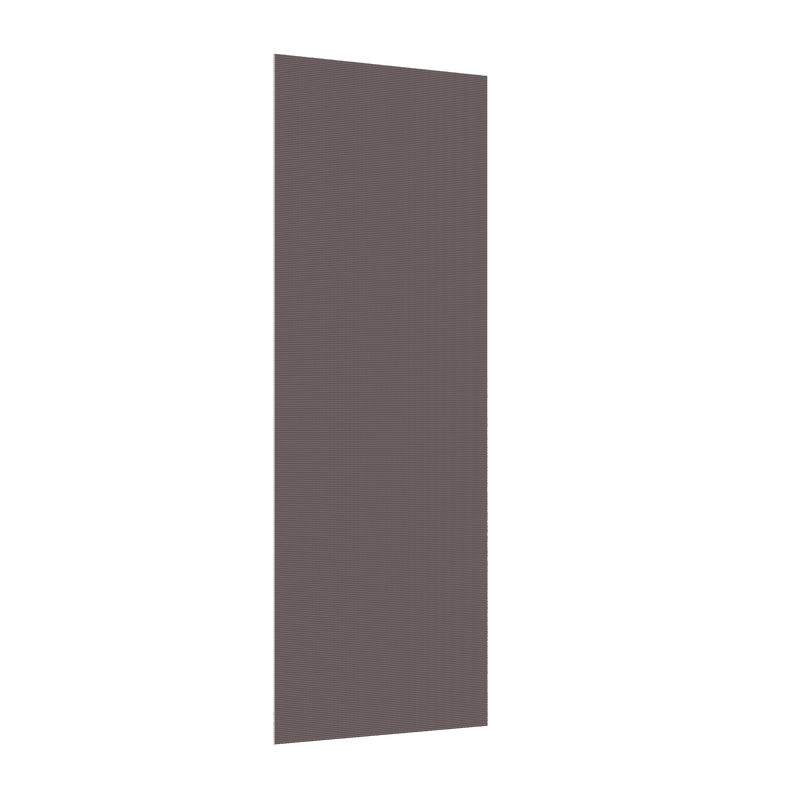

| Our cabinets utilize only 4 vertical COB modules, each measuring 150mm wide x 337.5mm, as opposed to the typical 8 modules. This configuration ensures seamless stitching and significantly reduces visible lines, resulting in a cleaner and more cohesive display. |
| Flat LED Modules: |
| Brightlink Pro Spectrum COB features truly flat LED modules that eliminate warping commonly associated with SMD/GOB versions. This design ensures a uniform, single-level plane, delivering a high-end precision appearance that enhances the overall aesthetic of your display. |
| Higher Contrast Ratios: |
| Our Pro Spectrum COB technology offers superior contrast levels because the LED chips are mounted directly on the circuit board, minimizing the distance between pixels. This results in deeper blacks and more vibrant colors. |
| High Dynamic Range (HDR): |
| Our Brightlink Pro Spectrum COB LED with HDR technology offers a superior visual experience with enhanced brightness, contrast, and color accuracy, resulting in more vivid and realistic images. |
| True High Resolution: |
| With our technology, each LED corresponds directly to a pixel, guaranteeing sharp and authentic image quality. This one-to-one relationship ensures that every detail is rendered with precision, resulting in vibrant colors and crystal-clear visuals that enhance the viewer's experience. |
| Superior Motion Handling: |
| Experience no ghosting in fast-moving scenes, making our displays ideal for high-refresh-rate applications. |
| Simplified Control: |
| Direct pixel driving without complex algorithms enhances system stability and reliability. |
| Robust Design: |
| COB LED technology features a protective layer that shields the chips, making them more resistant to damage. This design significantly reduces susceptibility to breakage from impacts or environmental conditions, ensuring long-lasting performance in various settings. |
| Heat Dissipation: |
| Our Brightlink Pro Spectrum LED modules feature superior heat dissipation properties, which significantly enhance their lifespan and sustain optimal performance over time. This effective thermal management minimizes overheating, ensuring reliable operation in various conditions. |
| Energy Efficiency: |
| Brightlink Pro Spectrum COB LED technology offers superior energy efficiency compared to traditional LED methods, resulting in lower operating costs. This advantage is particularly valuable for large installations, where reduced power consumption can significantly decrease overall expenses. By choosing our technology, you can achieve impactful savings without compromising performance. |
| Wide Viewing Angles - Consistent Viewing Experience: |
| Our Brightlink Pro Spectrum COB LED video walls provide wide viewing angles of up to 170 degrees, ensuring consistent image quality from various perspectives. This feature is essential for applications such as events and public displays, where audiences may be positioned at different angles rather than directly in front of the screen. With our technology, everyone can enjoy an optimal viewing experience, regardless of their location. |
| Versatility in Applications: |
| Multiple Use Cases: COB LED video walls are ideal for a wide range of environments, including: |

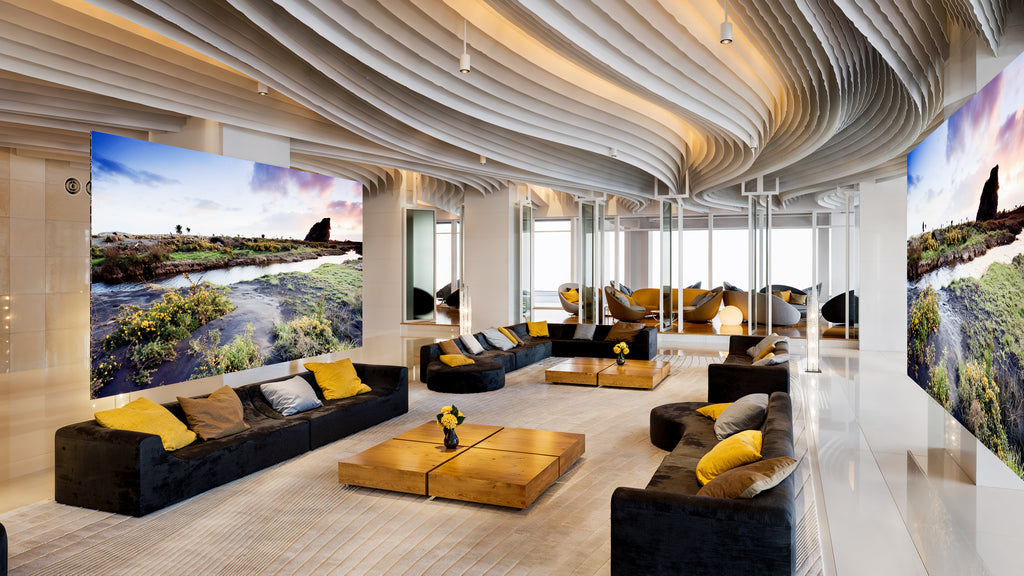

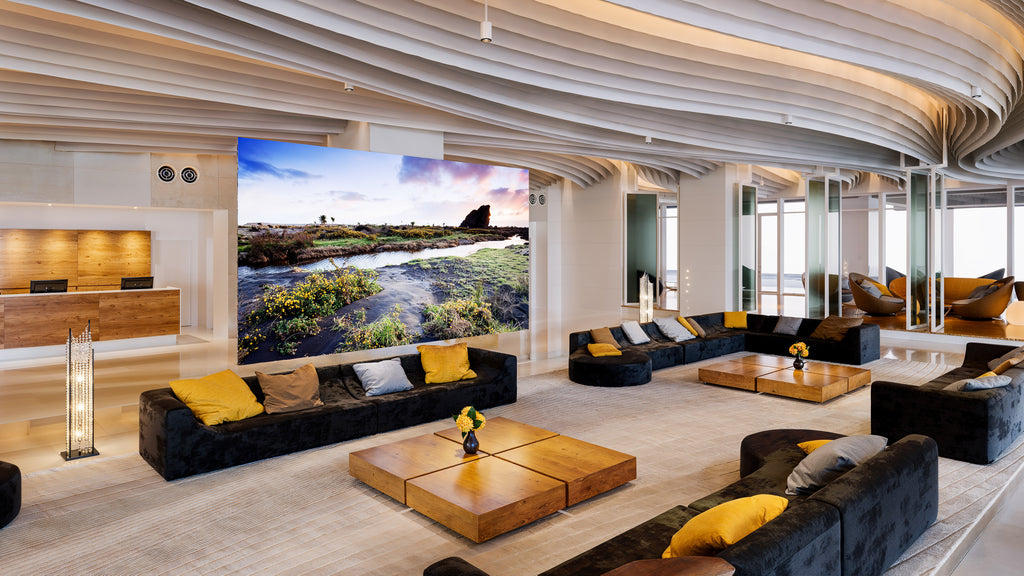

| Retail Spaces: Captivating customers with vibrant and dynamic displays that enhance the shopping experience. |

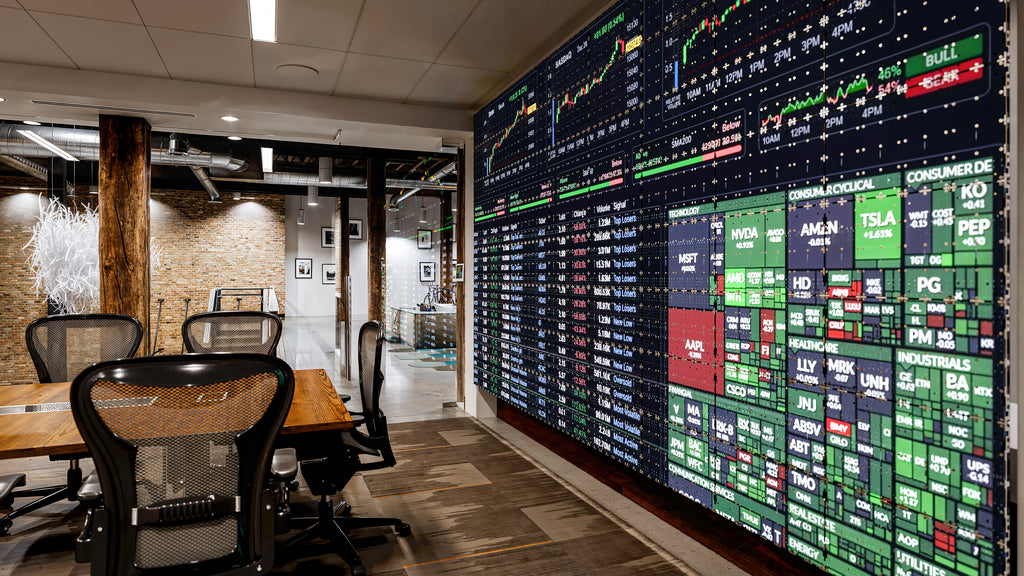

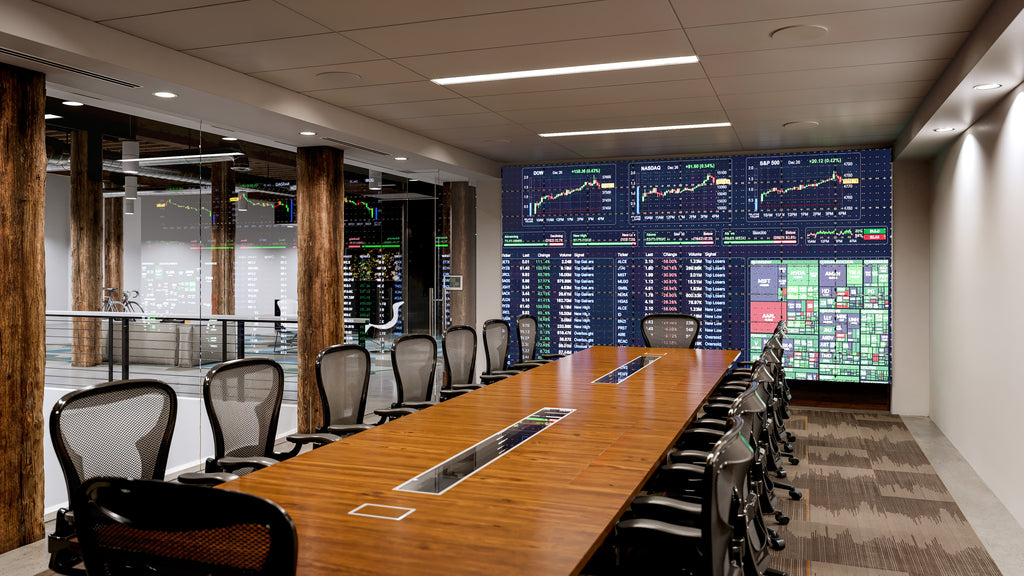

| Control Rooms: Delivering clear and precise visuals for effective monitoring and management of critical operations. |
| Events and Concerts: Creating immersive experiences that engage audiences and elevate the overall atmosphere. |
| Broadcast Studios: Ensuring high-quality visuals for television and media production, enhancing viewer engagement and professionalism. |
| With such diverse applications, our COB LED video walls are designed to meet the needs of various industries and settings. |
| Conclusion: |
| The Brightlink Pro Spectrum COB LED technology sets a new standard in large scale display solutions, combining innovative features and exceptional performance. With its ultra-slim profile, lightweight design, and integrated power hub, our video walls are designed for ease of installation and maintenance. The superior heat dissipation, energy efficiency, and robust construction ensure long-lasting reliability and lower operating costs, making it an ideal choice for various applications, from retail environments to control rooms and entertainment venues. |
| The impressive wide viewing angles and true high resolution deliver a consistent and immersive visual experience for audiences, regardless of their position. With the versatility to adapt to multiple settings, our COB LED video walls not only meet but exceed the demands of modern display technology. |
| By choosing Brightlink Pro Spectrum COB LED, you are investing in a cutting-edge solution that enhances visual communication and elevates your brand’s presence. Experience the difference that our advanced technology can make in your next project. |
Module Specs:

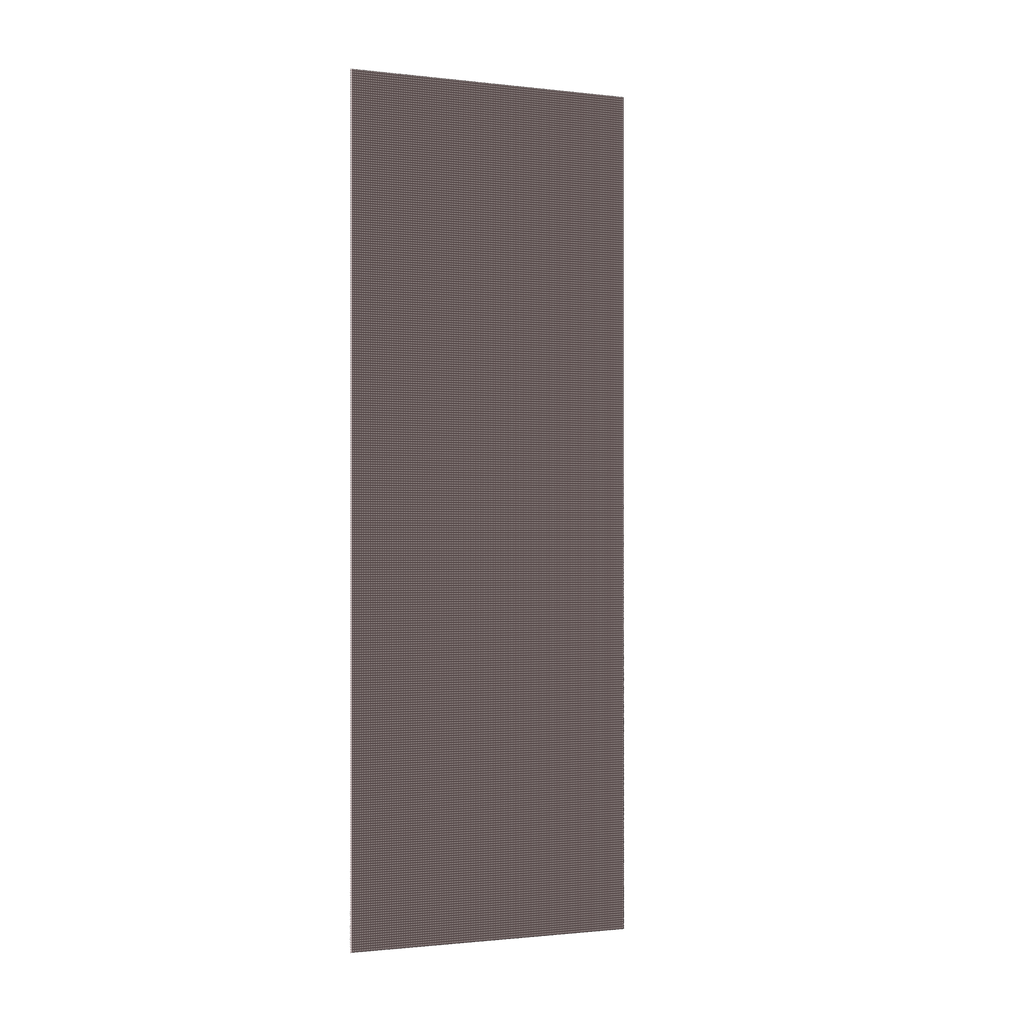

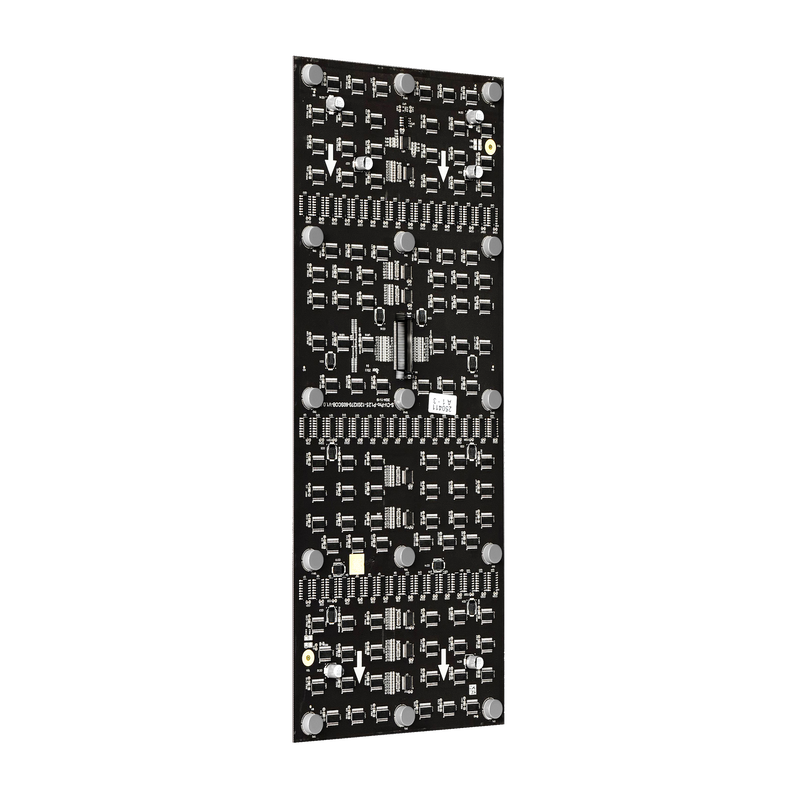

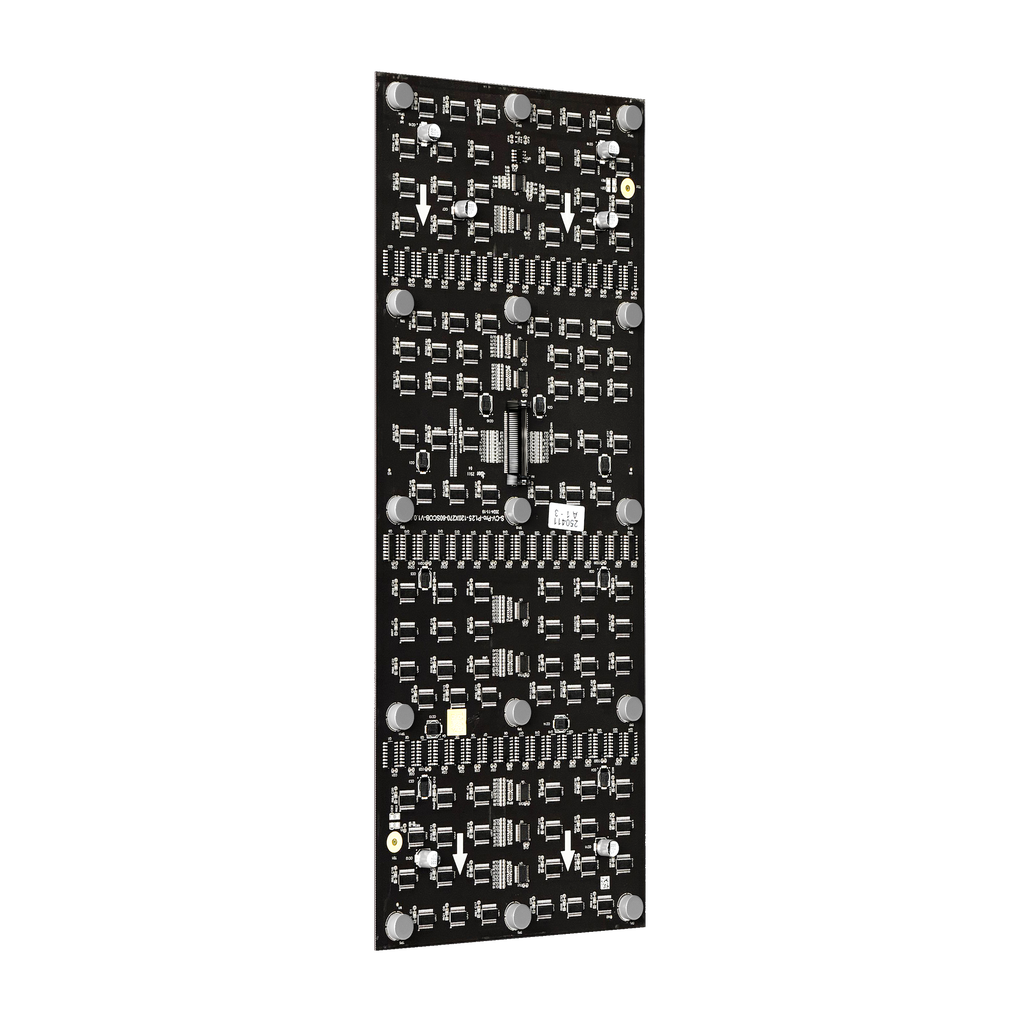

| Pixel pitch: 1.25mm |
| Type: COB |
| Module Resolution: W120xH270 Pixels |
| Module Size: 150*337.5 |
| Led Packing: 1010 |
| Scanning Method: 45s |
| LED composition: 1R 1G 1B |
Cabinet Specs:

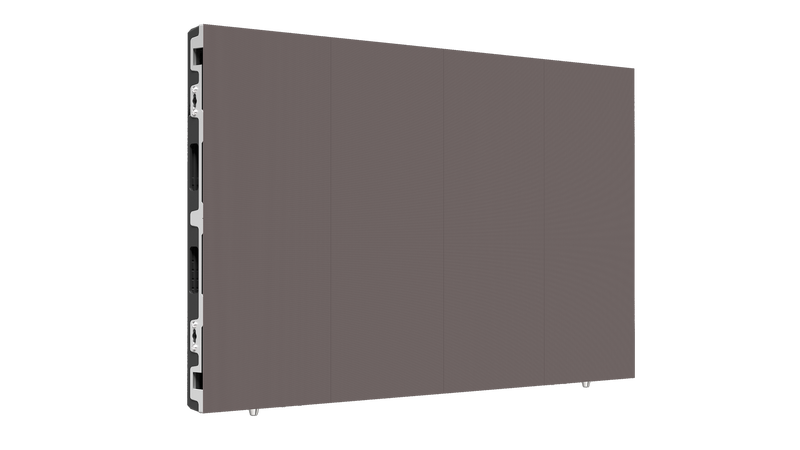

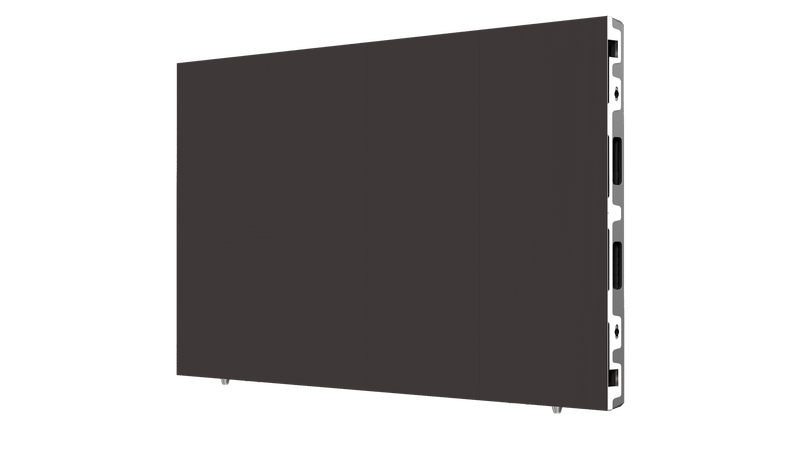

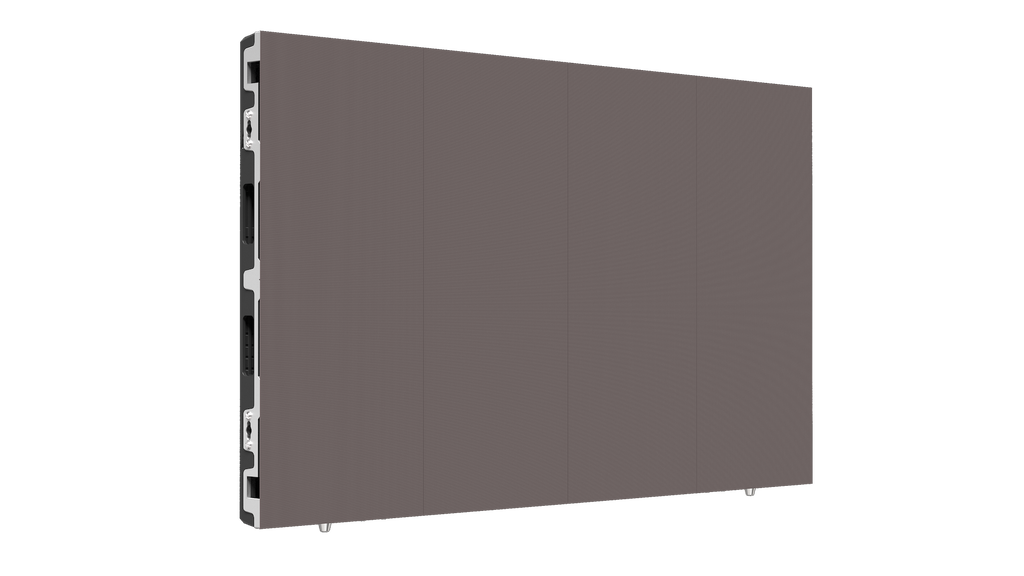

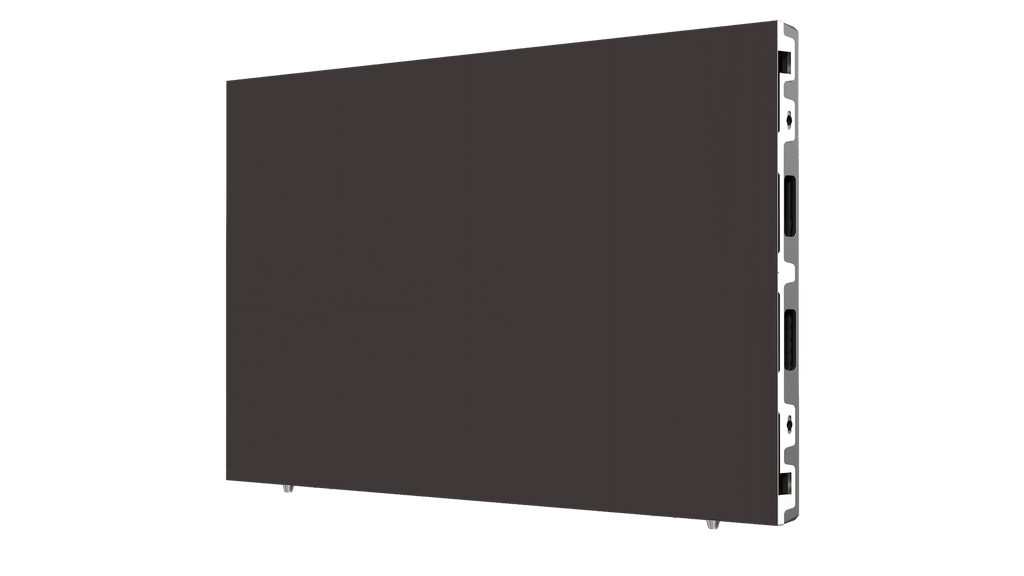

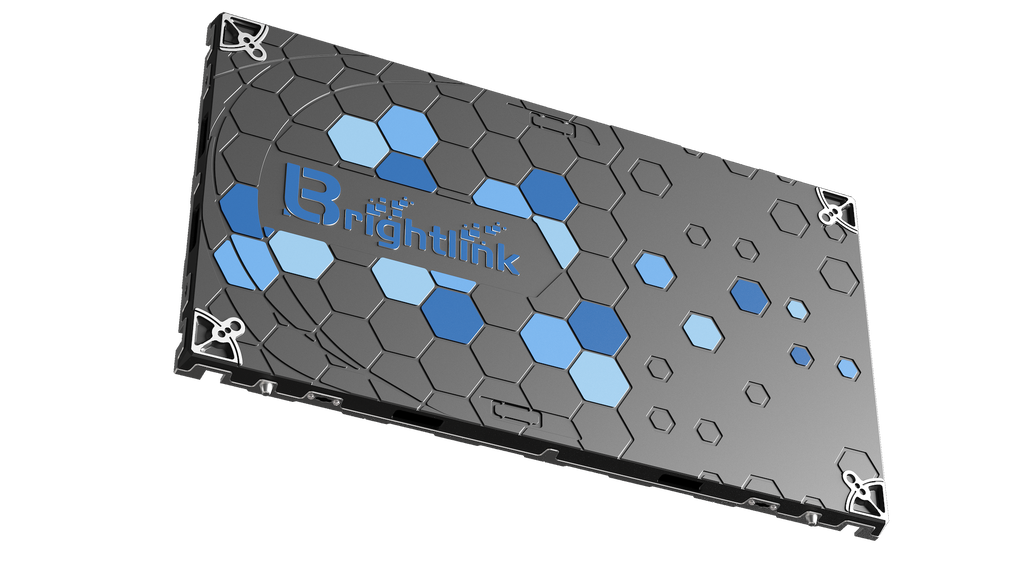

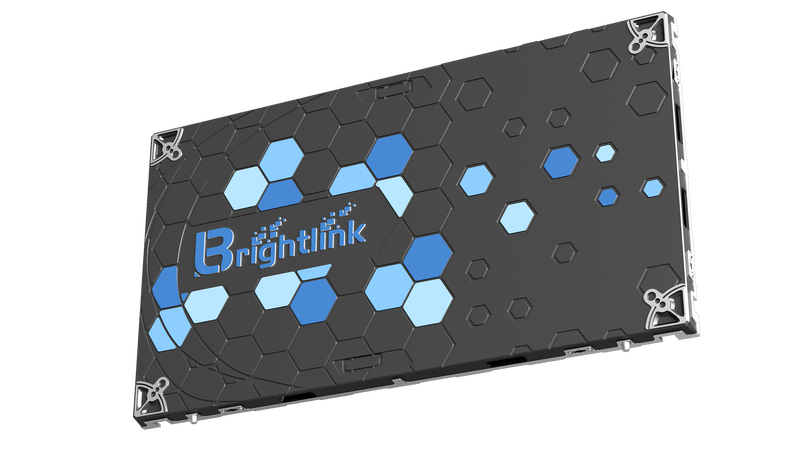

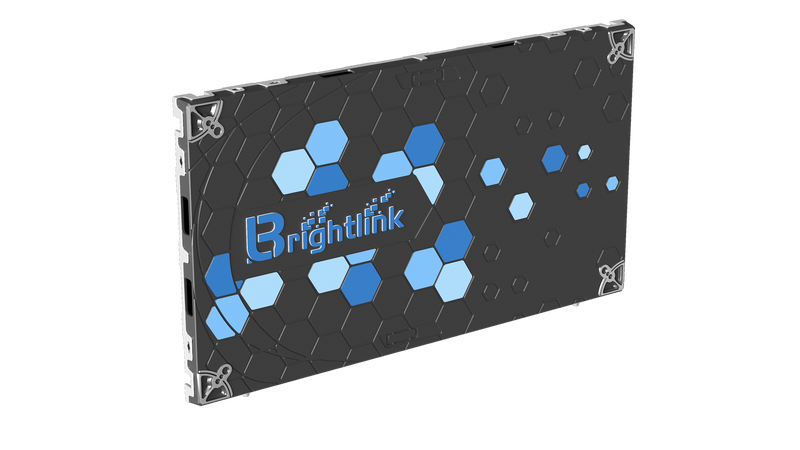

| Cabinet Size: 600 x 337.5 x 25mm / 23.62” x 13.3” x 1” |
| Module QTY: w1 x h4 = 4pcs |
| Physical Resolution: w480 x h 270 Pixels |
| Power Consumption (MAX): ≤310W/m² |
| Power Consumption (AVG): ≤190W/m² |
| Cabinet Material: Die-Cast Aluminum |
| Net Weight: 3.7KG / 8LBS |
Screen Specs:

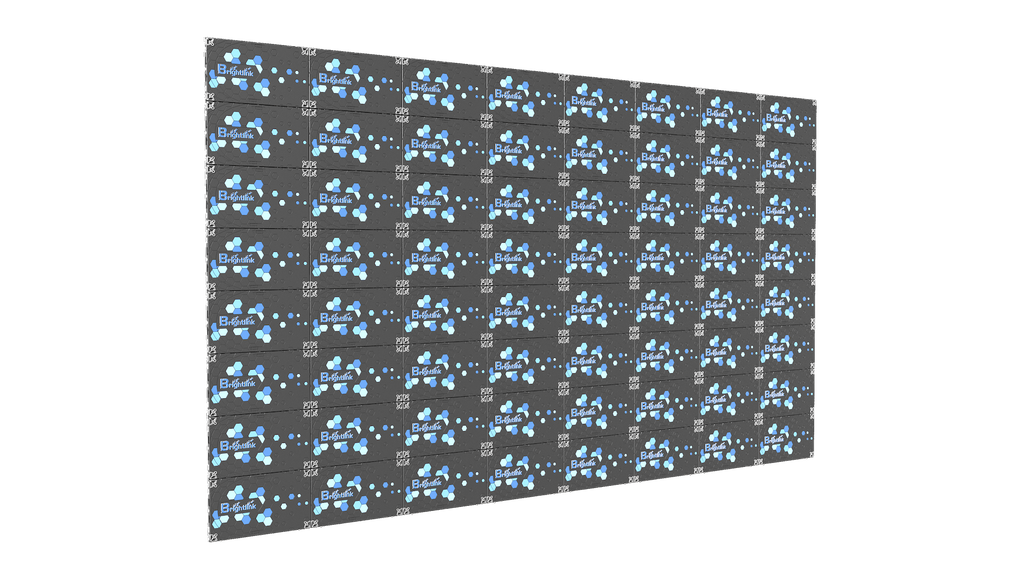

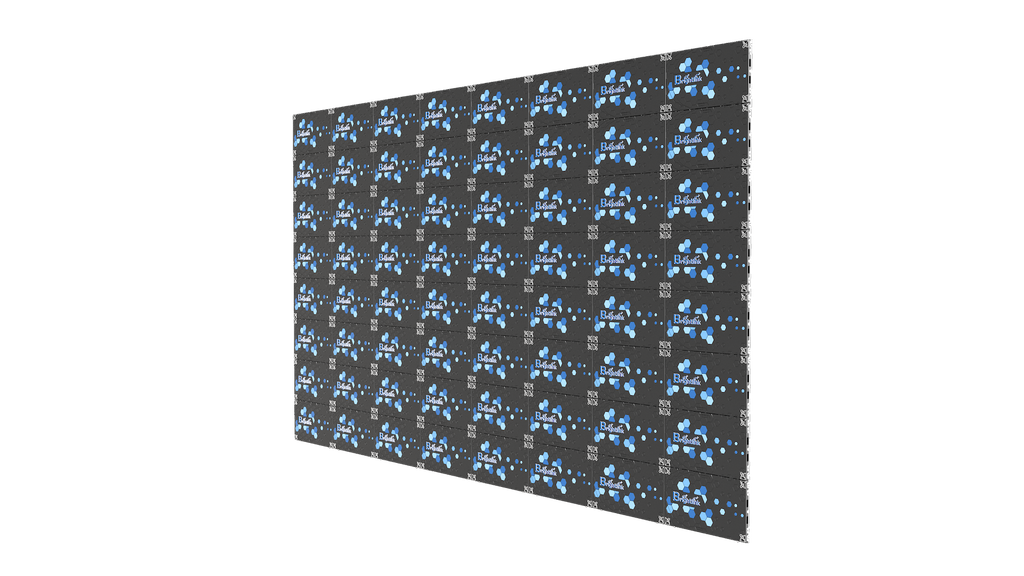

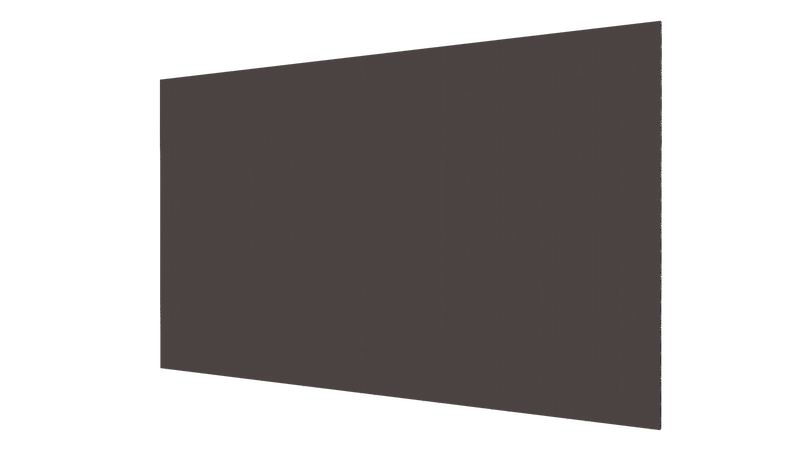

| Screen Area: 15.8’ x 8.9’ x 217” Diagonally 141 sqft |
| Whole Screen Resolution: 8,294,400 Pixels (FULL 4K 3840 x 2160P) |

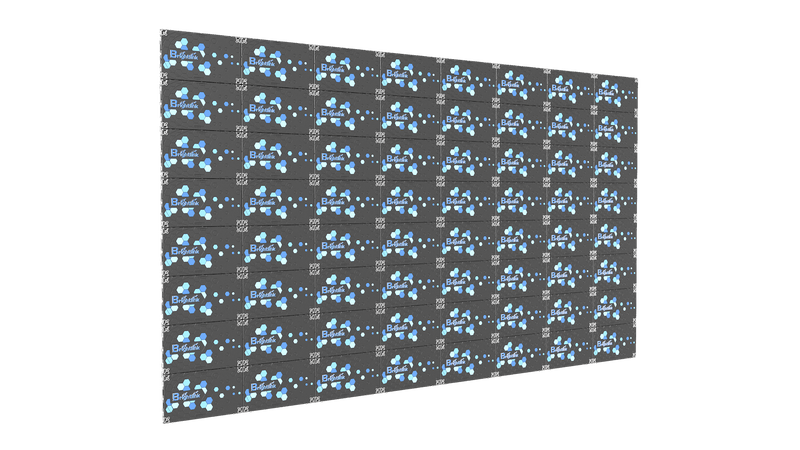

| Cabinet Quantity: 8pcs wide x 8 pcs high = 64pcs total |
| Brightness: 600cd/m2 |
| Colors: 281 Trillion |
| Brightness Control: Software 256 level adjustable |
| Grey Level: 16 |
| View Distance: 2m-50m / 6’ - 165’ |
| Refresh Rate: 3840Hz |
| Drive Mode: 1/43s |
| Life Span: 100,000h |
| MTBF: 1000h |
| Control Mode: Synchronous control or Asynchronous control |
| Frame Frequency: 60Hz |
| Certifications: CE/ROHS/FCC/CCC/ISO9001 |
| Operation Temperature: -20C - +45 C |
| Operation Humidity: 10% - 95% |
NovaStar H2 Video Wall Splicer
| The NovaStar H2 is a powerful and flexible video wall splicing processor designed for fine-pitch LED displays. With its modular design and hot-swappable input/output cards, it supports a wide range of signal formats including HDMI, DVI, DisplayPort, SDI, VGA, and CVBS. |
| Delivering up to 26 million pixels of processing capacity, the H2 supports up to 32 layers and multiple screens, making it ideal for large video wall applications. Advanced features such as HDR10/HLG support, 10-bit image processing, HDCP decryption, and EDID management ensure outstanding image quality and compatibility. |
| Built for reliability, the H2 offers both Ethernet and optical outputs for long-distance transmission and system redundancy. Control is simple with a browser-based interface, online updates, and real-time monitoring. |
| Key Features: |
| - Modular, hot-swappable input/output card design |
| - Up to 26 million pixels of processing capacity |
| - Supports HDMI, DVI, DP, SDI, VGA, CVBS, and IP inputs |
| - Up to 32 layers and multiple screen configurations |
| - HDR10, HLG, and 10-bit color processing for superior visuals |
| - Redundant Ethernet/OPT outputs for secure, long-distance transmission |
| - Easy web-based control and monitoring. |
| Ideal for: control rooms, broadcast studios, staging events, and large LED video walls. |
Controller technical details
| This NovaStar H2 is equipped with a powerful, modular configuration designed for large LED video walls, offering flexible inputs and high-capacity outputs. |
| Configuration Includes: |
| Inputs: |
| • 4 × Full HD (1080p) input cards |
| • 1 × HDMI 2.0 input card (supports up to 4K@60Hz) |
| Outputs: |
| • 32 × CAT6 Ethernet outputs (2 × 16-port output cards) |
| Additional: |
| • 1 × Preview card for real-time monitoring |
Product Downloads
- Mounting frame drawings BL-PS-COB-LED-217-8x8 Download
- Power-network drawings BL-PS-COB-LED-217-8x8 Download
- Novastar H2 Quick Start Guide Download
- Novastar H2 User Manual Download
- Novstar H2 Specification Download
- LED-GOB-vs-COB-Comparison-Chart Download
- Brightlink-LED-View Distance-Specification-Guide Download
- Brightlink PRO Spectrum Brochure Download
