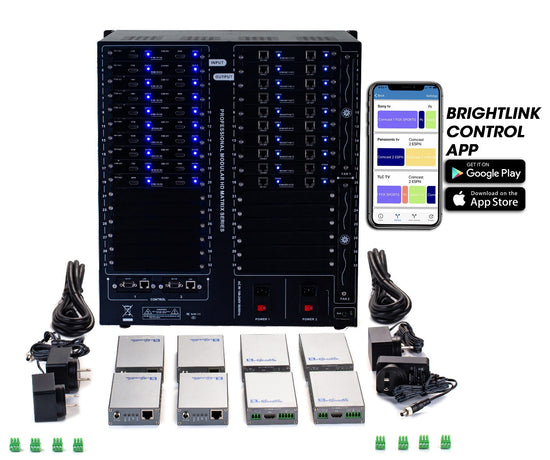

Introducing Brightlink’s PRO MIX Large Scale 4K Seamless Modular Matrix Switcher System in our 10 HDMI Input x 10 HDMI Output configuration - and Features a 7” Touch Screen and FREE Brightlink APP for Control.
This PRO Mix Matrix Switcher System allows you to connect up to 10 4K HDMI INPUTS and switch them to anyone of the up to 10 4K HDMI OUTPUTS and send your signal in uncompressed Full HD to anyone of your connect HD Displays, in any room, and in any configuration, such as one to one, one to many, or many to many.
With the 7” inch front panel touch screen, our FREE Brightlink IOS and Android Control app, PC software, and the ability to work with any 3rd party control system such as Crestron and Control 4, this matrix is an easy and convenient system to control for any user.
The Free app works by simply connecting your Tablet or phone via wifi to the same network that your matrix system is connected to.
Using our App or the Front Panel LCD control you are able to use features such as scene save and recall, which allows you to save some of your favourite input / output configuration for special events,and easily recall them later saving you time and allowing any user to operate.
With our production grade rapid seamless switching image technology you can freely switch with zero downtime and no black field or jitter. Combined this with our Dual input / output Plug and Play Modular Card Design, Dual Power supplies, and Dual control ports (32x32 & 72x72 case sizes only) for redundancy, these Multi Function Matrix Switchers are Ideal for any situation where reliability is essential and downtime is not an option.
This Powerful PRO MIX Matrix Switcher is a cross mix Matrix which means it works with many other Input / Output card combinations including 4K HDMI, 4K HDBaseT, DVI, Fiber and 3GSDI making this the most robust and flexible Modular Matrix system on the market.
You can have HDMI inputs and HDBaseT outputs, or Fiber inputs and HDMI outputs, or any other combination you like, allowing you to customize your system to fit your needs. ****Additional cards required
With our easy to use Dual input / output Plug and Play Modular Card Design, you are able expanded the inputs or outputs as your demand grows. With our 3 case sizes in a max input / output combination of 18x18, 32x32, and 72x72, you can custom choose which one will work for you now, but also allows you to expand your inputs / outputs down the road. For example you can purchase a 32x32 case with only 12 inputs and 24 outputs and when more are needed you can purchase additional easy to install plug and play Dual input / output cards and expanded your Matrix to 14x24, 20x24, 28x28, all the way up to 32x32.

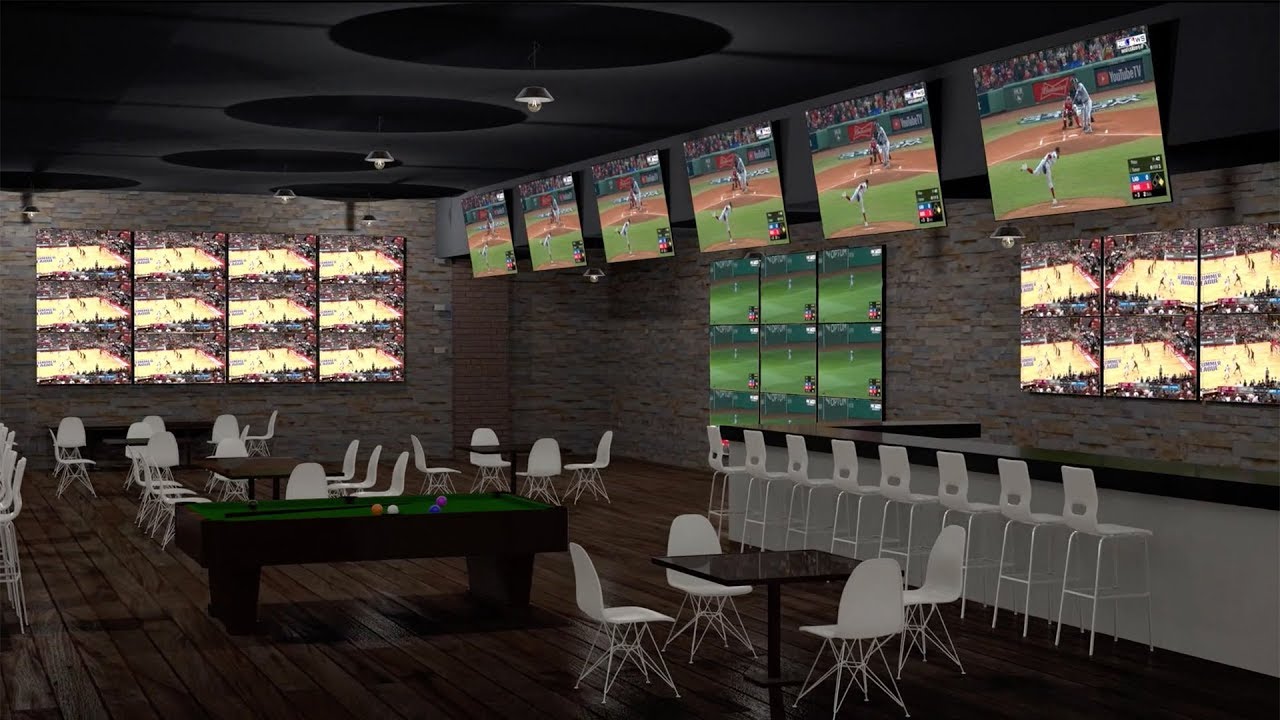

This PRO MIX Large Scale 4K Modular Matrix Switcher System offers an easy to use HD video distribution solution for Casinos, Sports Bars, Super Markets, Shopping Malls, Churches, Data Control Centre, Conference Rooms, Education and Training, Luxury Homes, Home Theatres or anywhere you need a solution for your multiple HD source and display set up.
***NOTE - CONFIGURATION IN VIDEO MAY DIFFER FROM CONFIGURATION IN THIS LISTING
- Set includes 10 HDMI INPUTS x 10 HDMI OUTPUTS configuration
- Supports1080 @ 60HZ upto 4K @ 30HZ
- Allows any Input to be routed to any Output in any combination.
- Free Brightlink ISO and Android Control APP
- 2 Year Warranty on Parts and Labour
- Easy to use 7” LCD front panel Touch Screen
- Production Grade Rapid Seamless Switching
- Cross Mix Matrix Design allows Many Input / Output card combinations compatibly including 4K HDMI, 4K HDBaseT, Fiber, VGA, DVI, 3GSDI, CVBS, YPbPr, and Audio.
- Dual Input / Output Port Plug and Play Modular Card Design for easy expansion.
- Dual power and dual control backup for redundancy.
- Support 3rd Party (e.g Crestron & Control 4) & Brightlink APP control via RS-232 and IP, front panel control, and PC control via software.
- Every input channel supports scaler adjustment
- 7” FRONT PANEL LCD TOUCH SCREEN
- BRIGHTLINK FREE ANRIOD AND ISO CONTROL APP (DOWNLOAD ANRIOD APP)
- 3RD Party Control (e.g Crestron & Control 4) via RS-232 and IP. Download command codes
- PC Control Via PC Software
PLEASE ALLOW 7-16 BUSINESS DAYS TO ARRIVE. WILL SHIP WORLDWIDE. ANY COUNTRY OUTSIDE OF THE USA IS RESPONSIBLE FOR ANY DUTIES OR TAXES. PLEASE CONTACT FOR MORE ACCURATE ESTIMATES.
BRIGHTLINK BL-PRO-MIX 18X18, 32X32, & 72X72 SPECS
|Rs232 Control protocol||RS232(Baud rate :115200, Data Bits:8, Stop Bits:1,non parity bit)|
|Rs232 Connector||9 pins D-sub(DE9F) 3=TX 2=RX 5=GND|
|Network Control protocol||TCP/IP|
|Network Connector||Rj45 joint 10/100Base-T Ethernet|
|Input voltage||Power100VAC~260VAC,50/60 Hz, International adaptive power|
BL-PRO-MIX 18X18 CASE
BL-PRO-MIX 32X32 CASE
BL-PRO-MIX 72X72 CASE
|18*18 modular hybrid matrix, two signals / ports per card - 9 input card slots & 9 output card slots||32*32 modular hybrid matrix,one card two signal / ports per car - 16 input card slots & 16 output card slots||72*72 modular hybrid matrix,one card four signals per card - 18 input card slots & 18 output card slots|
|7 inch touch screen, single RS 232, single LAN||7 inch touch screen,dual RS 232, dual LAN for redundancy||7 inch touch screen,dual RS 232, dual LAN for redundancy|
|Swappable dual power supplies for redundancy||Swappable dual power supplies for redundancy||Swappable dual power supplies for redundancy|
Dimensions :4 8 3mm / 2 6 4mm / 3 5 0mm ( 5 U )
Dimensions :4 8 3mm / 4 8 4mm / 3 7 0mm ( 1 1 U )
Dimensions :4 8 3mm / 6 6 6mm / 3 7 0mm ( 1 5 U )
BRIGHTLINK MODULAR CARD SPECS
|HDMI 4K INPUT / OUTPUT CARD||
|HDBaseT 4K INPUT / OUTPUT CARD||
|UNIVERSAL DVI INPUT / OUTPUT CARD||
|3G SDI INPUT / OUTPUT CARD||
|FIBER INPUT / OUTPUT CARD||
AVAILABLE INPUT/OUTPUT CARDS
