Manual - BL-EXTP-IP-264-TX
Download
Description
Features:
- Using H.264 compression encoding, support resolution up to 1080p@60hz
- Transmit up to 120m over single Cat5e/6 cable, with 1x looping HDMI output
- With IR Remote to choose the source, with LED to show the Group ID
- Comply with TCP/IP protocol, streaming bit rate is up to 15Mbps
- Support LPCM audio format
- Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
- Wide-band IR pass through to control the source (38khz to 56khz)
- By pass 2 way UART/RS232 (Up to 115200), use remote controller to select 8 group Baud rate
- Support one to one, one to many, many to one, many to many modes, with large cascade
- Dual power input: 802.3af compliant POE & DC 5V (No need power supply when connecting with POE Switch)
- HDCP Compliant
- Support PC tool control
- DC 5V 1A power supply
This HDMI over IP Extender use the advanced H.264 as the compression type, which makes it occupy lower bandwidth and transmit over the LAN more smoothly. It supports 120m over single cat5e/6 cable at point to point, as well as point to many and many to many over Ethernet switch. The over IP solution is widely used in various locations, like meeting room, class room, metro, airport, home, mall advertisement...etc.
*****NOTE - This is the Transmitter only. At least one Receiver is needed to work with the Transmitter. See here for the Receiver or the complete set here BL-EP36.
Package Contents:
- 1x Transmitter
- 1x IR-TX cable
- 1x Manual
- 2x screws
- 2x detachable mounting ears
- 1x Phoenix plugs for RS232 cable termination
- 1x Remote controller
- 1x Power adapter 5V 1A
TX Panel Description:
- DC 5V 1A input
- Green indicator of data status
- Red indicator of power input
- HDMI output for local display
- HDMI input
- Green indicator of data status
- IR-TX
- RS232 port
- IR-Ext
- LED to show the Group ID
- Press the button for the previous Group ID
- Press the button for the next Group ID
- Reset button
RX Panel Description:
- DC 5V 1A input
- Green indicator of data status
- Red indicator of power input
- HDMI output
- CAT5e/6 input
- IR-RX
- RS232 port
- IR-Ext
- LED to show the Group ID
- Press the button for the previous Group ID
- Press the button for the next Group ID
- Reset button
Specifications:
| Performance | |
| Protocol | H.264 encoder over TCP/IP |
| Support Video format | 480i/480p/576i/576p/720p/1080i/1080p@60HZ |
| Support Audio format | LPCM, Audio sampling rate 48KHZ |
| Streaming Bit Rate | 15Mbps |
| HDCP | Compliant |
| IR Frequency | 38 -56 KHZ |
| RS232 Baud rate | Default 2400bps, total 8 kinds optional |
| IP setting &Group ID setting | |
| Default IP | TX: 192.168.1.11 ; RX: 192.168.1.12 |
| Group ID | Group 00 ~ group 63 |
| Request for Switch/Router | Support IGMP, support DHCP |
| Connectors on Transmitter | |
| Input | 1xHDMI Female port |
| Output | 1x RJ45 output , 1x HDMI looping output |
| RS232 | Phoenix RS232 port |
| IR | IR TX port (Support 38K-56KHz) |
| IR Ext port (Support 38KHz) | |
| Connectors on Receiver | |
| Input | 1xRJ45 input |
| Output | 1x HDMI Female port looping output |
| RS232 | Phoenix RS232 port |
| IR | IR RX port (Support 38K-56KHz) |
| IR Ext port (Support 38KHz) | |
| Environmental & Power Requirements | |
| Operating temperature | -5 to +35 ? ?+23 to +95?? |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Power supply | DC 5V 1A |
| Power consumption | Max 3 watt |
| Physical | |
| Dimension | TX: 119x79.5x28mm ; RX: 119x79.5x28mm |
| Net Weight | TX: 0.28KG ; RX:0.28KG |
CONNECTION:
ONE TO ONE
ONE TO MANY

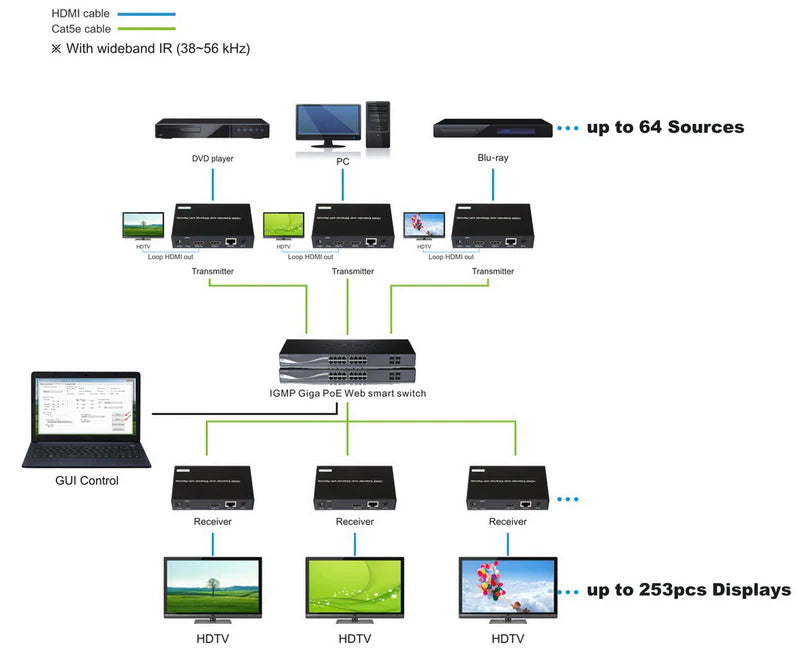

MANY TO MANY
