Features

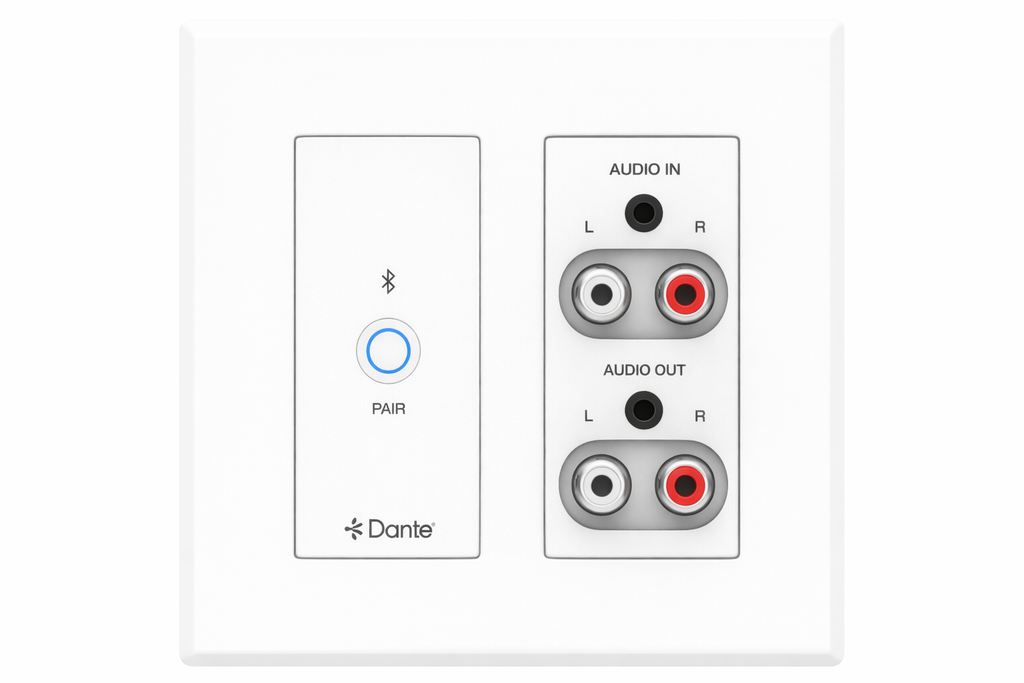

- 2×2 channel Dante® wall plate interface supporting Bluetooth® and analog RCA or 3.5mm audio inputs (US 2-Gang format)
- Simultaneous RCA and 3.5mm analog audio outputs
- Configurable Bluetooth® device naming for simplified discovery and pairing
- Selectable input source switching between Bluetooth®, RCA, and 3.5mm inputs
- Adjustable analog input sensitivity (+24dBu, +4dBu, 0dBu, -10dBV, -28dBV) via control software
- Adjustable analog output gain (+18dBu, +4dBu, 0dBu, 0dBV, -10dBV) via control software
- Bluetooth® supports connection of up to two devices simultaneously
- Bluetooth® volume control (0–16 range) with track control (previous/next/pause) and album information display
- Firmware upgrade support via USB-C port
- Dante® audio support at 44.1 / 48 / 88.2 / 96 kHz with 16, 24, or 32-bit resolution
- Configurable Dante® device latency (2 ms, 5 ms, or 10 ms) via Dante® Controller
- AES67 RTP audio transport support for expanded network interoperability
- Class 0 IEEE 802.3af PoE powered or local 12V DC power supply option (adapter not included)
- Front panel button, TCP/IP, and Web GUI control interfaces
TECHNICAL
| Converter Type: 2x2 channel Bluetooth / RCA / 3.5mm to Dante® wall plate (US |
| 2-Gang) |
| Audio Inputs: Bluetooth or analog RCA or 3.5mm (switchable) |
| Audio Outputs: RCA and 3.5mm simultaneous |
| Bluetooth: Configurable naming - supports 2 paired devices |
| Bluetooth: Controls Volume (0-16), previous / next, pause, album info display |
| Bluetooth: Upgrade Upgradeable via USB-C |
| Analog Input Sensitivity: +24dBu / +4dBu / 0dBu / -10dBV / -28dBV (software selectable) |
| Output Gain: +18dBu / +4dBu / 0dBu / 0dBV / -10dBV (software selectable) |
| Sample Rates: 44.1kHz / 48kHz / 88.2kHz / 96kHz |
| Bit Depth: 16-bit / 24-bit / 32-bit |
| Latency: 2ms / 5ms / 10ms (configurable via Dante® Controller) |
| AES67 Support: Yes - RTP audio transport |
| Control: Front panel button / TCP-IP / Web GUI |
NETWORK / CONTROL
| Audio Networking: Dante® / AES67 |
| Configuration: Dante® Controller |
| Ethernet: RJ-45 - 100Mbps |
POWER
| Power over Ethernet: IEEE 802.3af PoE - Class 0 |
| DC Power Input: 12V DC (adapter not included) |
MECHANICAL
| Housing: Metal Enclosure |
| Form Factor: US 2-Gang wall plate (Decora style) |
| Color: White |
| Dimensions: 114mm (H) x 114mm (W) x 45mm (D) |
| Weight: 360g |
| Power Supply: PoE (IEEE 802.3af) or 12V DC |
| Power Consumption: ≤4W |
| Operating Temperature: 0°C - 40°C | 32°F - 104°F |
| Storage Temperature: -20°C - 60°C | -4°F - 140°F |
| Relative Humidity: 20% - 90% RH (non-condensing) |
