Key Features
- 108" Diagonal Display (7.87' × 4.43')
- Ultra-Fine 0.78mm Pixel Pitch COB LED Technology
- 3/4 4K Resolution (3072 × 1728) with 5.31 Million Pixels
- Advanced COB Protection for Enhanced Durability
- NovaStar H2 Video Wall Controller Included
- 600 Nits Brightness with 3840Hz Refresh Rate
- Seamless, Line-Free Interlocking Cabinet Design
- Slim 1.59" (40.5mm) Cabinet Depth
- Standard 16:9 Aspect Ratio
- Wide Viewing Distance Range: 6'–165'
- 100% Front-Serviceable Modules with Included Service Tool
- 5% Spare Parts Package Included
- Backed by a 4-Year Warranty
Module Specifications
| Pixel Pitch: 0.78mm |
| LED Type: COB (Chip-on-Board) |
| LED Packaging: TOP |
| LED Configuration: 1R1G1B |
| Module Size: 150 × 168.75mm (W×H) |
| Module Weight: 0.14kg±0.1 |
| Module Resolution: 192×216 pixels (W×H) |
| Scanning Mode: 72S |
| Drive Mode: Constant Current Driving |
Cabinet Specifications

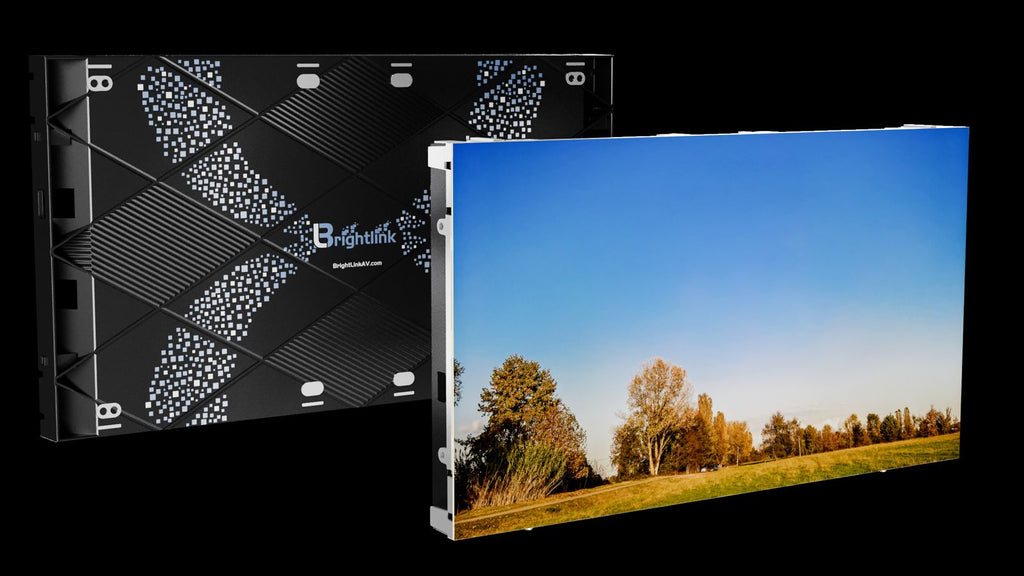

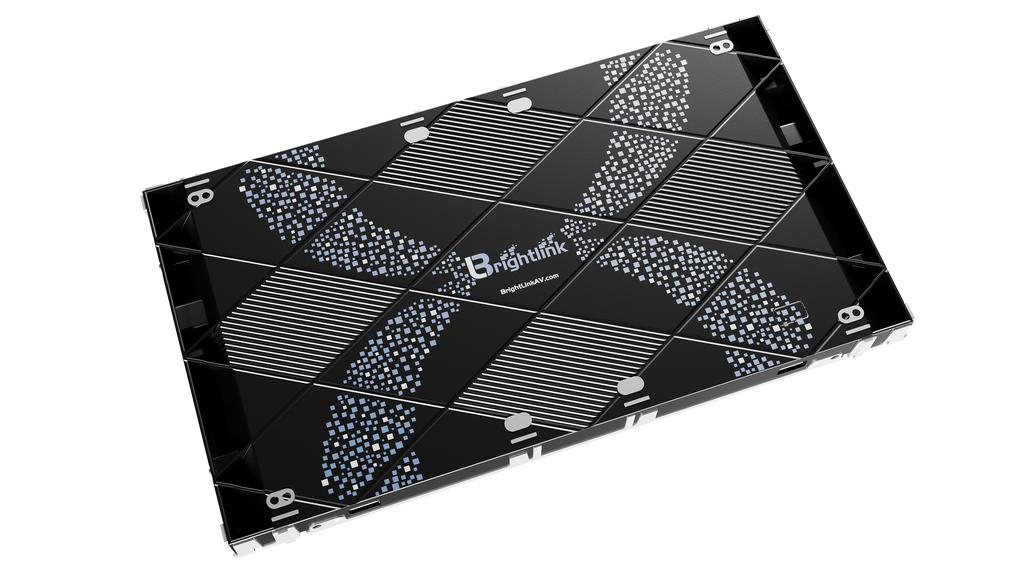

| Cabinet Size: 600 × 337.5 × 40.5mm (W×H×D) |
| Cabinet Size: (Imperial) 23.62" × 13.28" × 1.59" |
| Cabinet Thickness with Module: 43mm (1.69") |
| Cabinet Weight: ≤4.3Kg (9.48 lbs) |
| Cabinet Resolution: 768 x 432 pixels |
| Cabinet Material: Die-Cast Aluminum |
| Modules per Cabinet: 8 units (4 wide × 2 high) |
| Service Access: 100% Front Serviceable |
| Installation Type: Wall Mount, Stacking, Hanging |
| Protection Level: IP34 |
Screen Specifications
| Screen Dimensions: 2.4m × 1.3m (7.87' × 4.43') |
| Screen Diagonal: 108" |
| Total Screen Area: 3.12m² (34.86 sq.ft.) |
| Cabinet Quantity: 16 Cabinets (4 wide × 4 high) |
| Screen Resolution: 3072 × 1728 (Near 4K) |
| Total Pixels: 5,315,328 |
| Aspect Ratio: 16:9 |
| Refresh Rate: ≥3840Hz |
| Frame Rate: 50/60Hz |
| White balance brightness: 200-600CD/㎡ (adjustable) |
| Contrast Ratio: ≥8000:1 |
| Colors: 281 Trillion |
| Gray Scale: 16-bit |
| Color Temperature: 3000K–9300K Adjustable |
| Luminance Uniformity: ≥97% |
| Single Point Chromaticity Correction: Support |
| Viewing Angle: 160° H / 160° V |
Electrical & Connectivity Specifications
| Input Voltage: AC 100–240V, 50/60Hz |
| Module input voltage: DC 4.1V - 4.3V |
| Peak Power Consumption: ≤350W/m² |
| Average Power Consumption: ≤105W/m² |
| Power Interface: Three-Pole Flat Connector |
| Signal Interface: RJ45 Ethernet |
| Control Mode: Synchronous / Asynchronous |
| Receiver Card: A5s pro |

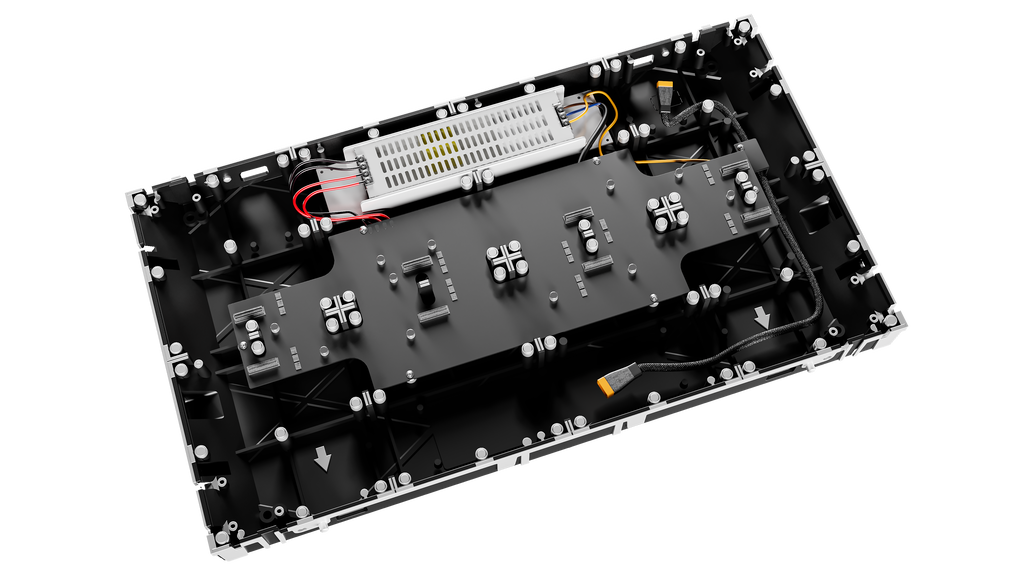

| Cabinet Electronics: Hub board + Receiving Card + Power Supply |
Environmental & Durability Specifications
| Operating Temperature: -10°C to +40°C (14°F to 104°F) |
| Storage Temperature: -10°C to +55°C (14°F to 131°F) |
| Operating Humidity: 10–90% RH (Non-Condensing) |
| Storage Humidity: 10–85% RH (Non-Condensing) |
| Lifespan: ≥100,000 Hours |
| MTBF: ≥10,000 Hours |
| Certifications: CE/ROHS |
| Waterproof Modules: Yes (Sealed COB Surface) |
| Dustproof: Yes |
| Anti-Oxidation: Yes |
| Anti-Static: Yes |
| Anti-Impact: Yes (COB Protective Layer) |
NovaStar H2 Video Wall Controller
| The NovaStar H2 is a powerful all-in-one LED video wall controller designed for high-performance, stable, and flexible display management. Engineered for fine-pitch LED systems like the Brightlink COB Video Wall, it delivers smooth processing, precise image scaling, and reliable real-time performance. |
| With advanced signal handling and simple integration, the H2 ensures seamless playback across large-format LED installations while maintaining exceptional image clarity and synchronization. Its streamlined architecture reduces system complexity, making setup faster and more efficient for professional AV environments. |
| Ideal for corporate, retail, broadcast, and live event applications, the NovaStar H2 provides the stability and control needed for demanding 24/7 LED video wall operations. |
Your Configuration Includes
| 4x Full HD 1080p Inputs (1ea H 4xHDMl input card) |
| 16× CAT6 Ethernet outputs (1×16-port cards) |
| 2X Full UHD 4k Inputs (1ea H_2x HDM2 .0 input card) |
