Transparent LED. Maximum impact.
The BLAV Phantom Series is a professional transparent outdoor rental LED platform designed for concerts, festivals, touring productions, experiential events and creative architectural displays. Its lightweight modular cabinet system combines 50% transparency with high outdoor brightness, smooth high-speed camera performance and flexible rigging options.
Why choose the Phantom Series?

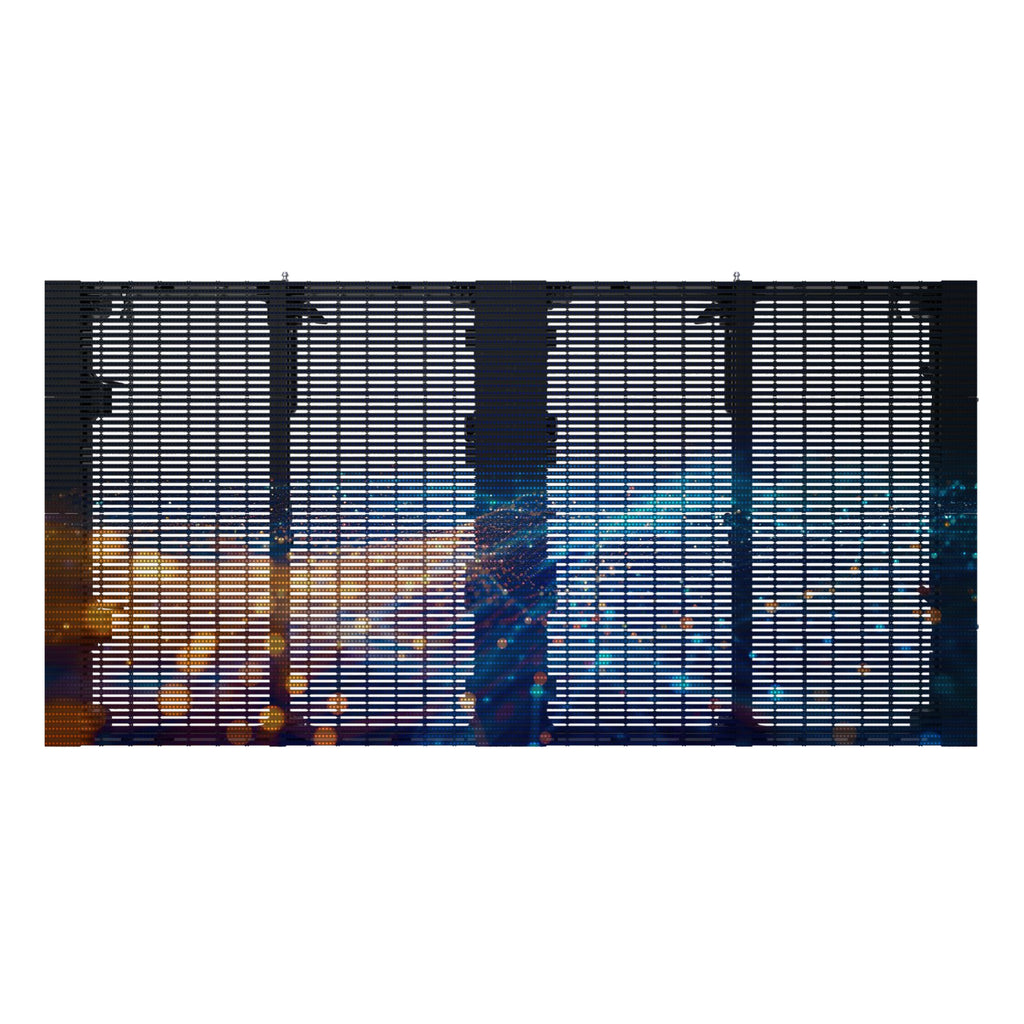

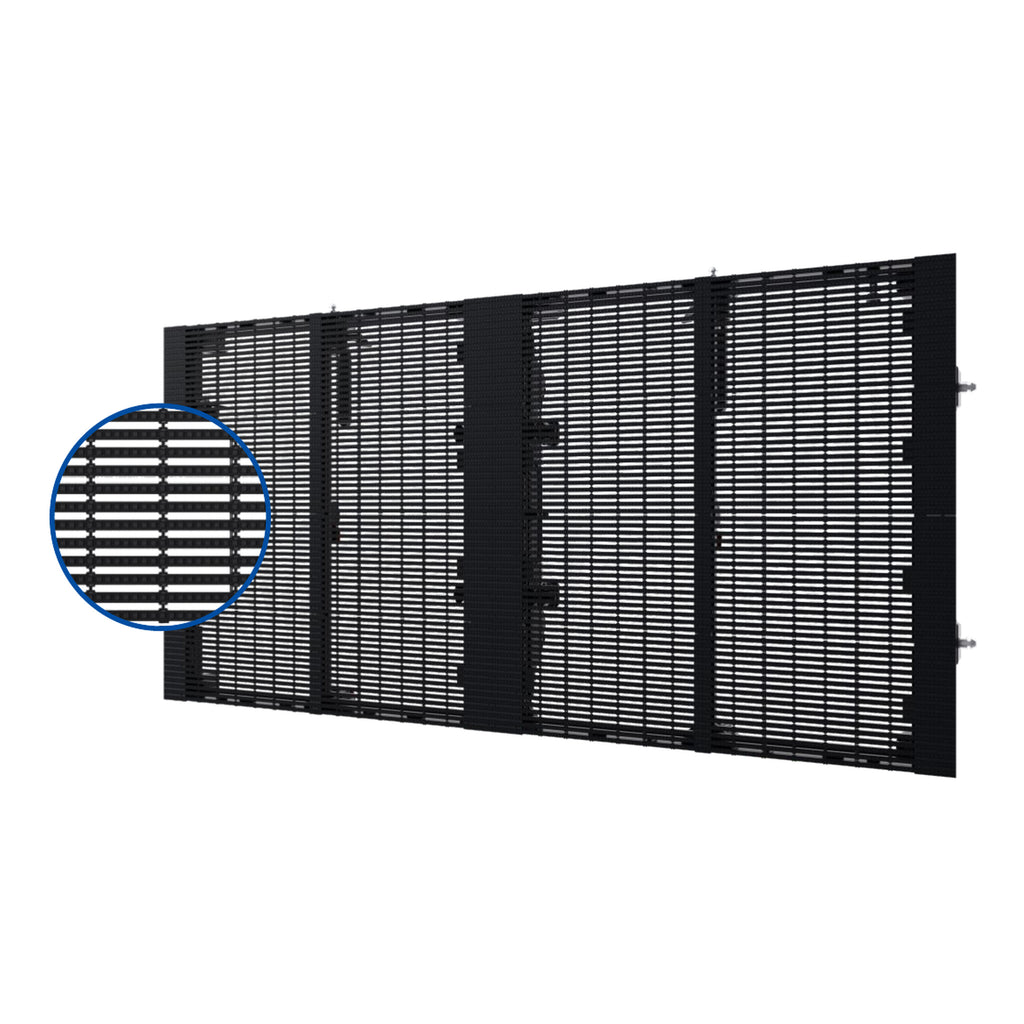

- 50% transparency: Create dramatic visual effects while preserving sightlines, airflow and open-stage design.
- Up to 7,000 nits: Multiple LED configurations support daylight-visible outdoor applications.
- 7,680 Hz refresh rate: Smooth motion and camera-friendly performance for live production and broadcast capture.

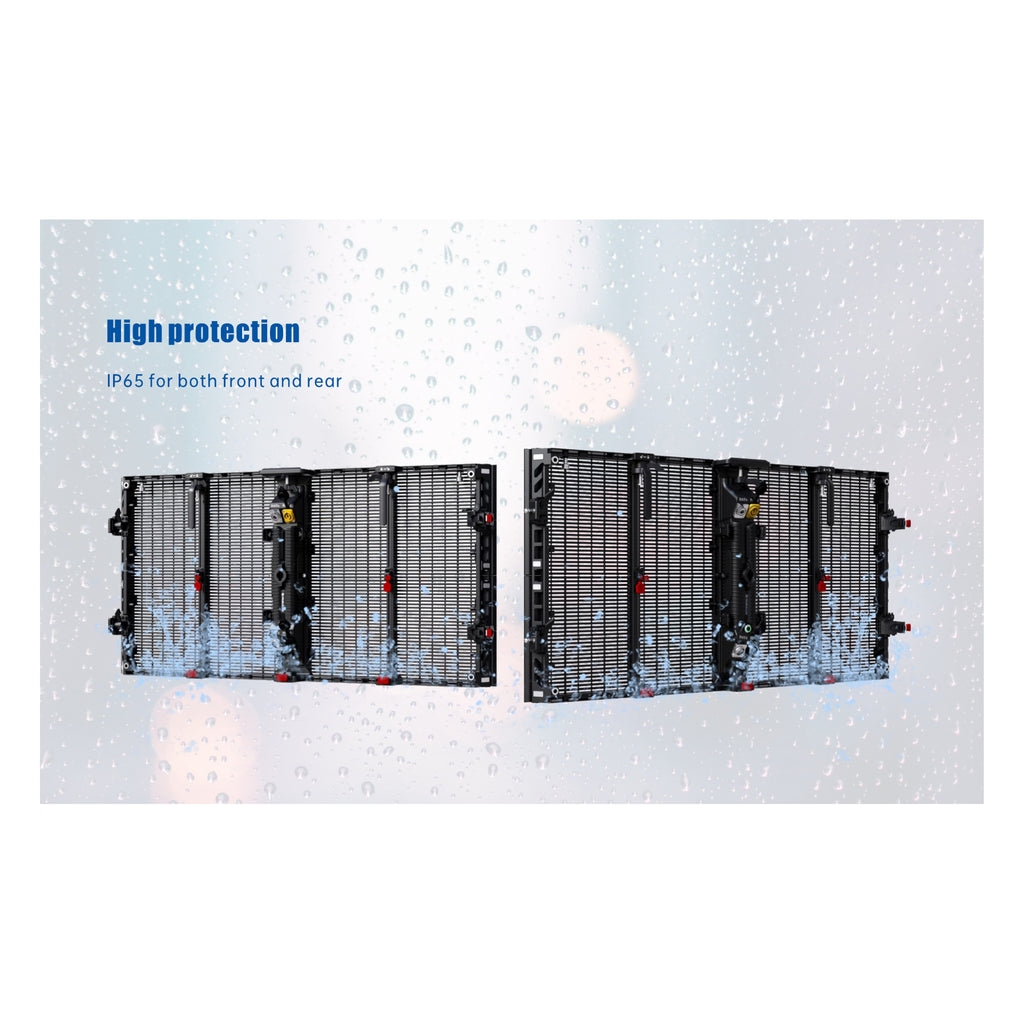

- IP65 outdoor protection: Front and rear weather protection for demanding event environments.

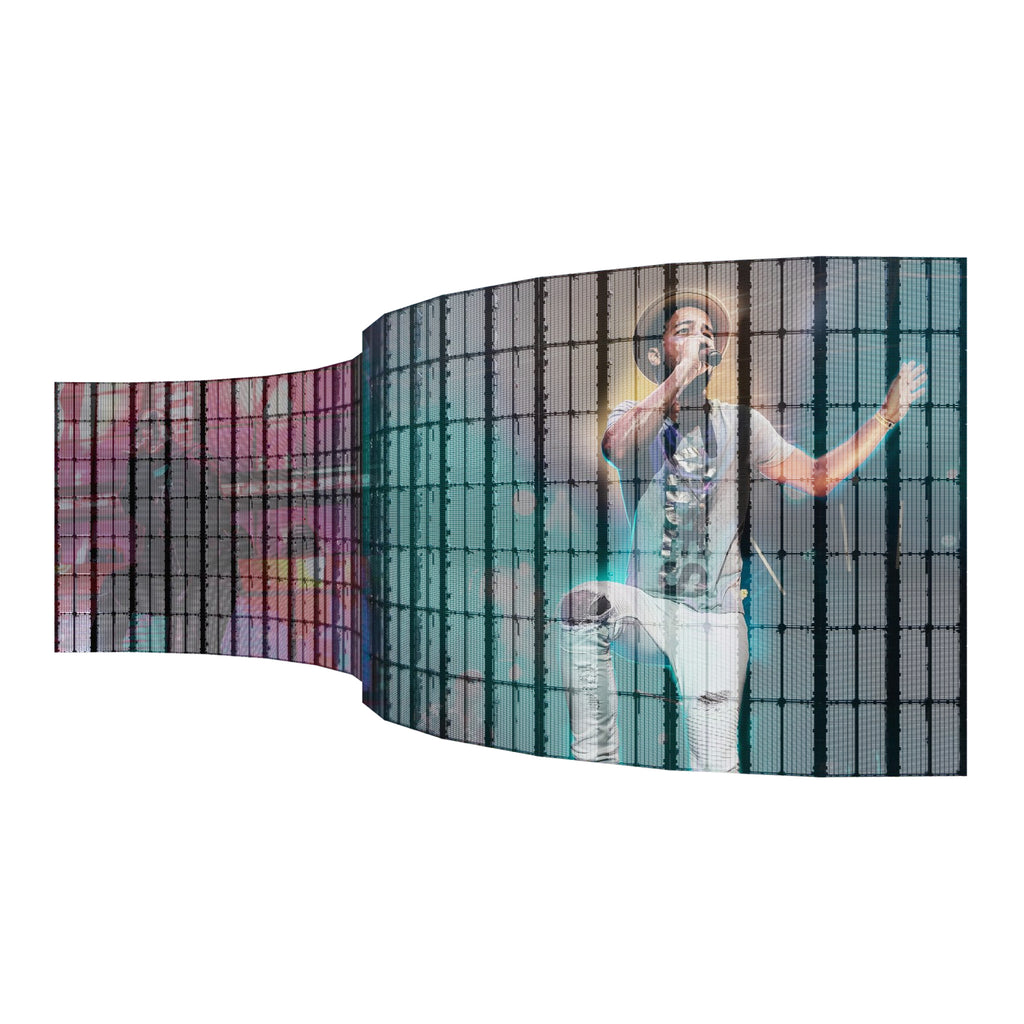

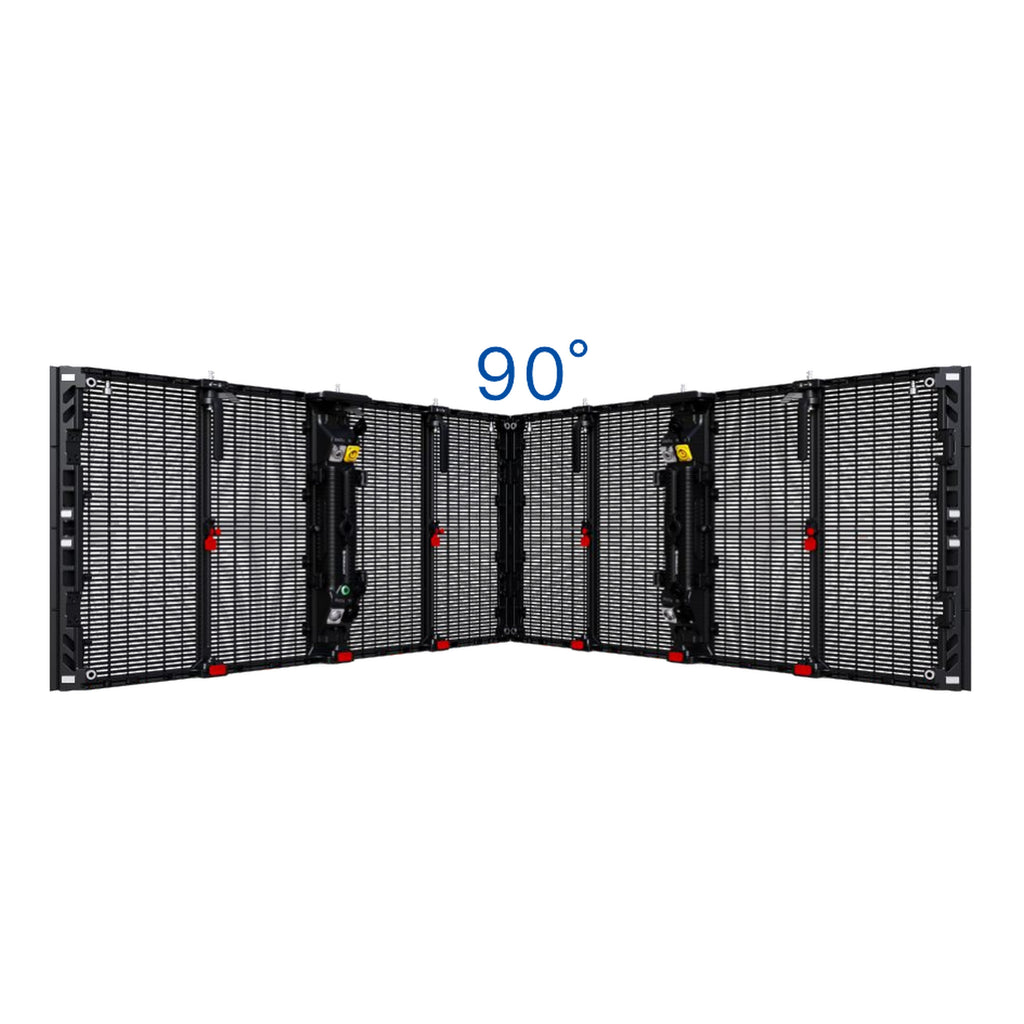

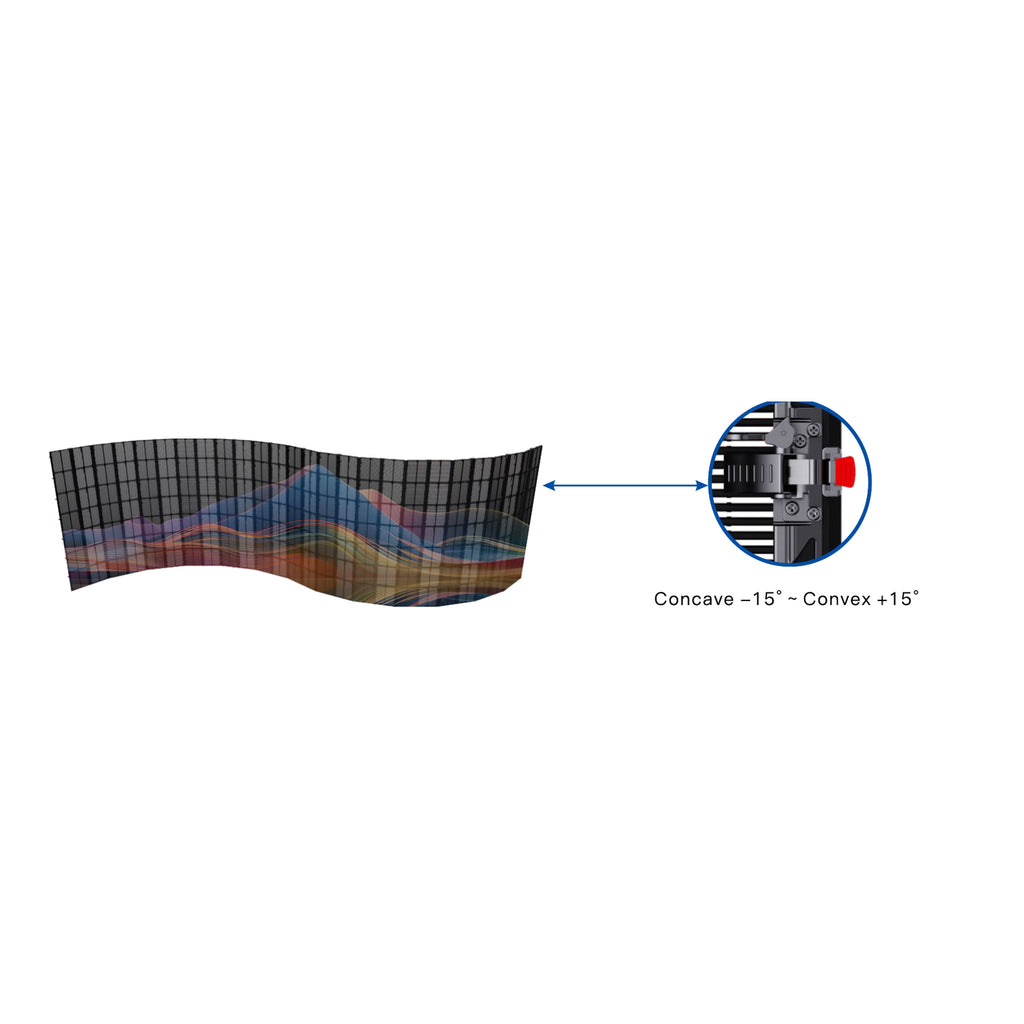

- Creative configurations: Supports concave and convex curves from -15° to +15°, plus 90-degree corner layouts.

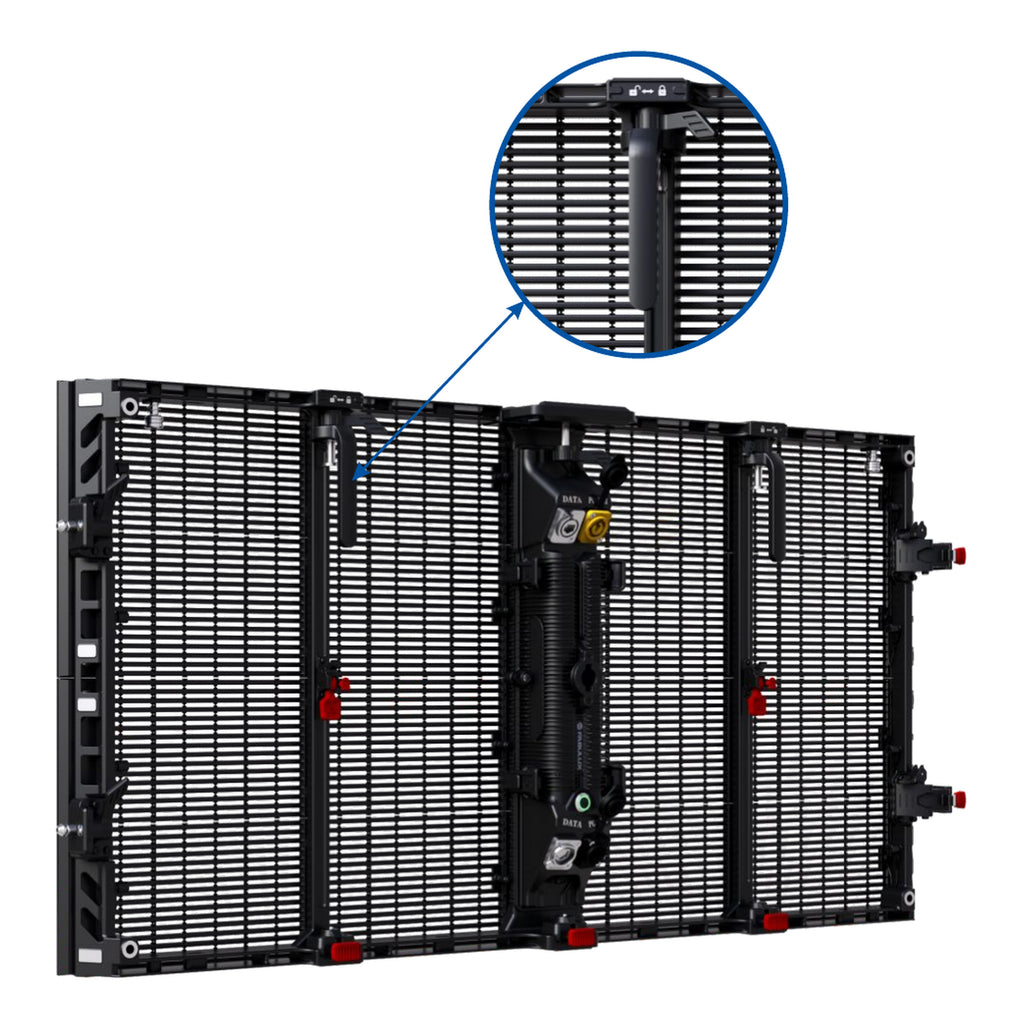

- Rental-ready construction: Lightweight 1000 x 500 mm and 500 x 500 mm cabinets with quick locks, integrated handles and hanging hardware.

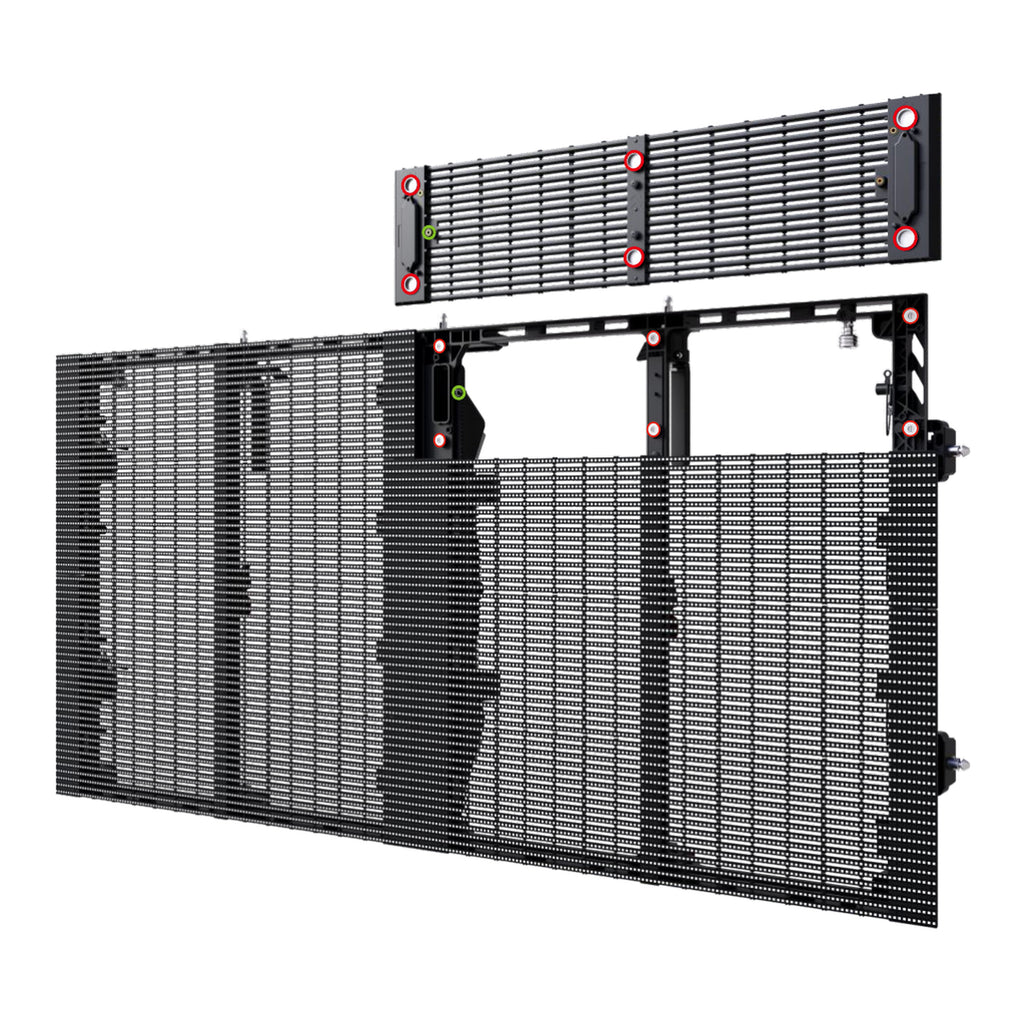

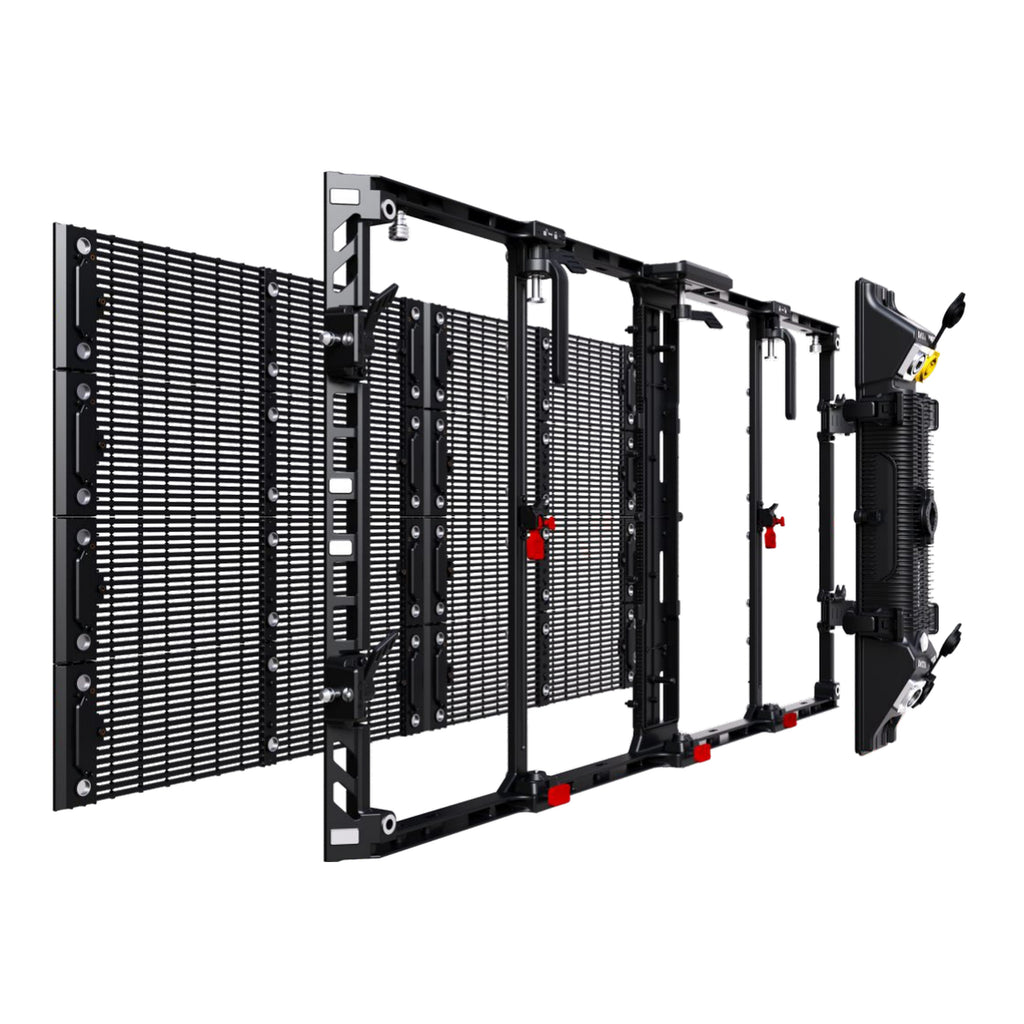

- Fast maintenance: Front and rear service access with magnetic-and-screw modular components.
Built for flexible staging

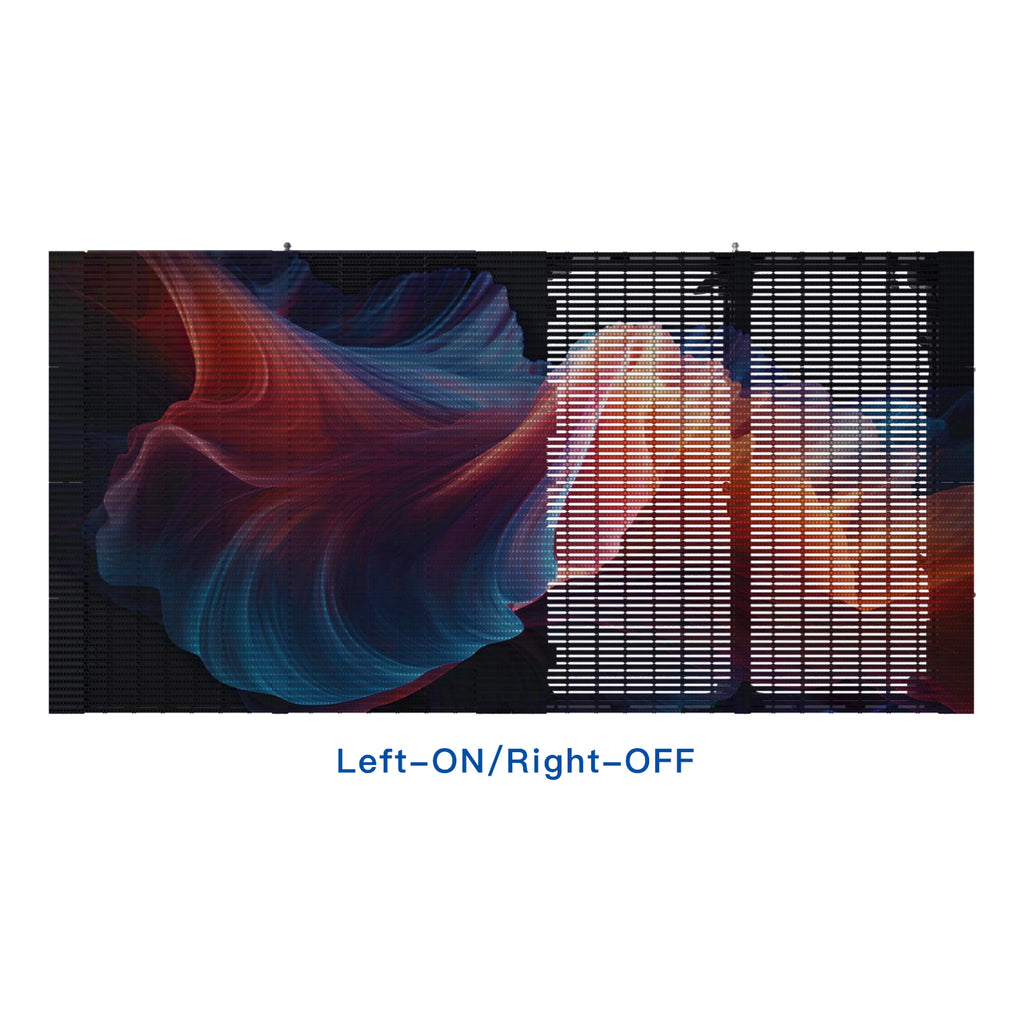

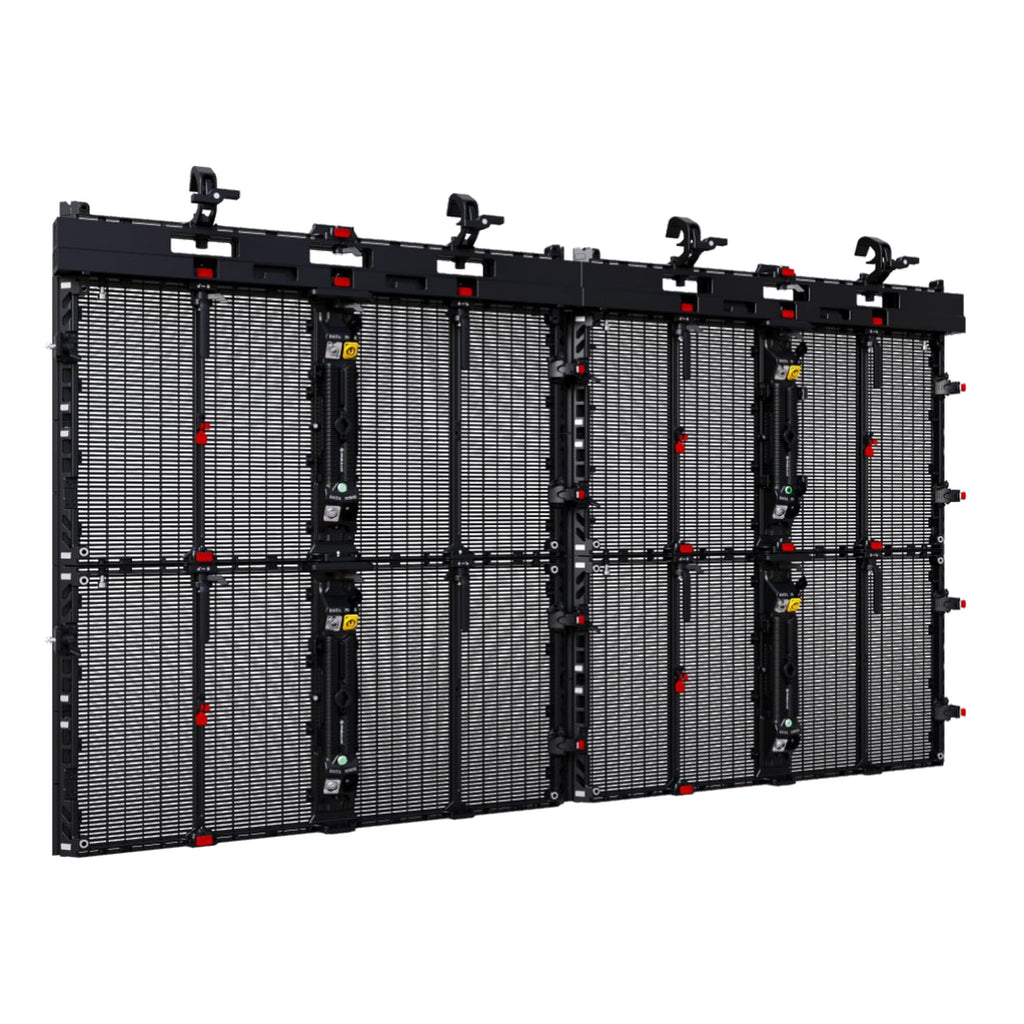

Use Phantom cabinets for flat walls, flowing curves, right-angle corners and suspended stage installations. The modular design makes it suitable for rental fleets and repeat deployment, while the shutter system provides a clear open-or-closed transparency effect.
Technical specifications
| Model | BLAV-PHANTOM-P3.9/7.8 |
|---|---|
| Pixel pitch | 3.9 / 7.8 mm |
| Pixel density | 32,768 dots/m² |
| Brightness | 3,000 to 7,000 nits, depending on LED configuration |
| Transparency | 50% |

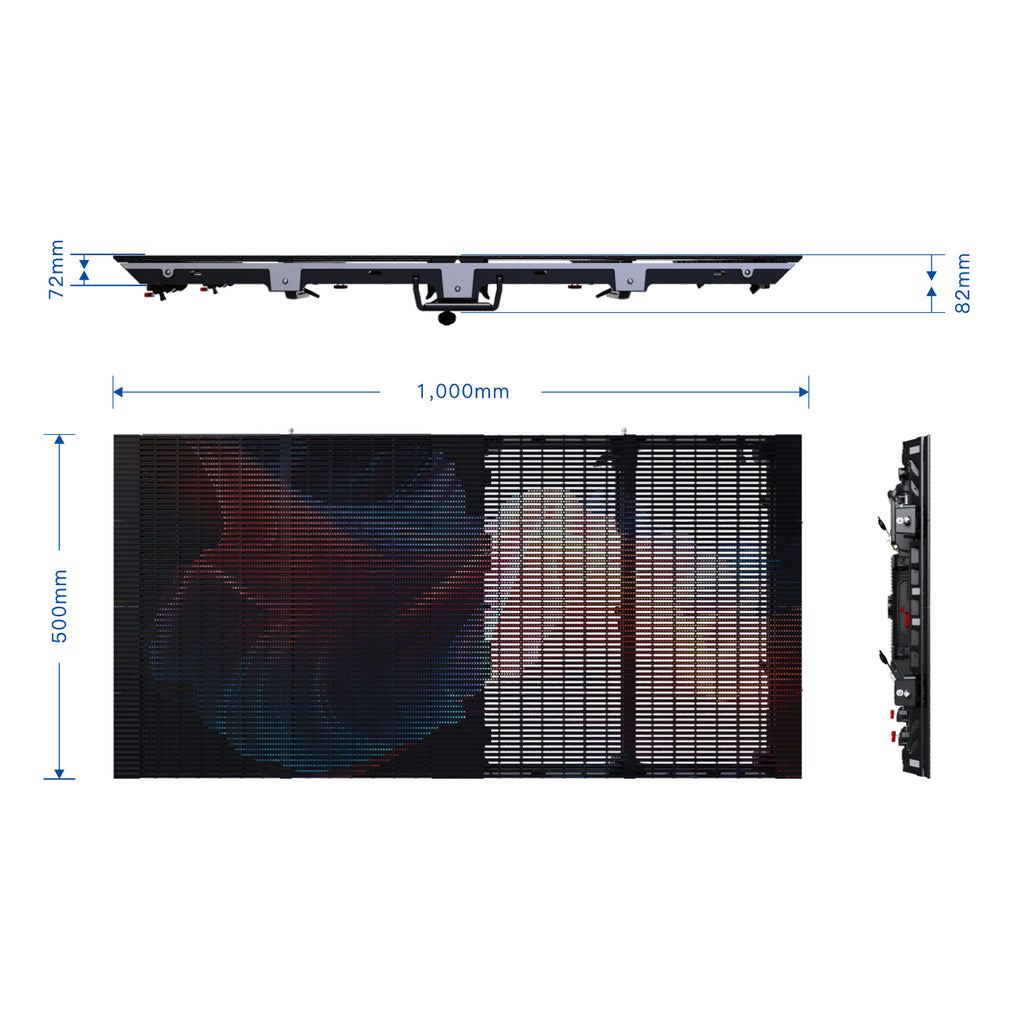

| Cabinet sizes | 1000 x 500 x 82 mm / 500 x 500 x 82 mm |
| Cabinet weight | 8 kg / 5 kg, depending on cabinet size |
| Module size | 500 x 125 x 14.5 mm |
| Refresh rate | 7,680 Hz |
| Grayscale | 14-bit |
| Viewing angle | 160° horizontal / 140° vertical |
| Curve range | Concave -15° to convex +15° |
| Ingress protection | IP65 |
| Service access | Front and rear |
| Power consumption | 512 W/m² maximum ±15%; 170 W/m² average ±15% |
| Input voltage | AC 100-220 V |
| Operating temperature | -20°C to +55°C |
| Maximum hanging height | 15 m* |
| Maximum stacking height | 16 m* |
| Certifications | CE (LVD, EMC), CB, ETL, FCC and RoHS |
*Final hanging and stacking limits depend on the complete configuration, rigging design, site conditions and applicable engineering requirements.
Ideal applications
- Concerts, festivals and touring productions
- Outdoor stages and live broadcast events
- Rental and staging inventories
- Trade shows, brand activations and experiential installations
- Creative curved, corner and architectural LED displays
Configured for your project
Phantom Series systems are quoted to match the required wall dimensions, viewing distance, brightness, video processing, rigging, power distribution, spare parts and shipping requirements. For pricing and system design, contact sales@brightlinkav.com or call 1-855-449-4733.
