P3.91
Pixel pitch
BLAV PHANTOM SERIES

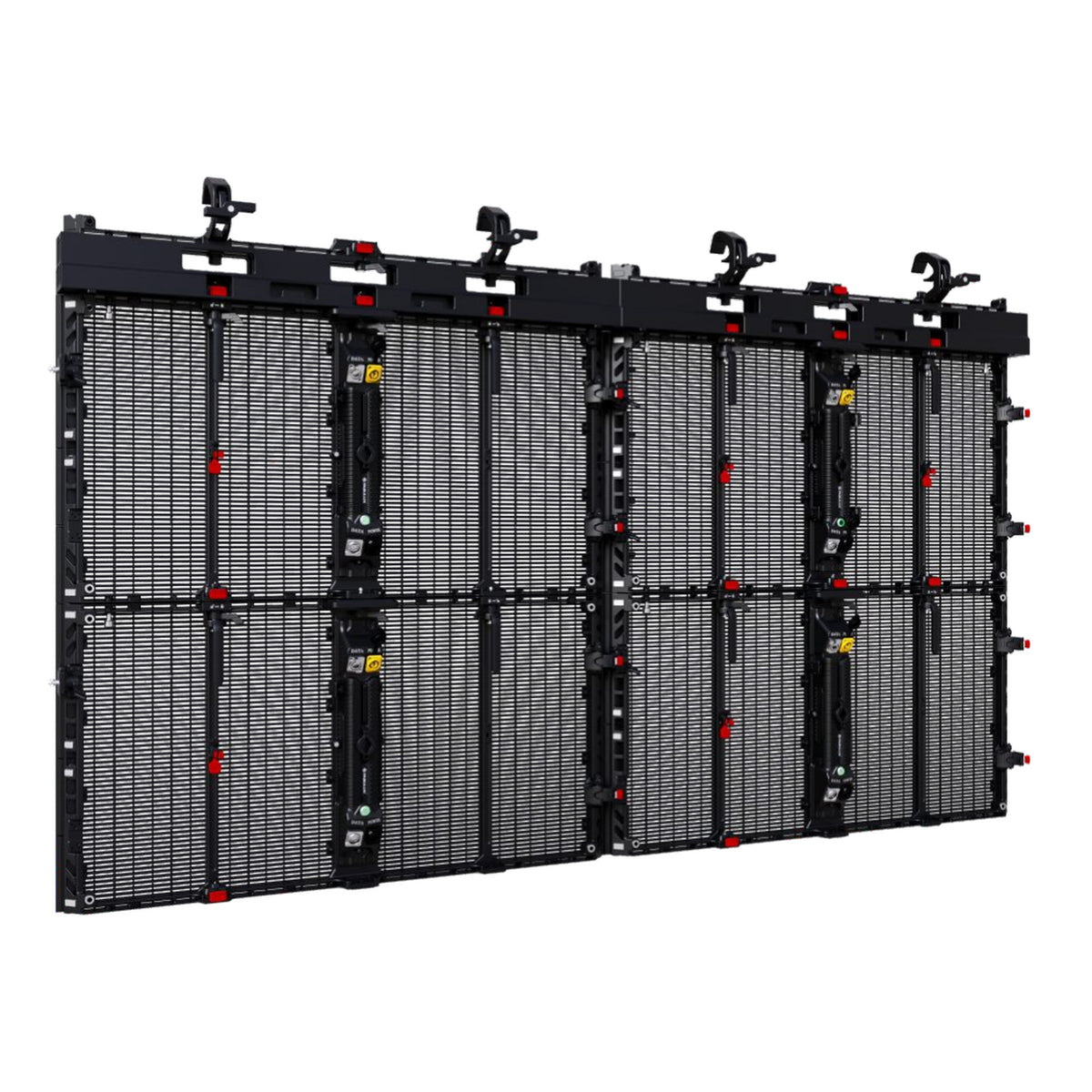

BLAV Phantom Series 3.5m wide x 2m high P3.91 Transparent Outdoor Rental LED Display
Transparent outdoor rental LED engineered for concerts, touring productions, experiential events and creative installations.
P3.91 mm
7,680 Hz
IP65SMD1921 black
3,000 nits
Configured to your wall size, processor, rigging, power and shipping requirements.
Watch the series
See the Phantom Series in action
7,680 Hz
Refresh rate
IP65
Front and rear
3,000 nits
Brightness
-15° / +15°
Concave and convex
15 m
Maximum hanging
Engineering specifications
Performance built for live production.
High brightness, camera-ready refresh performance, outdoor protection and a lightweight modular architecture combine in one creative rental LED platform.
- Series
- BLAV Phantom
- Pixel pitch
- 3.91 mm
- LED type
- SMD1921 black
- Brightness
- 3,000 nits
- Pixel density
- 65,536 pixels/m²
- Display size (W × H)
- 3.5 × 2 m
- Imperial size (approx.)
- 11.48 × 6.56 ft
- Diagonal (approx.)
- 158.7 inches
- Display area
- 7.0 m²
- Native resolution
- 896 × 512 pixels
- Total pixels
- 458752
- Cabinet layout
- 4 columns × 4 rows
- 1000 × 500 mm cabinets
- 12
- 500 × 500 mm cabinets
- 4
- Total display cabinets
- 16
- Half-width column
- One 500 mm-wide column
- Main cabinet (W × H)
- 1000 × 500 mm
- Main cabinet resolution
- 256 × 128 pixels
- Half cabinet (W × H)
- 500 × 500 mm
- Half cabinet resolution
- 128 × 128 pixels
- Refresh rate
- 7,680 Hz
- Cabinet depth
- 82 mm
- Module size
- 500 × 125 × 14.5 mm
- Grayscale
- 14-bit
- Viewing angle
- 160° H / 140° V
- Curve range
- −15° concave to +15° convex
- Ingress protection
- IP65 front and rear
- Service access
- Front and rear
- Input voltage
- AC 100–220 V
- Operating range
- −20°C to +55°C
Dimensions describe a flat display. Cabinet counts exclude spare parts. Resolution is based on the nominal P3.91 configuration (3.90625 mm actual pitch).
Full product details
BLAV Phantom P3.91 LED Wall Package — 3.5 m × 2 m
Create a striking visual backdrop for concerts, events and live productions with the BLAV Phantom Series. This 7 m² outdoor rental LED wall features P3.91 pixel pitch, SMD1921 black LEDs and 3,000-nit brightness, with a NovaStar VX400 Pro video processor included.
Display configuration
-
Display size: 3.5 m wide × 2 m high
-
Approximate size: 11.48 ft wide × 6.56 ft high
-
Native resolution: 896 × 512 pixels
-
Total pixels: 458,752
-
Cabinet layout: 4 columns × 4 rows
-
Cabinet quantity: 16
-
Main cabinets: 12 × 1,000 mm wide × 500 mm high
-
Half-width cabinets: 4 × 500 mm wide × 500 mm high, forming one column
-
Pixel pitch: 3.91 mm
-
LED type: SMD1921 black
-
Brightness: 3,000 nits
Package includes
-
12 full-width LED cabinets and 4 half-width
Ready for your next production
Package includes
- BLAV Phantom P3.91 LED display — 3.5 × 2 m
- 4-year limited parts warranty
- 5% spare-parts package
- Protective flight cases
- Hanging bars
Plan your installation
Drawings & downloads
Built around your project
Let’s configure your Phantom system.
Tell us the wall dimensions, venue, viewing distance and installation style. BLAV can help configure the cabinets, processing, rigging, power distribution, spares and shipping.
