Description
FEATURES MATRIX (BL4X4-HD20-A):
- HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
- Support Dolby True HD and DTS-HD master audio
- 4xHDMI Input, 4xHDMI output with 4xSPDIF Audio
- Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control
- Support HDR10
- Bandwidth upto 18Gbps
- HDCP2.2 input ,HDCP2.2 output

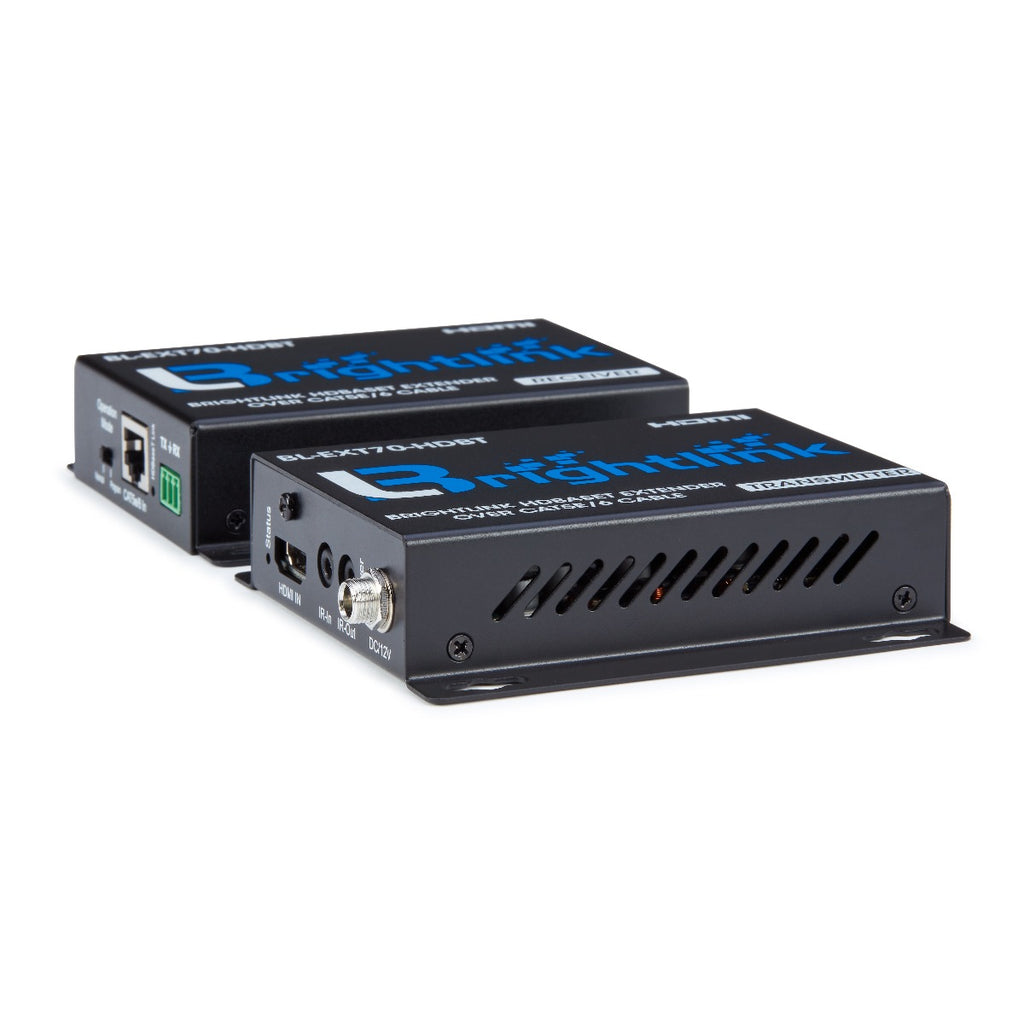

FEATURES EXTENDER ( BL-EXT70-HDBT-A):
- One pair is a fully functional module with no settings needed.
- Use single UTP/STP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission.
- UTP/STP cable termination follows the standard of IEEE-568B.
- Transmission distance reaches up to 228ft/ 70 meters under the video format of 1080P and 4K up to 130ft / 40 meters.
- POC (RX powered by TX)
- HDCP2.2/1.4 compliant.
- Full HD support: 1080p@60Hz@48b/pixels, 3D and 4Kx2K
- With LED indicators to show the power status.
- With ESD protection inside.
- Mounting ears supplied.
- Transfer Bidirectional Infrared control signal together with the HDMI signal.
- Phoenix RS232 Port for firmware update or RS232 control signal transmission.

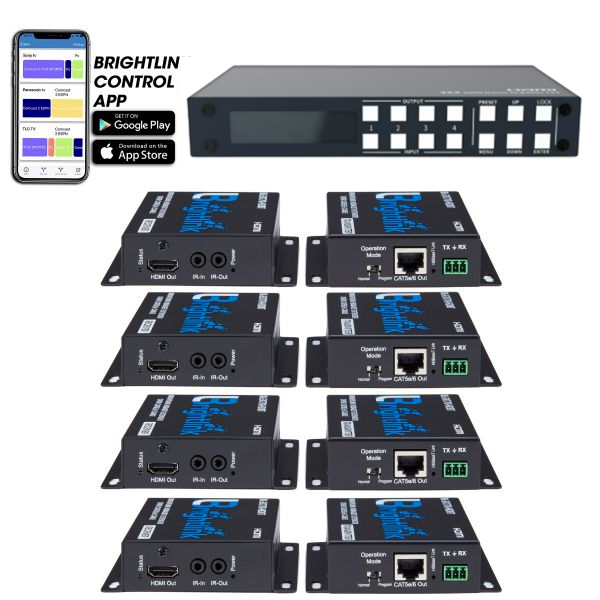

You are buying our Brightlink New 4x4 HDMI Matrix - Support 4K@60HZ 4:4:4, Downscaler (Model # BL-4X4-HD20-A) which comes with 1ea 4k 4X4 HDMI MATRIX (BL-4X4-HD20), & 4ea HDMI HDBaseT Extenders (BL-EXT70-HDBT) over a single Cat5e/6 cable with distances up to 228ft and features POE/POC (no power for receivers/baluns ***Transmitters have to be powered), two way IR, RS232 PC, remote and front panel control.
This Matrix set is the most is the most ecomomical way to get a True 4K 4X4 matrix at the same time extending your singal over cat6 upto 228ft. Set up involves connecting your sources to the matrix with standard HDMI cables, then running short HDMI cables from the outputs into the included extenders which allow you to now send your HDMI signal over signal cat 6 upto 228ft at 1080p and 130ft at 4k@60hz.
Brightlink’s 4X4 4Kx2K HDMI Matrix Switcher Set with Extenders is a a true matrix. It allows any 4 sources (Blue-Ray, HD DVD player, satellite receiver, game system, etc, to be routed to any one of your connent 4 HD displays in any configuration such as One to One, One to Many, or Many to Many.
This Brightlink’s 4X4 Matrix Set allows you to send any of your connected HD source to any of your connected displays up to 228ft away over a single Cat5e/6 cable, supporting 1080p Full HD up to 4Kx2K @ 60Hz plus all 3D formats, along with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master Audio™. Each source can be routed to any display using the front panel buttons, IR remote control, RS-232 control via PC, and TCP/IP control via PC.
This Brightlink New 4x4 HDMI Matrix - Support 4K@60HZ 4:4:4, Downscaler (Model # BL-4X4-HD20-A) with 4 HDMI Extenders over Cat5e/6, offers an easy to use HD video solution for Casinos, Sports Bars, Super Markets, Shopping Malls, Churches, Data Control Centre, Conference Rooms, Education and Training, Luxury Homes, Home Theatres or anywhere you need a solution for your multiple HD display set up.
FEATURES MATRIX (BL4X4-HD20):
4x4 HDMI Matrix – Connect up to four HDMI source devices and independently distribute any source to any of the four HDMI displays. Supports DTS-HD, Dolby TrueHD, 7.1ch digital audio and all other HDMI standard formats
HDMI 2.0 Standard – Up to 4K @60Hz YUV 4:4:4 8-bit, HDR (at 4K @60Hz YUV 4:2:0 10-bit), HDMI 2.0a, HDCP 2.2, 18Gbps. Supports audio extraction to S/PDIF Coaxial audio for each HDMI output to take advantage of speaker systems instead of built-in speakers on displays.
EDID Management – EDID learning from connected displays or choose from a wide selection of pre-programmed EDID settings to ensure the correct signal resolution is output from the sources, resulting in better picture quality.
Flexible Switching Options – 1) Push buttons, 2) IR remote, 3) RS-232 control, 4) IP control, 5) Web GUI control. Select sources for each display in a way that is most convenient to you.
FEATURES EXTENDER ( BL-EXT70-HDBT):
- One pair is a fully functional module with no settings needed.
- Use single UTP/STP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distance transmission.
- UTP/STP cable termination follows the standard of IEEE-568B.
- Transmission distance reaches up to 228ft/ 70 meters under the video format of 1080P and 4K up to 130ft / 40 meters.
- POC (RX powered by TX)
- HDCP2.2/1.4 compliant.
- Full HD support: 1080p@60Hz@48b/pixels, 3D and 4Kx2K
- With LED indicators to show the power status.
- With ESD protection inside.
- Mounting ears supplied.
- Transfer Bidirectional Infrared control signal together with the HDMI signal.
- Phoenix RS232 Port for firmware update or RS232 control signal transmission.
CONTROL OPTIONS:
- Front Panel Buttons
- HDCP1.4 input, HDCP1.4 output
- IR Remote Control
- TCP/IP Control via PC
- RS-232 Control via PC
- PC control Software (DOWNLOAD LINK)
PACKAGE CONTENTS MATRIX (BL-4X4-HD20):
- 1x HDMI Matrix
- 1x Mounting Kit
- 1x Remote control
- 1x IR Ext RX Cable
- 1x 5V DC power supply
- 1x Phoenix plugs for RS232 cable termination
- 1x CD for control software & user manual

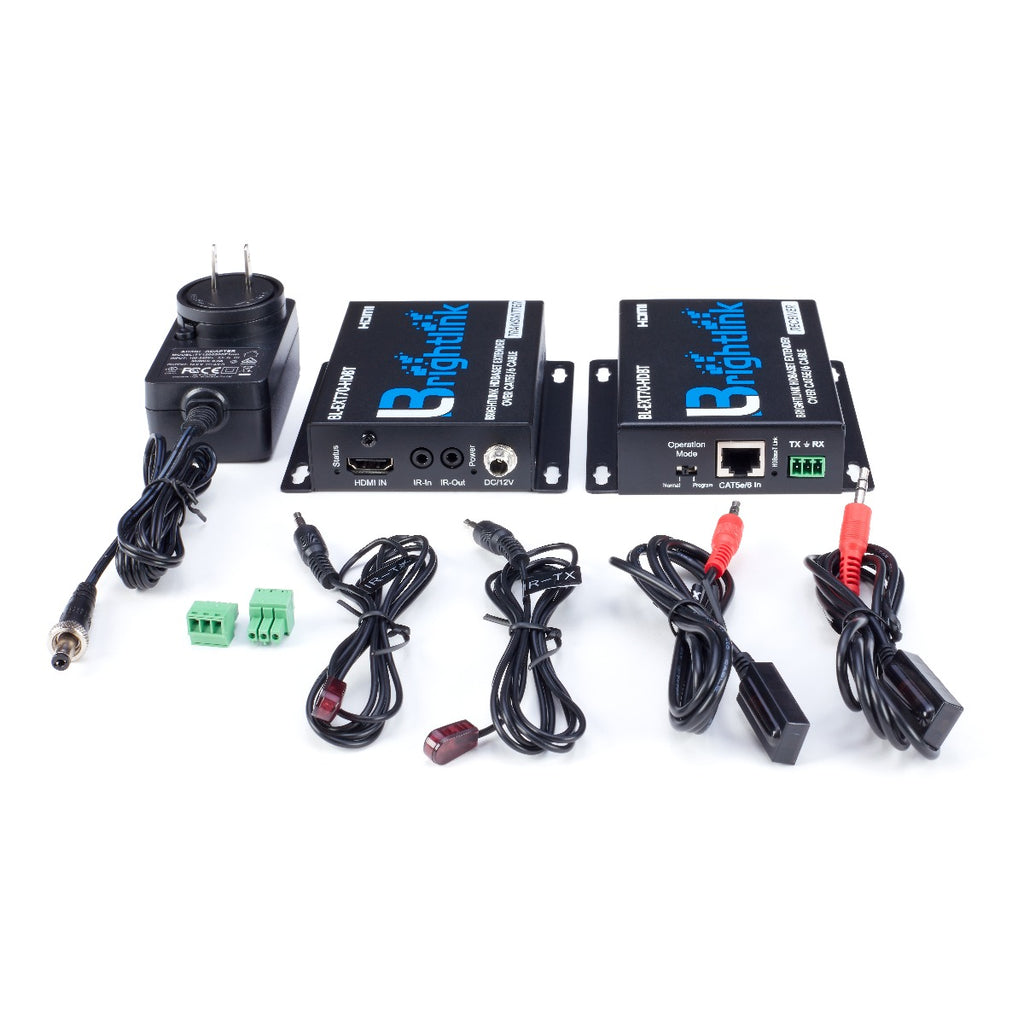

Package Contents EXTENDERS (BL-EXT70-HDBT):
- 8ea Main unit (BL-EXT70-HDBT).
- Operating instructions. (BL-EXT70-HDBT).
- 16ea IR TX unit. (IR emitter cable, 1 pcs for TX, 1 pcs for RX)
- 16ea IR RX unit. (IR receiver cable, 1 pcs for TX, 1pcs or for RX)
- 16 Phoenix plugs for RS232 cable termination NOTE: PART NUMBER (Abbreviation as P/N)
SPECIFICATIONS:
| Specifications | |
| Operating Temperature | 0℃to+40℃(+32℉to+104℉) |
| Operating Humidity | 5 to 90%RH(No Condensation) |
| Max resolution | 4K@ 60hz YUV4:4:4 |
| HDCP Compliant | HDCP2.2 and HDCP1.4 |
| Output Video | HDMI2.0 and HDMI 1.4 |
| Audio Format Supported | PCM2.0,Dolby True HD and DTS-HD master audio, LPCM7.1 |
| RS-232 serial port | 3PIN terminal block connectors |
| Ethernet port (IP control) | RJ45, female |
| IR Ext port | 1x3.5mm stereo jack |
| Bandwidth | 18 Gbps |
| Default IP | 192.168.1.168 |
| Rack-Mountable | Rack ears included |
| Dimensions(WxHxD) | L216.2XW128.5XH34mm |
| Net Weight | 0.47kg |
| Power consumption | 14W(Max) |
