- Fast and seamless switching technology
- Modular design allowing hot-swappable Input / Output cards to expand for your needs
- HDMI Input/Output: 144 x 144
- Supports many Input / Output types: VGA, DVI, HDMI, SDI, CVBS, YPBPR, Dual Link, DP, HDBaseT, and more. (For custom configurations, please contact our sales team)
- Supports N+1 redundant power supply structure with a high degree of stability; if a system failure occurs, emergency measures can be quickly taken to ensure the safe and stable operation of the system
- Customizable output resolution
- Support EDID management
- 3D splicing and smoothing technology
- Pixel-to-pixel slicing of multi-channel HD inputs
- Supports RS232 TCIP/IP
- Single port support of up to 8 images

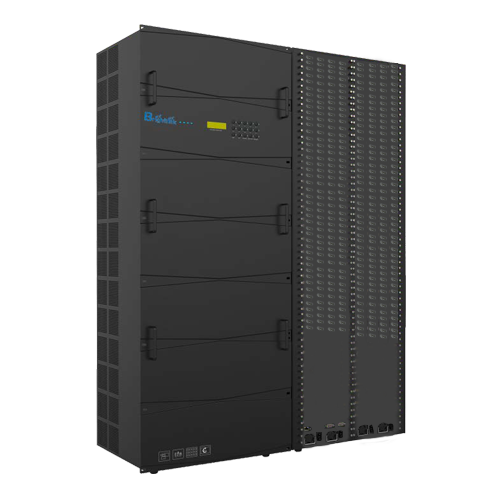

The Brightlink LED Video Wall Modular Controller 28U BL-MVP8000L 144 x 144 HDMI Input/Output is a high-end, multi-screen, multi-window, full HD image splicing and processing modular controller. This controllor is preset with 144 HDMI Inputs and 144 HDMI Outputs. It can handle multiple independent real-time images on multiple displays at the same time. It adopts a large-scale FPGA combined processing architecture and full-hardware design and combines high bandwidth video signal acquisition, real-time high-resolution digital image processing, two-dimensional high-order digital filtering, and other high-quality image processing technologies.
Our Modular LED Video Wall Controller has a powerful processing capability that guarantees incredible performance with real-time processing of all input video with no frame loss. It can support multiple types of analog or digital signal sources and input modes, such as VGA/RGB, YPBPR, CVBS, DVI/HDMI, HD-SDI/3G-SDI, and fiber optics, and can automatically detect signal input status and input image resolution.
The resulting output image is not just of an excellent image quality, but it also has a wealth of functions, such as dynamically adjusting window size, roaming window, and overlay window. Each input of the modular controller can be resized and repositioned in any part of the screen; consequently, the display mode is almost completely limitless.
The product is perfect for use in smart cities, smart campuses, smart agriculture, digital urban management, rail transit, combat-sport simulation command systems, education and teaching, medical services, science and technology exhibitions, and a variety of sporting and live concert events.
Please check out our full range of video wall equipment with availability for indoor and outdoor venues and fixed install or portable rental (purchase to rent out) options: Here
If you’re having trouble matching up your requirements to our listings, please feel free to contact Brightlink AV for a free consultation and recommendation from our friendly and knowledgeable sales team: Here
Shipping Time: 6 Week delivery
